Control Parts
| Item No. | Part No. | Description | Qty | Stocking Level |
|---|---|---|---|---|
| 1 | 140779 | Control board assembly | 1 | B |

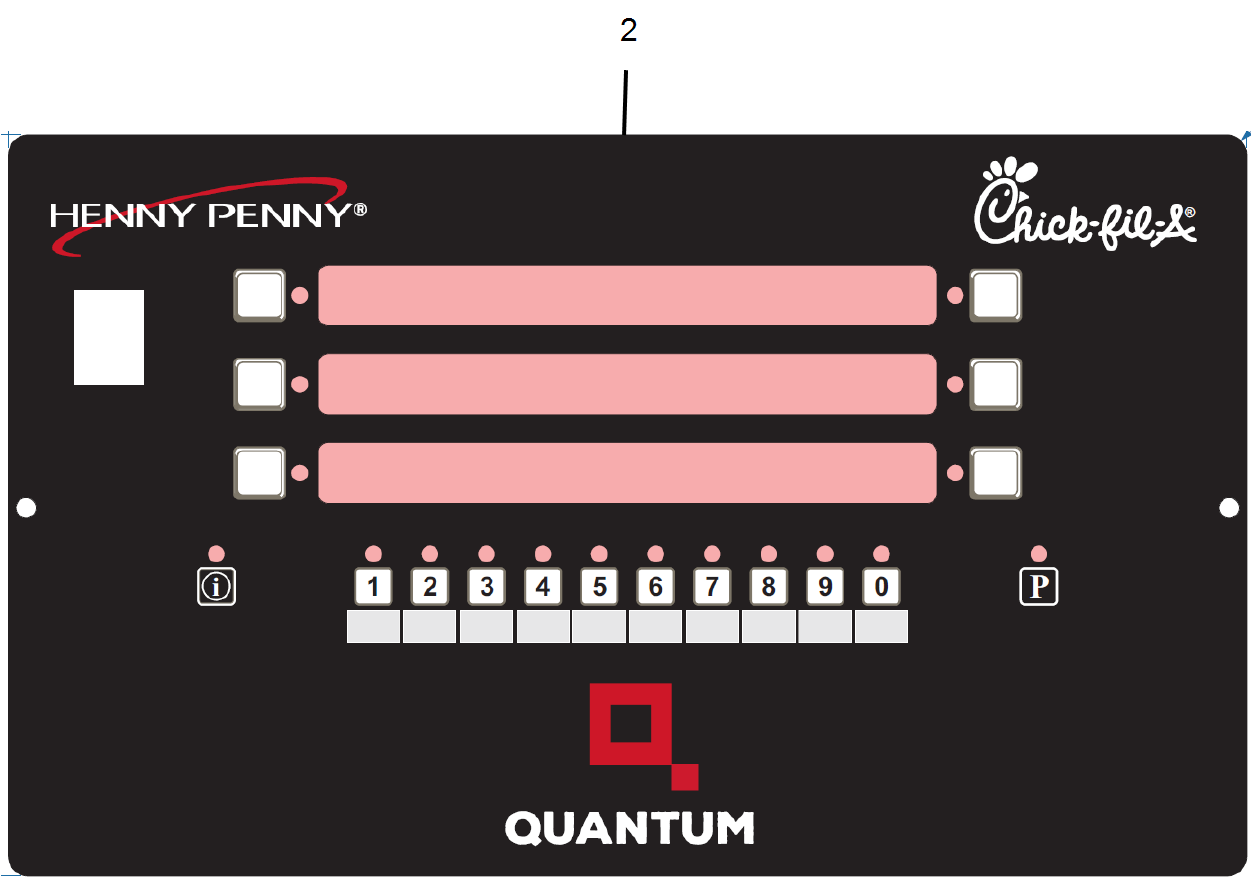

| 2 | 183081 | Control board decal | 1 | |
| 3* | 183052 | Menu card | 1 | |
| 4 | ME70-008 | Speaker | 2 | B |
| 5 | 155570 | Speaker bracket | 2 | |
| 6 | 173428 | Foam tape, 2 inch | 2 | |
| 7 | 52224 | Power switch, covered | 1 | A |
| 8 | 182339 | Control board rear cover | 1 | |
| 9 | SC01-006 |
Screw, #10-32 x 3/8 PH, THD (Control board mounting screw) |
2 | |
| 10* | 183683 | Control board shroud |
1 |
|
| 11* | SC03-005 |
Screw, #8 x 1/2 PH, PHD (Control board shroud screw) |
5 | |
| 12 | EF02-032 | Clamp, 5/16 in, 10 x 3/8 in | 1 | |
| 13* | NS02-005 |
Keps nut, #6-32, hex (Clamp nut) |
1 | |
|
Recommended Parts: A = Truck Stock; B = Dist. Stock * = Not Shown A/R = As Required |
||||
