Baskets and Return Faucet
Item No. | Part No. | Description | Qty. per Unit | Stocking Level | ||
|---|---|---|---|---|---|---|
| 321 | 322 | 323 | ||||
1 | 03629 | Vat cover | 1 | 2 | 3 |
|
| 1 | 03634 | Auto lift full vat cover | 1 | 2 | 3 | |
1 | 03632 | Split vat cover weld assembly | 1/vat | 1/vat | 1/vat |
|
1 | 03633 | Pot cover CFA 32X,Chick-fil-A | 1 | 2 | 3 |
|
2 | 65466 | 1/2 size basket, black, coated | 2 | 4 | 6 |
|
2 | N/A | 1/2 size basket, red, coated (No longer available) | 2 | 4 | 6 |
|
2 | 69085 | 1/2 size basket, F & R Hooks | 2 | 4 | 6 |
|
2 | N/A | 1/2 size reduced weight basket (No longer available) | 2 | 4 | 6 |
|
2 | 59078 | 1/3 size basket | 3 | 6 | 9 |
|
2 | N/A | 1/2 size tiered basket | 2 | 4 | 6 |
|
| 2 | 167394 | 1/2 size basket, Buffalo Wild Wings | 2 | 4 | 6 | |
3 | 60367 | High limit guard -S/N: 2501054 & before - OFG -S/N: BP2501020 & before - OGA -For bulb and cap style high limit | 1 | 2 | 3 |
|
| 3 | 186674 | High limit guard -S/N: BN201055 & after - OFG -S/N: BP2501021 & after - OGA -For electronic high limit | ||||
| * | 60424 | High limit mounting bracket (requires welding for installation) | 2 | 4 | 6 | |
4 | FP01-087 | Male elbow, 3/8 in | 1 | 1 | 1 |
|
5 | 17333 | Female disconnect | 1 | 1 | 1 | A |
6 | 17334 | Male disconnect | 1 | 1 | 1 | A |
7 | 70560 | Return oil faucet assembly, male, 11.875, 322, 323, 324 |
| 1 | 1 |
|
7 | 80065 | Return oil faucet assembly, male, 5.8, split, 321 | 1 |
|
|
|
7 | 78957 | Return oil faucet assembly, male, 8.25, split, 323 |
|
| 2 |
|
7 | 70425 | Return oil faucet assembly, female, 322, 323, 324 |
| 1 | 1 |
|
7* | 60611 | Upper return line assembly, 321 (SN: BN022JB & BELOW) (includes 17334) | 1 |
|
|
|
| 8 | 33104 | Fry basket support, electric | 1 | 2 | 3 | |
8 | 60120 | Fry basket support, gas | 1 | 2 | 3 |
|
8 | 77538 | Basket support grid, Raley’s |
| 2 |
|
|
8 | 78293 | Split vat rack | 1/vat | 1/vat | 1/vat |
|
| 8 | 33104 | Full vat rack | 1/vat | 1/vat | 1/vat | |
9 | 33824 | Full size fry basket | 1 | 2 | 3 |
|
10 | 32939 | Weight screen basket | 2 | 4 | 6 |
|
11* | 50715 | Nipple, 3/8 X 1-1/8 in | 1 | 1 | 1 |
|
12* | 82321 | Center well basket insert dump station |
|
| 1 |
|
13* | 48629 | Dump station drip shield | 1 | 1 | 1 |
|

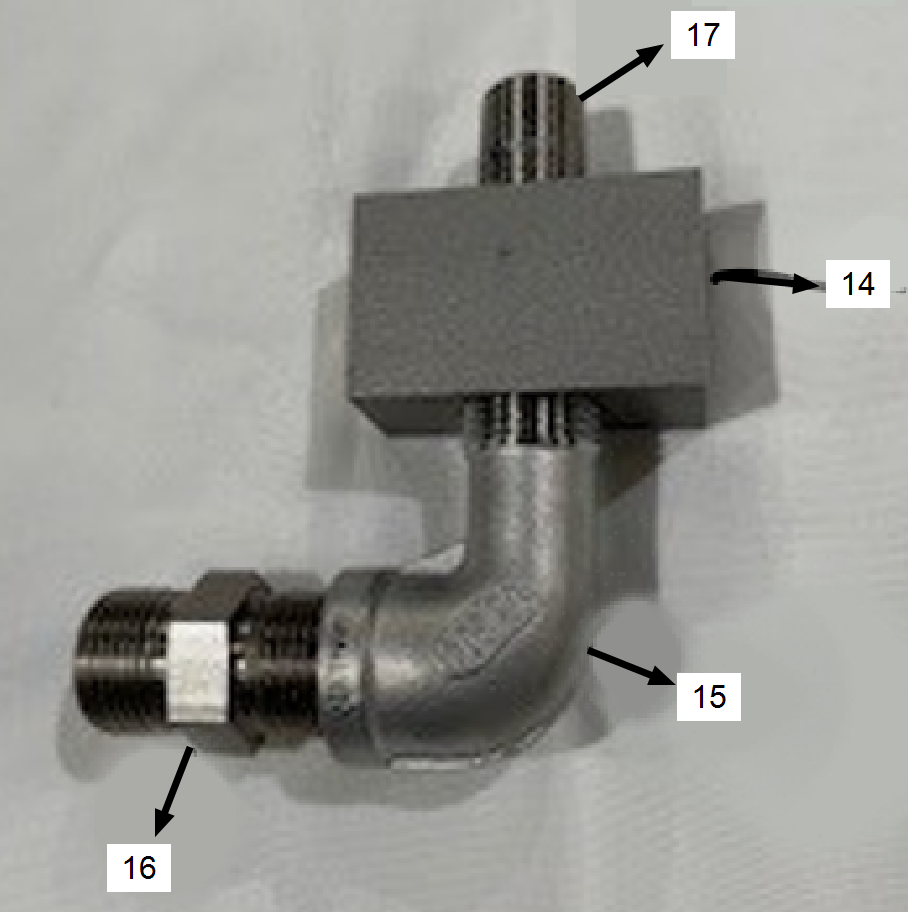

| 14 | 60344 | Return line fitting | 1 | 1 | 1 | |
| 15 | FP01-127 | 1/2 x 1/2, 90°, street elbow | 1 | 1 | 1 | |
| 16 | 16807 | Fitting, straight connector, male | 1 | 1 | 1 | |
| 17 | FP02-001 | Nipple, 3/8 inch | 1 | 1 | 1 | |
| Recommended Parts: A = Truck Stock; B = Dist. Stock * = Not Shown | ||||||
