Blower Motor, Auto Lift, and Side Panel Assembly
Non-Auto-Lift Units
|
Description |
120V-SN: before BR0912001 240V-SN: before BR1210002 |
120V-SN: BR0912001 & After 240V-SN: BR1210002 & After |
|---|---|---|
|
Blower |
(120V) 64197 / (240V) 21037 |
(120V) 14420 / (240V) 14422 |
|
Flue |
69889 |
82533 |
|
Brace |
21632 |
82545 |
|
Duct |
23115 |
80545 |
Auto Lift Units
|
Description |
120V-SN: before BR0912001 240V-SN: before BR1210002 |
120V-SN: BR0912001 & After 240V-SN: BR1210002 & After |
|---|---|---|
|
Blower |
(120V) 64197 / (240V) 21037 |
(120V) 14420 / (240V) 14422 |
|
Flue |
21066 |
80542 |
|
Brace |
21632 |
82545 |
|
Duct |
23115 |
80545 |
Rear View
Front View

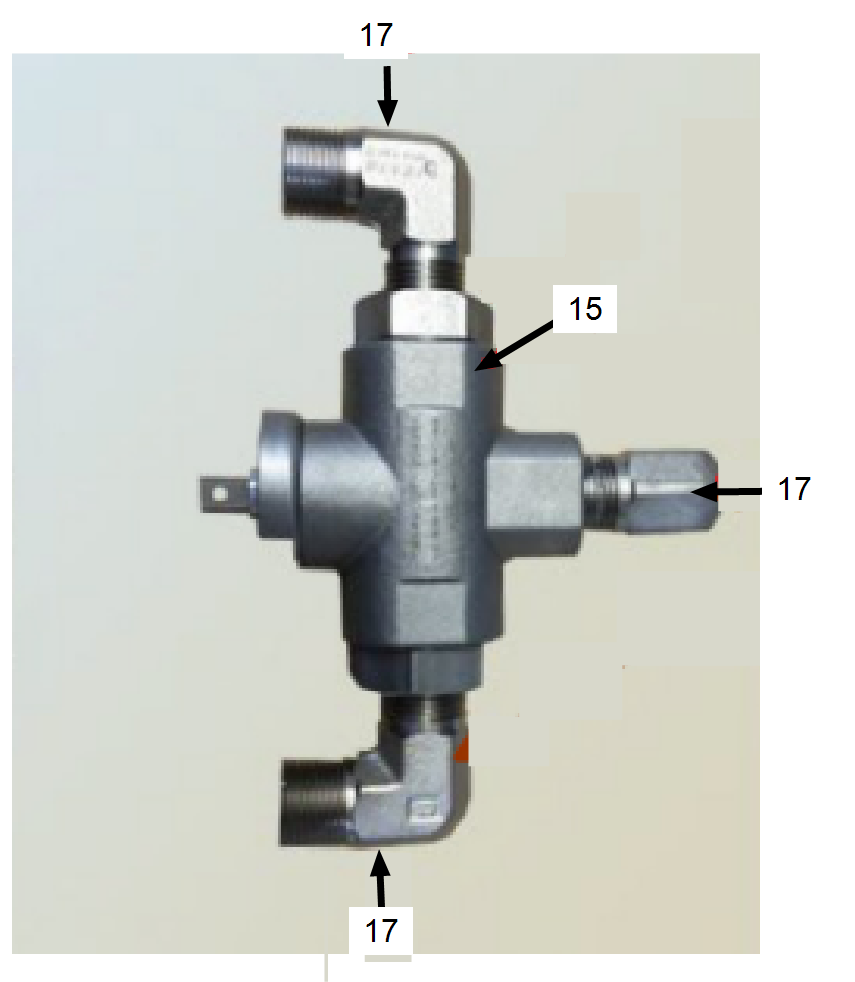

Gas Unit Diverter Valve Assembly

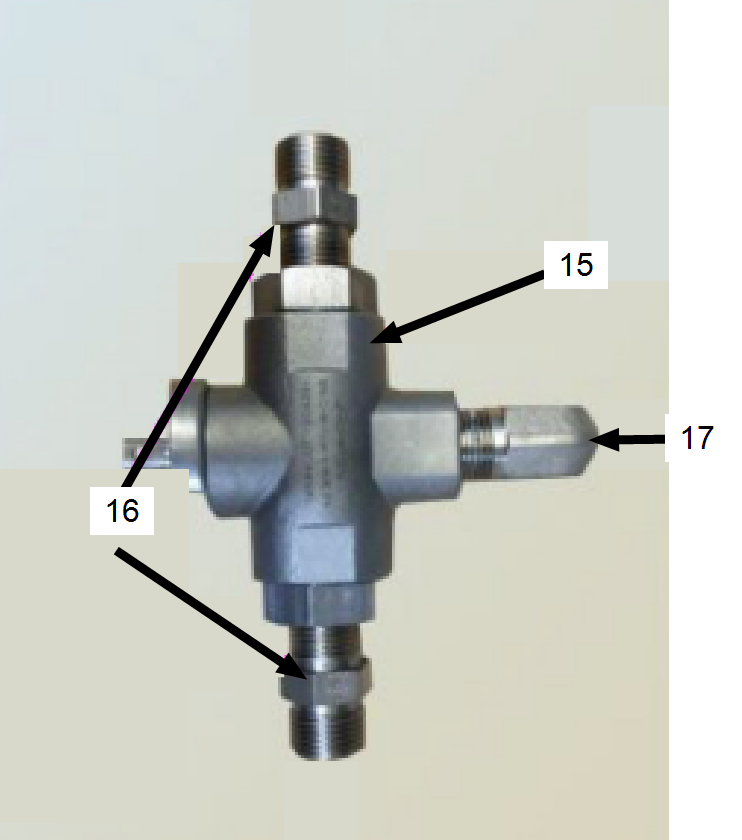

Electric Unit Diverter Valve Assembly
|
Item No. |
Part No. |
Description |
Qty. per Well |
Stocking Level |
|---|---|---|---|---|
|
1 |
21005 |
Right side panel (Before Jan. 1, 2006) |
1 |
|
|
1 |
70226 |
Right side panel (Jan. 1, 2006 & After) |
1 |
|
|
2 |
64197 |
Blower motor assembly, 120 VAC (before SN: BR0912001) See Non-Auto-Lift Units or Auto-Lift Units |
1 |
B |
|
2 |
14420 |
Blower kit, 120 VAC (SN: BR0912001 & after) See Non-Auto-Lift Units or Auto-Lift Units |
1 |
B |
|
2 |
21037 |
Blower motor assembly, 220VAC (before SN: BR1210002) See Non-Auto-Lift Units or Auto-Lift Units |
1 |
B |
|
2 |
14422 |
Blower kit, 240 VAC (SN: BR1210002 & after) See Non-Auto-Lift Units or Auto-Lift Units |
1 |
B |
|
3 |
33353 |
Coiled power cord, 120 VAC |
1 |
C |
|
4* |
21006 |
Left side panel (before 4/27/05) |
1 |
|
|
4* |
67854 |
Left side panel (4/27/05 to Dec. 31, 2005) |
1 |
|
|
4* |
70225 |
Left side panel (Jan. 1, 2006 & After) |
1 |
|
|
5 |
63602 |
Auto lift actuator (Before SN: BS/BD0812001) |
2 |
B |
| 5* | 140774 |
Auto lift actuator retrofit kit (BS/BD0812001 - BS2301007/BD2301003) Note: Kit only needed when converting from clevis pin style to non-clevis pin. |
A/R | B |
|
5 |
184700 |
Auto lift actuator (SN: BS2301008/BD2301004 & after) |
2 |
B |
|
6* |
96946 |
Auto lift Bearing service pack (when applicable) |
1 |
|
|
7 |
50865 |
Basket Hanger-Auto Lift |
1 |
|
| 8 | 50776 | Clevis Pin-Auto Lift Actuator | 1 | |
| 9 | SC01-276 | Actuator Mounting Screw | 1 | |
| 10* | LW02-005 | Lock washer- Actuator mounting screw | 1 | |
| 11* | 03156 | Tether kit | 1 | |
| 12* | 71790 |
Rod-diverter valve extension rod (Only used on 342) |
1 | |
| 13* | 67492 |
Stop-D/C extension rod (Only used on 342) |
1 | |
| 14* | 17255 | Pin-cotter | 1 | |
| 15 | 21613 | Diverter valve | 1 | |
| 16 | 16087 | Fitting connector male | 2 | |
| 17 | 17407 | Elbow, 1/2 inch male connector | 4 | |
| Recommended Parts: A = Truck Stock; B = Dist. Stock
* = Not Shown |
||||
