Heating Element and High Limit Assembly

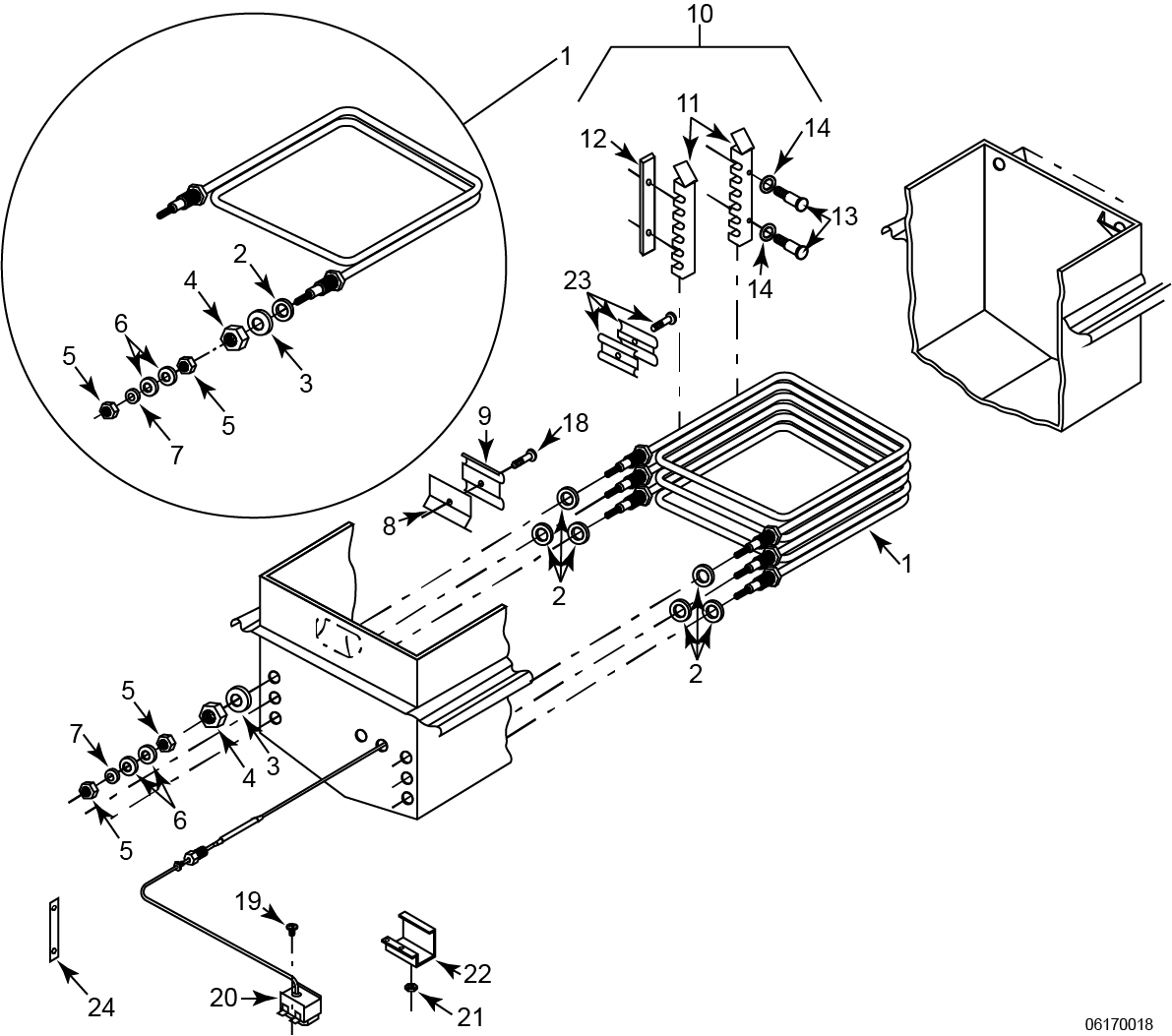

Bulb and Cap High Limit Assembly: 500-AA2404192 / 561-AB2404001 and Before
| Item No. | Part No. | Description | Qty. | Stocking Level |
|---|---|---|---|---|
| 1 | 18233-1 | Heating element service pack, 208 VAC, 4500 W | 3 | B |
| 1 | 18233-2 | Heating element service pack, 220/240 VAC, 4500 W | 3 | B |
| 1 | 18233-3 | Heating element service pack, 230 VAC, 3750 W | 3 | B |
| 1 | 18233-4 | Heating element service pack, 208 VAC, 3750 W | 3 | B |
| 1 | 18233-5 | Heating element service pack, 220 VAC, 3750 W | 3 | B |
| 1 | 18233-6 | Heating element service pack, 480 VAC, 3750 W | 3 | B |
| 1 | 18233-7 | Heating element service pack, 480 VAC, 4500 W | 3 | B |
| 1 | 44756 | Element, 208 VAC, 13.5 kW, PFE 561, units with firebars only | 1 | B |
| 1 | 48159 | Element, 480 VAC, 13.5 kW, PFE561,units with firebars only | 1 | B |
| 1 | 45268 | Element, 240 VAC, 13.5 kW, PFE561, units with firebars only | 1 | B |
| 1 | 48169 | Element, 220 VAC, 13.5 kW, PFE561, units with firebars only | 1 | B |
| 2 | 16855 | O-ring seal | 6 | |
| 3 | WA01-005 | Heating element washer, metal | 6 | |
| 4 | NS01-017 | Heating element nut, brass | 6 | |
| 5 | NS01-014 | Heating element nut | 12 | |
| 6 | WA01-007 | Heating element washer | 12 | |
| 7 | LW01-008 | Heating element lock washer | 6 | |
| 8 | 18720 | Rear high limit clamp | 1 | |
| 9 | 18248 | Front high limit clamp | 1 | |
| 10 | 14685 | Spreader module kit | 4 | |
| 11 | 18225 | Element spreader | 4 | |
| 12 | 18226 | Spreader lock bar | 4 | |
| 13 | SC01-055 | Element spreader screw (units with firebars only) | 8 | |
| 14 | LW02-005 | Element spreader lock washer | 8 | |
| 15* | 44914 | Inner element spreader, PFE561, units with firebars only | 4 | |
| 16* | 44915 | Outer element spreader, PFE561, units with firebars only | 4 | |
| 17* | SC01-201 | Element spreader screw, PFE561, units with firebars only | 8 | |
| 18 | SC01-053 | Screw, 8-32 X 1/2, CT, RD SS | 2 | |
| 19 | SC02-014 | Thread forming screw #8 | 2 | |
| 20 | 16738 | High limit temperature control, UL - PFE 500 AA2404192 and before - PFE 561 AB2404001 and before | 1 | A |
| 21 | NS02-001 | Hex keps nut, #10-32 | 2 | |
| 22 | 17216 | High limit thermostat bracket assembly | 1 | |
| 23 | 18211 | Thermostat bulb holder | 1 | |
| 24 | 19604 | 2-hole buss bar | 2 | |
| 25* | 63339 | Front vat insulation, PFE561 | 1 | |
| * = Not Shown Recommended Parts: A = Truck Stock; B = Dist. Stock | ||||

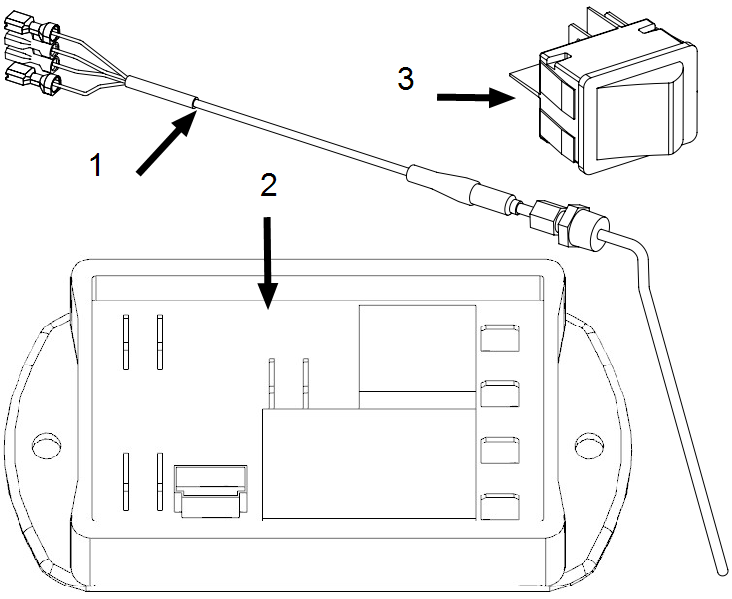

Electric Dual High Limit Assembly: 500-AA2404193 / 561-AB2404002 and After
| Item No. | Part No. | Description | Qty. | Stocking Level |
|---|---|---|---|---|
| 1 | 179097 | Dual high limit temperature probe - PFE 500 AA2404193 and after - PFE 561 AB2404002 and after | 1 | A |
| 2 | 175915-011 | Kit-dual high limit module - PFE 500 AA2404193 and after - PFE 561 AB2404002 and after | 1 | A |
| 3 | 157360 | High limit reset switch - PFE 500 AA2404193 and after - PFE 561 AB2404002 and after | 1 | A |
| 4* | 140846 | Kit-500/561 electric high limit upgrade | ||
| * = Not Shown Recommended Parts: A = Truck Stock; B = Dist. Stock | ||||
