Fan and High Limit Assembly

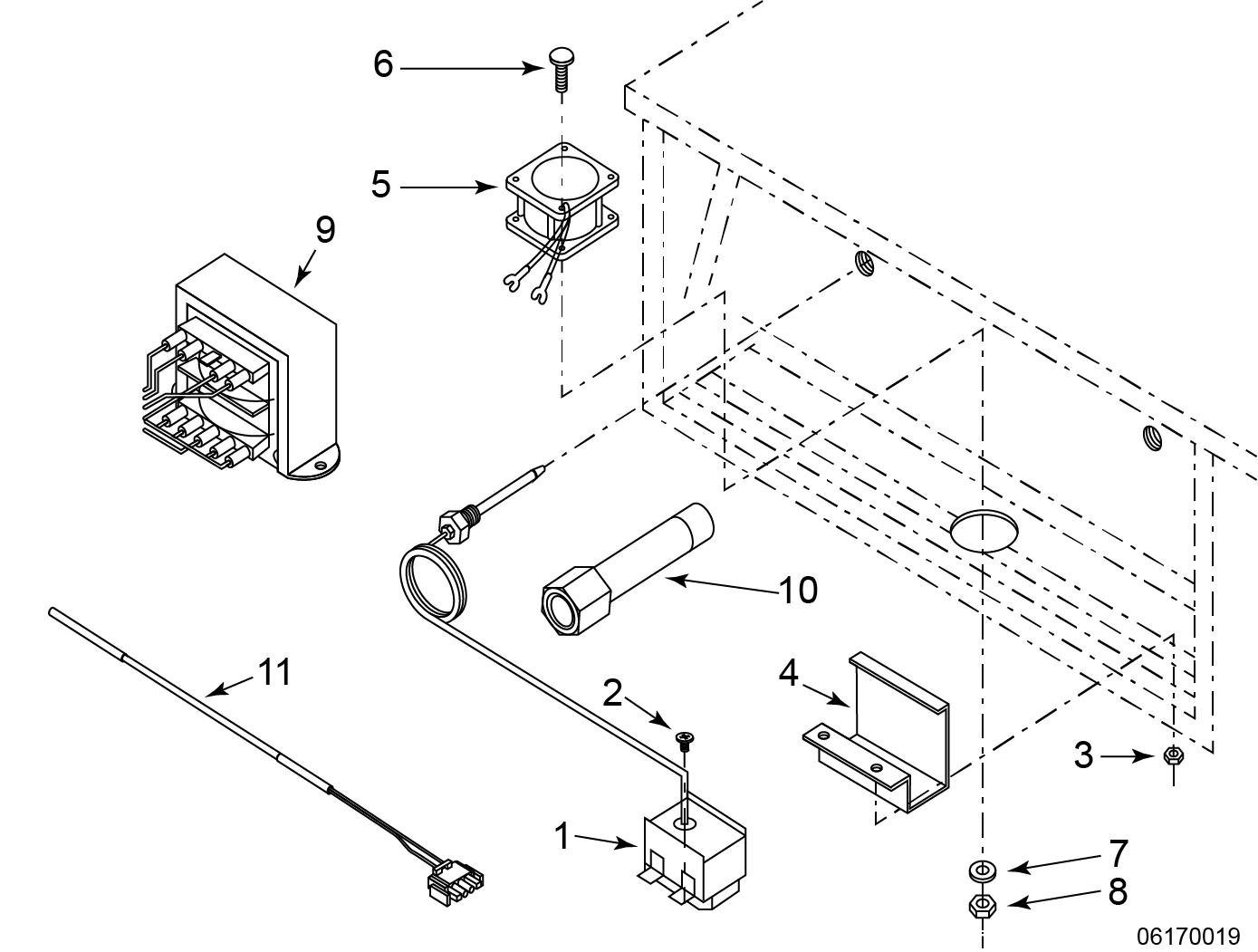

Bulb and Cap High Limit Assembly - AN2404031 and Before
| Item No. | Part No. | Description | Qty. | Stocking Level |
|---|---|---|---|---|
| 1 | 16738 | High limit temperature control (AN2404031 and before) | 1 | A |
| 1 | 60241 | E.G.O. High limit temperature control, CE & Australia (CA012JJ to AN2404031) | 1 | A |
| 1 | 14267 | High limit kit, CE (before CA011JJ) | 1 | A |
| 2 | SC02-018 | Thread forming screw, #8 | 2 | |
| 3 | NS02-001 | Hex keps nut, #10-32 | 2 | |
| 4 | 17216 | High limit thermostat bracket assembly | 1 | |
| 5 | 81208 | Fan, 120VAC | 1 | B |
| 5 | 16688 | Fan, 240VAC (before AN0810093) | 1 | B |
| 5 | 81117 | Fan, 240VAC (AN0810094 and after) | 1 | B |
| 6 | SC01-266 | Fan screw, 6-23 x 1-3/4 in | 4 | |
| 7 | WA01-006 | Fan washer | 4 | |
| 8 | NS02-005 | Fan nut | 4 | |
| 9 | 35916 | Transformer, 120/24VAC | 1 | A |
| 9 | 30614 | Transformer, 208-240/24VAC | 1 | A |
| 10 | 51071 | Thermostat fitting (before KA020JJ) | 2 | |
| 11 | 68078 | FPS temperature probe assembly | 1 | A |
| 12* | 36097 | Probe guard | 1 | |
| 13* | 69981 | Thermostat clip | 1 | |
| Recommended Parts: A = Truck Stock; B = Dist. Stock * = Not Shown | ||||

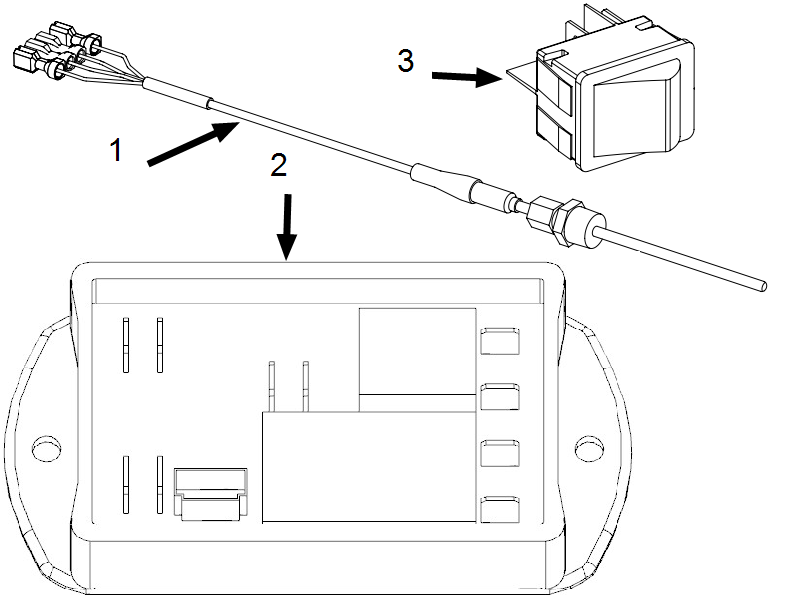

Electric Dual High Limit Assembly - AN2404032 and After
| Item No. | Part No. | Description | Qty. | Stocking Level |
|---|---|---|---|---|
| 1 | 179291 | Dual high limit temperature probe (AN2404032 and after) | 1 | A |
| 2 | 175915-011 | Kit-dual high limit module (AN2404032 and after) | 1 | A |
| 3 | 157360 | High limit reset switch (AN2404032 and after) | 1 | A |
| 4* | 140847 | Kit-600 electric high limit upgrade | ||
| Recommended Parts: A = Truck Stock; B = Dist. Stock * = Not Shown | ||||
