High Limit Assembly
Bulb and Cap High Limit Assembly - BT2406031 and Before
| Item No. | Part No. | Description | Qty. | Stocking Level |
|---|---|---|---|---|
|
1 |
54480 |
High limit sensing bulb bracket assembly |
3 |
|
|
2 |
62051 |
Heat tube spreader clip |
6 |
|
|
3 |
53670 |
High limit spacer |
1 |
|
|
4 |
16738 |
High limit, 450°F, electric, non-CE |
1 |
A |
|
4 |
60241 |
High limit, 425°F, electric, CE |
1 |
A |
|
5 |
SC01-211 |
Hex screw, #10-32 X 1/2, IND, SS |
3 |
|
|
6 |
17216 |
High limit bracket assembly |
1 |
|
|
7* |
16268 |
Vat high limit thermocouple fitting |
1 |
|
| Recommended Parts: A = Truck Stock; B = Dist. Stock
* = Not Shown |
||||

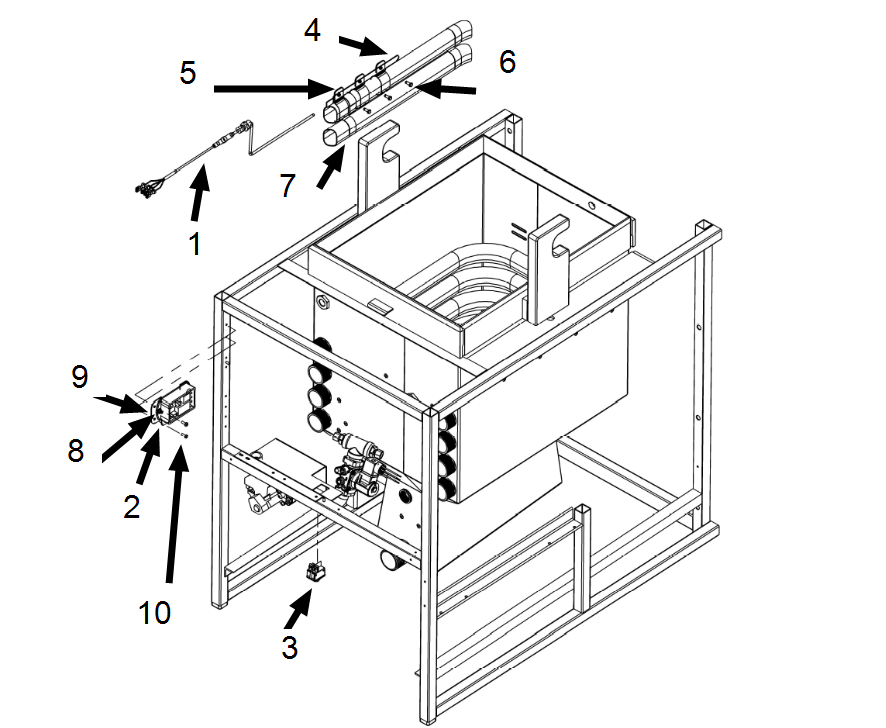

Electric Dual High Limit Assembly - BT2406032 and After
|
Item No. |
Part No. |
Description |
Qty. |
Stocking Level |
|---|---|---|---|---|
| 1 | 179286 | Dual Hi-Limit Thermocouple probe | 1 | A |
| 2 | 175915-009 | Kit-dual Hi-Limit Thermocouple module | 1 | A |
| 3 | 157360 | High limit reset switch, NC | 1 | A |
| 4 | 53670 | High limit spacer | 1 | |
| 5 | 54480 | High limit probe bracket | 3 | |
| 6 | SC01-211 | Hex screw, #10-32 X 1/2 IND, SS | 3 | |
| 7 | 62051 | Heat tube spreader clip | 6 | |
| 8 | NS02-005 | Hex keps nuts, 6-32 | A/R | |
| 9 | 186049 | Hi-Limit module bracket | 1 | |
| 10 | SC03-005 | Screw, #8 X 1/2, Philips | A/R | |
| 11* | 140849 | Kit-39X electric high limit upgrade | ||
| Recommended Parts: A = Truck Stock; B = Dist. Stock
* = Not Shown |
||||
