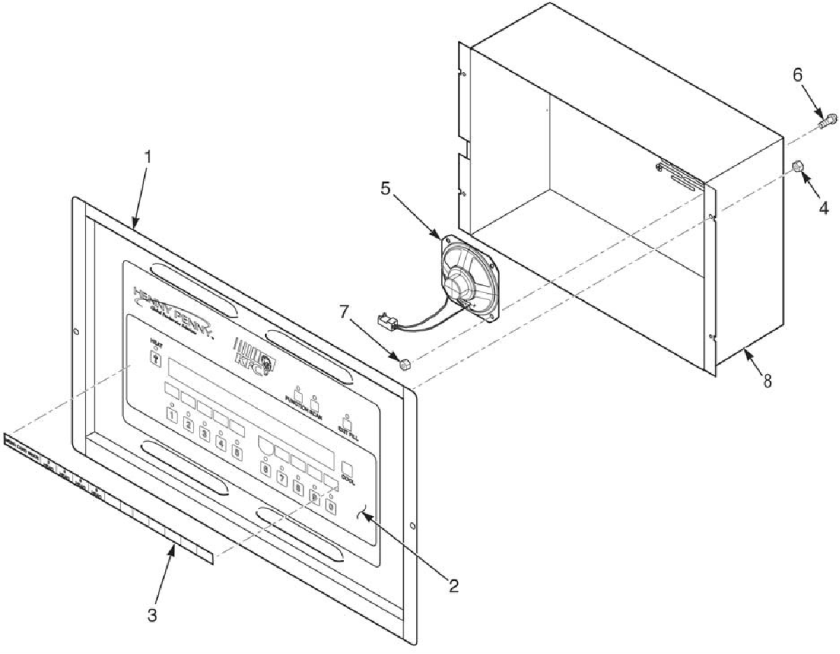

Control Panel Assembly
| Item No. | Part No. | Description | Qty. | Stocking Level |
|---|---|---|---|---|
| 1 | 14418 | SMS 20 control, UL | 1 | B |
| 1 | 14749 | SMS 20 control, CE (Single 15 pin connector rear of board) | 1 | B |
| 1 | 97927 | SMS 20 control, Japan | 1 | B |
| 1 | 21363 | SMS control, 690, CE (Dual 15 pin connectors rear of board) (Replaces older non-SMS versions with dual 15 pin connectors) | 1 | B |
|
2 |
97383 |
Control decal |
1 |
|
|
3 |
92495 |
Menu card |
1 |
|
|
4, 7 |
NS02-005 |
Hex keps nut, #6-32, coated |
4 |
|
|
5 |
51877 |
Speaker assembly |
1 |
A |
|
6 |
SC01-049 |
Screw, #6-32 X 3/8, CT, coated |
4 |
|
| 8 | N/A | Use control panel assembly | 1 | |
| 9* | 152487 | USB port / cable assembly | 1 | |
| 9* | 152488 | USB cap | 1 | |
| Recommended Parts: A = Truck Stock; B = Dist. Stock
* = Not Shown |
||||
