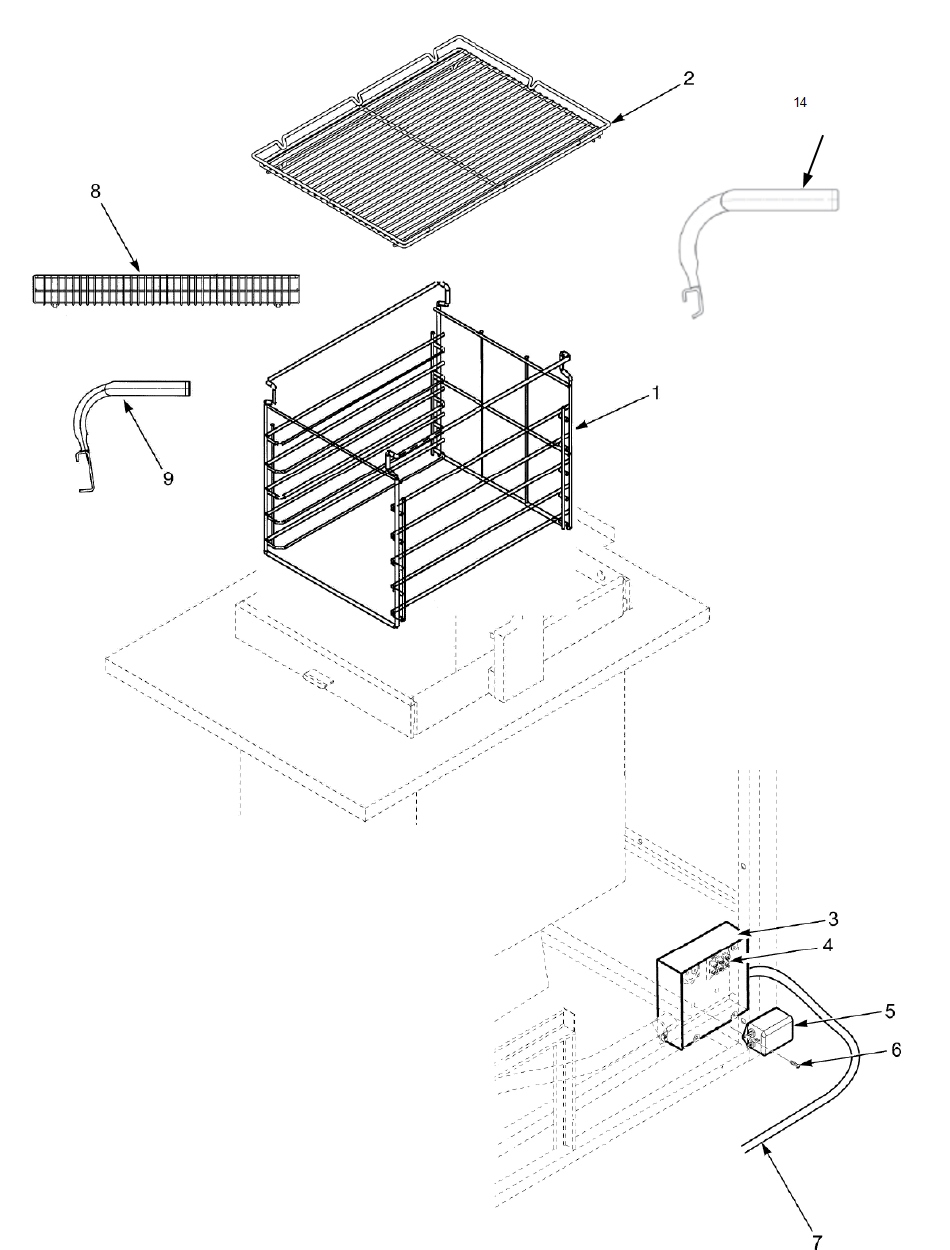

Carrier, Racks, and Junction Box Assembly
| Item No. | Part No. | Description | Qty. | Stocking Level |
|---|---|---|---|---|
|
1 |
35194 |
Carrier assembly |
1 |
|
|
2 |
44782 |
Half size rack |
5 |
|
|
3 |
62126 | Junction box assembly | 1 | |
|
3 |
62127 |
Junction box assembly, CE |
1 |
|
| 4 | 65427 | Terminal block assembly, 5 pole, CE | 1 | |
|
5 |
51057 |
EMC filter assembly, CE |
1 |
A |
| 6 | SC01-023 | Screw, #6-32 X 1/4, coated, CT, RHD | 8 | |
| 7 | 65180 | Main power cord assembly | 1 | |
| 7 | 65181 | Power cord, 291/591 | 1 | |
| 8 | 36404 | Wire basket | A/R | |
| 9 | 36374 | Basket handle weldment assembly | 1 | |
| 10* | 19923 | Large transformer, 480VAC | 1 | |
|
11* |
70824 |
Grounding lug assembly, CE |
1 |
|
|
12 |
58146 |
Plug, 90, 60A, 3PH, 250VAC, #15-60P |
1 |
|
|
13 |
37560 |
Receptacle, #15-60R |
1 |
|
|
14 |
35308 |
Rack handle weldment |
1 |
|
| Recommended Parts: A = Truck Stock; B = Dist. Stock
* = Not Shown |
||||
