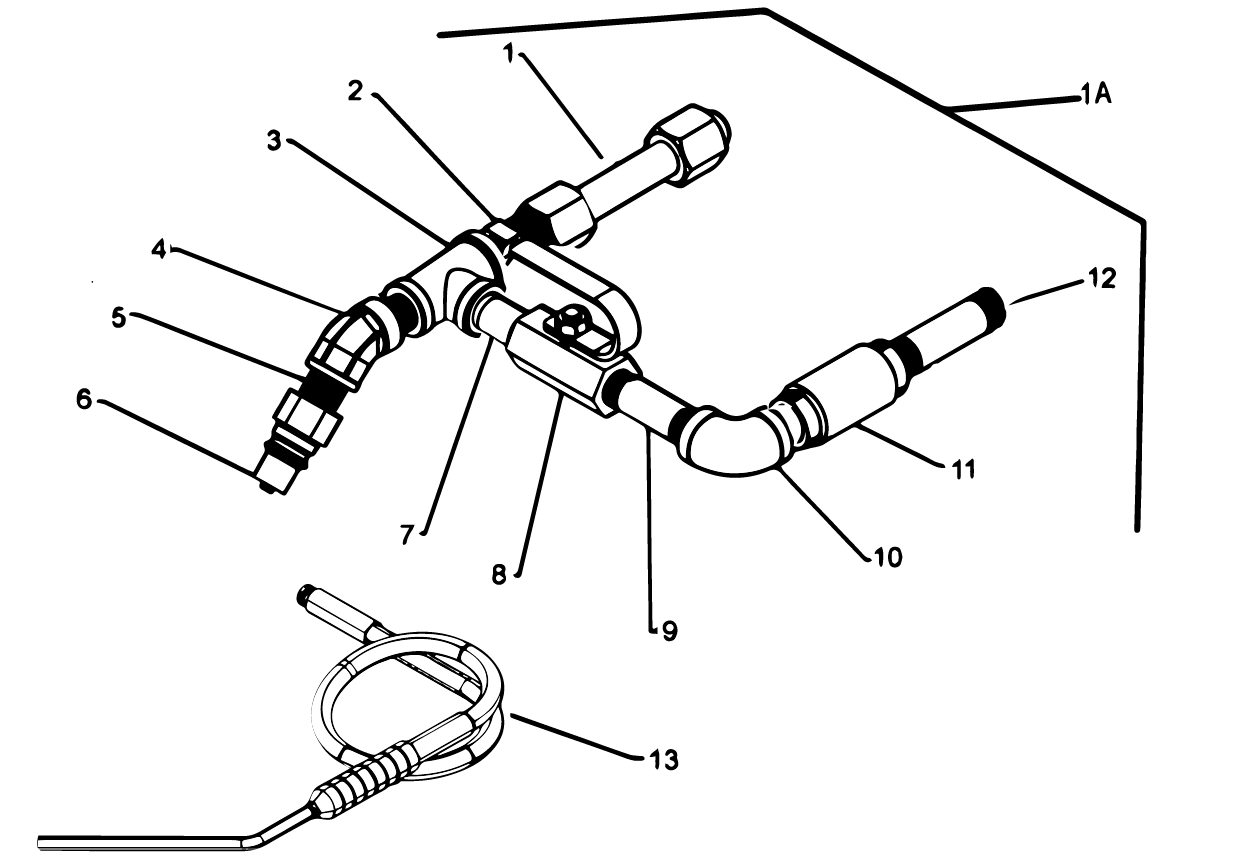

Optional Rinse Hose Kit
SN: LH029JC and Below
Item No. |
Part No. |
Description |
Qty. |
Stocking Level |
---|---|---|---|---|
|
14259 |
Optional rinse hose kit (SN LH029JC to AP0811019) |
1 |
|
1 |
56981 |
Pump to vat tube assembly |
1 |
|
2 |
16807 |
Fitting connector, male |
1 |
|
3 |
17306 |
Pipe tee fitting |
1 |
|
4 |
FP02-024 |
Close nipple, 3/8 NPT B.I. |
2 |
|
5 |
17334 |
Rinse hose disconnect, male |
1 |
|
6 |
59185 |
Small filter valve, C-handle |
1 |
|
7 |
FP01-114 |
Street elbow, 3/8 NPT B.I. |
1 |
|
8 |
FP01-116 |
Large nipple, 3/8 NPT X 4 in B.I |
1 |
|
8 |
66810 |
Filter rinse tube assembly (SN LH029JC to AP0811019) |
1 | |
9 |
35472 |
Check valve, pressure |
1 |
|
10 |
FP02-007 |
Nipple, 3/8 X 1-1/2 |
1 |
|
11 |
03003 |
Detachable hose assembly |
1 |
|
11 | 165333 | Filter rinse hose - straight male fitting | 1 | |
11 | 33494 | Filter rinse hose - 90-degree male fitting | 1 | |
11 | 24904 | Filter rinse hose - duel gender male fitting | 1 | |
Recommended Parts: A = Truck Stock; B = Dist. Stock
* = Not Shown |
SN: AP0811020 and Above
Item No. |
Part No. |
Description |
Qty. |
Stocking Level |
---|---|---|---|---|
|
14996 | Optional rinse hose kit (SN AP08110019 and above) |
1 |
|
1 |
21800 |
Check valve, 3/4 |
1 |
|
2 |
16282 |
Close nipple, 3/4 |
2 |
|
3 |
66697 |
Diverter valve, 3/4 |
1 |
|
4 |
17334 |
Rinse hose disconnect, male |
1 |
|
5 |
FP02-024 |
Close nipple, 3/8 NPT B.I. |
1 |
|
6 |
FP01-143 |
Bushing, 3/4 X 3/8 B.I. |
1 |
|
7 |
FP01-169 |
Connector, 90°, male, 3/4 tube, 3/4 NPT |
1 |
|
8 |
81956 | Filter rinse tube assembly (SN AP0811020 and above) |
1 |
|
9 |
03003 |
Detachable hose assembly |
1 |
|
9 | 165333 | Filter rinse hose - straight male fitting | 1 | |
9 | 33494 | Filter rinse hose - 90-degree male fitting | 1 | |
9 | 24904 | Filter rinse hose - duel gender male fitting | 1 | |
Recommended Parts: A = Truck Stock; B = Dist. Stock
* = Not Shown |
