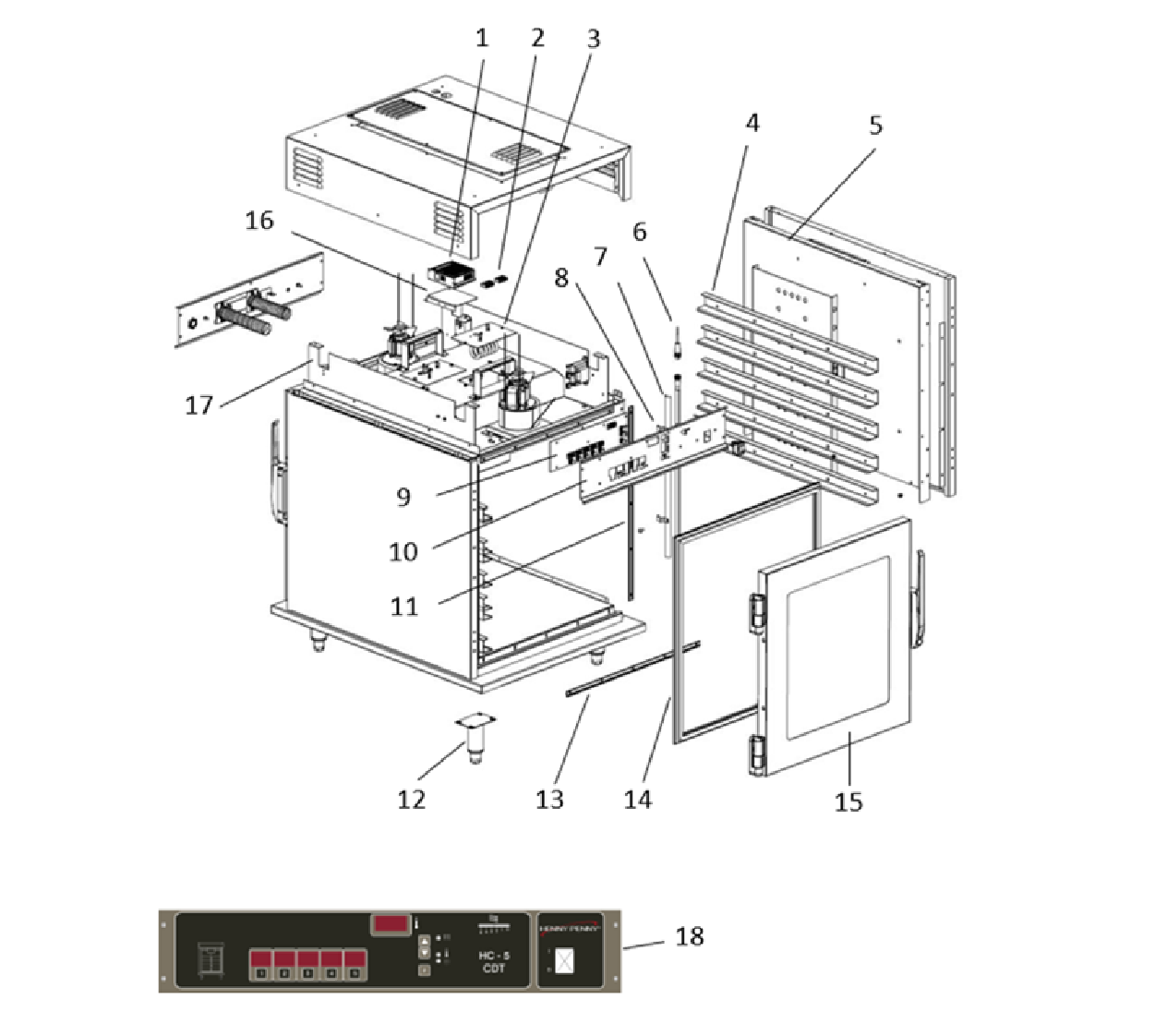

HC 4, 5, and 15 Parts
|
Item No. |
Part No. |
Description |
Qty. |
Stocking Level |
|---|---|---|---|---|
| 1 | 72312 | Louvered access panel | 1 | |
| 2 | SC02-023 | Screw, 8-32 x 1/2 in, CT | 4 | |
| 3 | 72317 | Rear panel | 1 | |
| 4 | EC02-004 | Terminal flag, # 10 | 1 | |
| 5 | 175732 | Power cord assembly, 240VAC. 60HZ, 8ft. | 1 | |
| 5 | 175734 | Power cord assembly, 240VAC. 50HZ, 9ft. | 1 | |
| 7 | SC01-074 | Screw, 6-32 x 1/4 in, CT | 2 | |
| 9 | 49778 | Cable connector, 3/4 in. | 1 | |
| 10 | SC02-023 | Screw, 8-32 x 1/2 in, CT | 15 | |
| 11 | NS02-001 | Hex keps nut, 10-32 | 1 | |
| 15 | 84607 | Top enclosure | 1 | |
| 16 | 26225 | Cover insulation | 1 | |
| 17 | SC02-041 | External Torx screw, 8-18 x 7/16 in, CT | 18 | |
| 18 | 25620 | Seal | 2 | |
| 19 | 25670 | Cradle | 1 | |
| 20 | 25624 | Seal | 2 | |
| 21 | 25619 | Blower outlet gasket | 2 | |
| 22 | 25618 | Gasket retainer | 2 | |
| 23 | SC02-041 | Internal Torx screw, 8-18 x 7/16 in, CT | 2 | |
| 24 | SC01-074 | Screw, 10-32 X 1/2 in, CT | 2 | |
| 25 | EF02-031 | Clamp, ¼ x 3/8 in | 2 | |
| 26 | EF02-003 | Wire tie | 4 | |
| 27 | 25627 | Gasket | 2 | |
| 34 | 87097 | Blower box assembly | 2 | |
| 35 | 72914 | -Blower rear box | 1 | |
| 37 | NS02-001 | -Nut | 2 | |
| 38 | 25698 | -Blower plate gasket | 2 | |
| 39 | 25622 | -Inlet flange | 1 | |
| 40 | 25623 | - Blower housing | 1 | |
| 51 | 84513 | Blower motor assembly, 240 VAC | 2 | |
| 52 | 52240 | - Internal blower wheel | 1 | |
| 53 | SC01-023 | - Screw | 4 | |
| 54 | LW02-010 | - Lockwasher | 4 | |
| 55 | 37157 | - Blower plate | 1 | |
| 56 | 81606 | - Motor spacer | 4 | |
| 57 | 182498-002 | - Blower motor service pack, 240 VAC | 1 | A |
| 58 | SC01-091 | - Screw | 4 | |
| 59 | 25768 | - Fan blade spacer, 0.265 in (6.75 mm) ID | 1 | |
| 59 | ME50-097 | - Fan blade spacer, 0.257 in (6.53 mm) ID | 1 | |
| 60 | 25706 | - Cooling fan | 1 | A |
| 61 | 51279 | Heater, 120 VAC 1000W | 2 | A |
| 62 | 18201 | High limit thermostat | 2 | A |
| 63 | 70046 | Power switch | 1 | A |
| 64 | 16624 | Indicator light, red | 2 | A |
| 65 | 14250 | Thermometer | 1 | A |
| 66 | 25863 | Thermostat knob | 1 | |
| 67 | SC02-030 | Screw, 8-32 X 3/8 in, CT | 4 | |
| 68 | 87065 | Control decal | 1 | |
| 69 | 72440 | Control panel | 1 | |
| 71 | 25241 | Thermostat mounting bracket | 1 | |
| 72 | 14209 | Thermostat with clips | 1 | A |
|
Recommended Parts: A = Truck Stock; B = Dist. Stock * = Not Shown A/R = As Required |
||||
