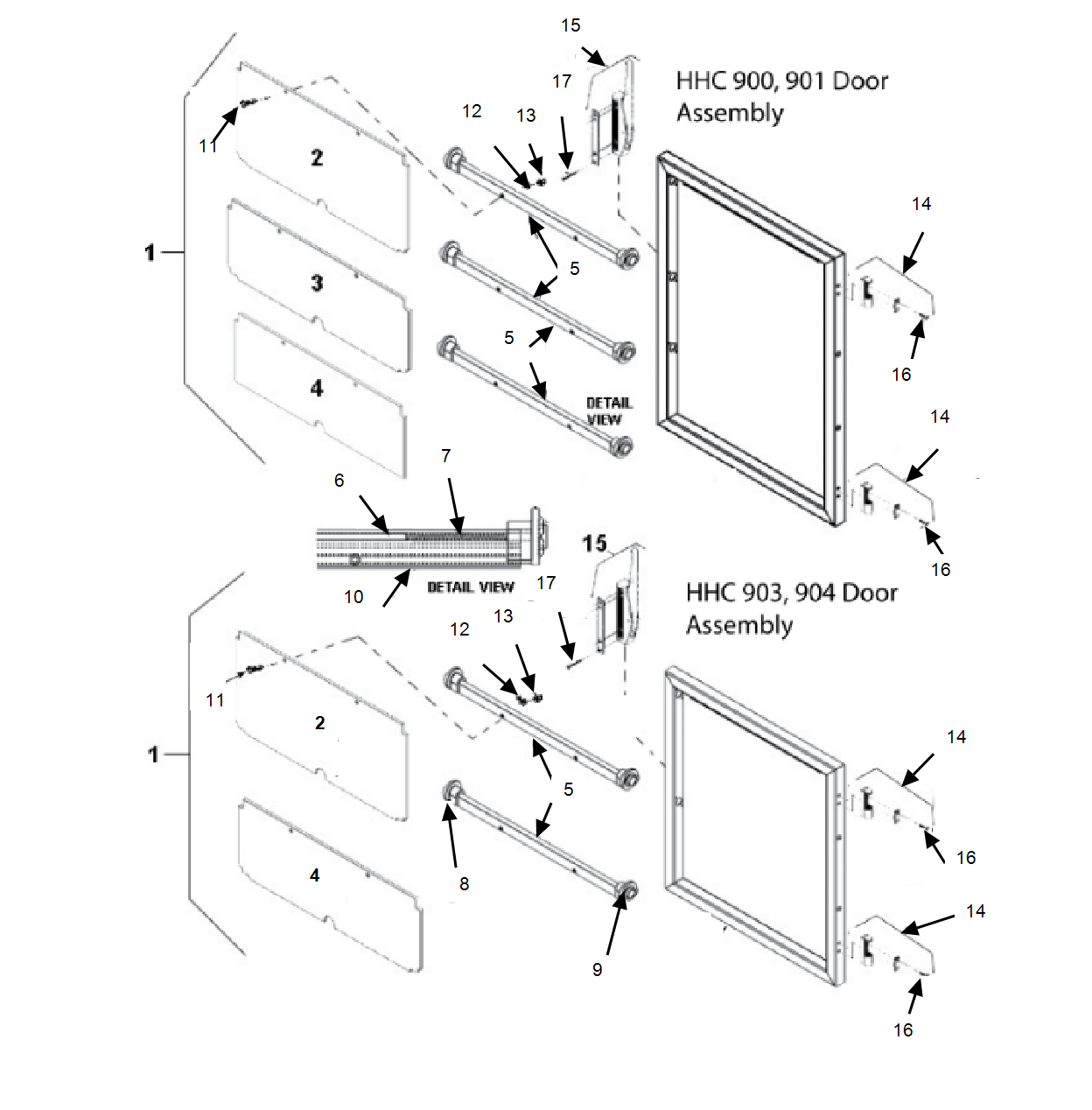

Flip Doors
Flip-Up Door Assemblies (HHC 903 - SN: DA0511040 & Above)
HHC 903’s (1/3-size) with SN: DA0511039 & below, SN required.
HHC 900 (full-size) with SN: DA0511039 & below, no parts available.
Complete door assembly must be ordered.
| Item No. | Part No. | Description | Qty. per Door | Stocking Level | |||
|---|---|---|---|---|---|---|---|
|
900 |
901 |
903 |
904 |
||||
|
1 |
71309 |
Flip door assembly, right hinge |
1 |
- |
- |
- | |
|
1 |
71403 |
Flip door assembly, left hinge |
1 |
- |
- |
- | |
| 1 | 77742 | Flip door assembly, right hinge | - | 1 | - | - | |
| 1 | 81921 | Flip door assembly, left hinge | - | 1 | - | - | |
| 1 | 96764 |
Flip door assembly, right hinge (SN: DA0511040 & Above) |
- | - | 1 | - | |
| 1 | 96765 |
Flip door assembly, left hinge (SN: DA0511040 & Above) |
- | - | 1 | - | |
| 1 | 81927 | Flip door assembly, right hinge | - | - | - | 1 | |
| 1 | 79997 | Flip door assembly, left hinge | - | - | - | 1 | |
|
2 |
151982-004 |
Flip door panel, top, 9.56 in (24.3 cm) height |
1 |
- |
- |
- | |
| 2 | 152113-001 | Flip door panel, top, 7.61 in (19.3 cm) height | - | 1 | - | - | |
| 2 | 151982-006 | Flip door panel, top, 11.09 in (28.2 cm) height | - | - | 1 | - | |
| 2 | 152113-004 | Flip door panel, top, 11.88 in (30.2 cm) height | - | - | - | 1 | |
|
3 |
151982-003 |
Flip door panel, middle, 6.86 in (17.4 cm) height |
1 |
- |
- |
- | |
| 3 | 152113-002 | Flip door panel, middle, 8.06 in (20.5 cm) height | - | 1 | - | - | |
|
4 |
151982-005 |
Flip door panel, bottom, 6.74 in (17.1 cm) height |
1 |
- |
- |
- | |
| 4 | 152113-003 | Flip door panel, bottom, 7.49 in (19.0 cm) height | - | 1 | - | - | |
| 4 | 151982-007 | Flip door panel, bottom, 8.11 in (20.6 cm) height | - | - | 1 | - | |
| 4 | 152113-005 | Flip door panel, bottom, 11.88 in (30.2 cm) height | - | - | - | 1 | |
|
5 |
71308 |
Flip door panel hinge assembly |
A/R |
A/R |
A/R |
A/R | |
|
6 |
-71067 |
-Flip door rod |
A/R |
A/R |
A/R |
A/R | |
|
7 |
-71316 |
-Flip door spring |
A/R |
A/R |
A/R |
A/R | |
|
8 |
-70768 |
-Flip door cam, right |
A/R |
A/R |
A/R |
A/R | |
|
9 |
-70769 |
-Flip door cam, left |
A/R |
A/R |
A/R |
A/R | |
|
10 |
-73320 |
-Flip door extrusion |
A/R |
A/R |
A/R |
A/R | |
|
11 |
SC01-032 |
Screw, #8-32 x 5/8 in |
A/R |
A/R |
A/R |
A/R | |
|
12 |
LW02-006 |
Lockwasher, internal, #8 |
A/R |
A/R |
A/R |
A/R | |
|
13 |
NS03-024 |
Acorn nut, low crown, #8-32 |
A/R |
A/R |
A/R |
A/R | |
| 14 | 14271 | Door hinge kit | 1/door | 1/door | 1/door | 1/door | B |
|
15 |
14272 |
Door handle kit |
1/door |
1/door |
1/door |
1/door | B |
|
16 |
SC01-086 |
Screw, #8-32 x 1 in |
A/R |
A/R |
A/R |
A/R | |
|
17 |
SC01-186 |
Screw, #10-32 x 1-3/4 in, PH, FHD, SS |
A/R |
A/R |
A/R |
A/R | |
| Recommended Parts: A = Truck Stock; B = Dist. Stock
* = Not Shown |
|||||||
