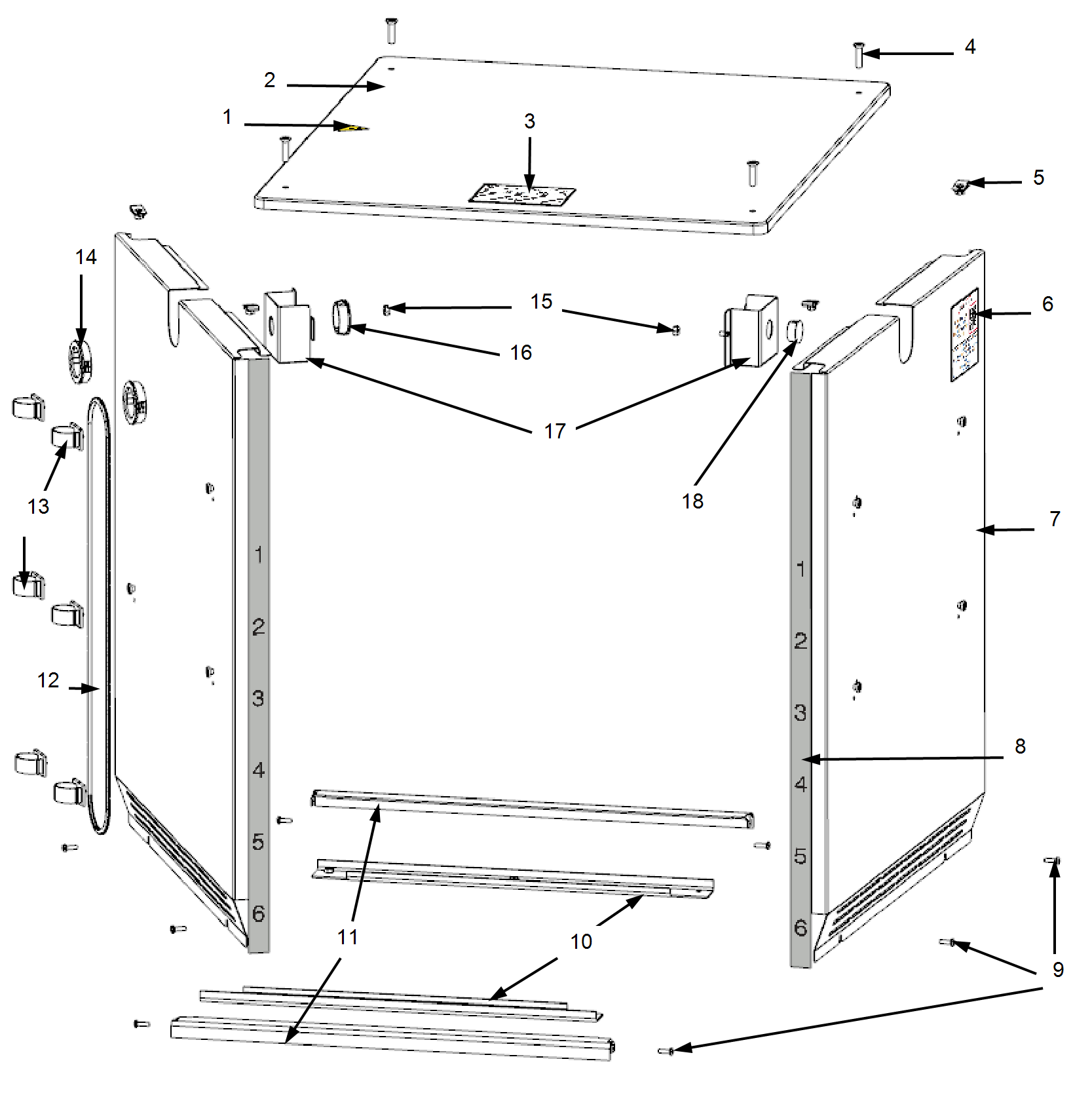

Cabinet Assembly
|
Item No. |
Part No. |
Description |
Qty. |
Stocking Level |
|---|---|---|---|---|
| 1 | 72704 | Shock hazard label | 1 | |
| 2 | 187411 | Top cap | 1 | |
| 3 | - | Data Plate - Tech Service Approval Only | 1 | |
| 4 | SC01-068 | 1/4-20 x 1 in. PH Screw | A/R | |
| 5 | NS03-136 | 1/4 in. Clip-on nut | A/R | |
| 6 | 187114 | Ops and service label | 2 | |
| 7 | 185705 |
Side Panel - Serial Number Prefix "DM", UHC600.XX |
2 | |
| 7 | 167599 |
Side Panel - Serial Number Prefix "GE", UHC600.1XX/.2XX |
2 | |
| 8 | 186562 | Shelf label | 4 | |
| 9 | SC02-048 |
#8 x 1/2 in. RH Screw - Serial Number Prefix "DM", UHC600.XX |
A/R | |
| 9 | SC05-051 |
#8 x .500 RND HD Slot Screw - Serial Number Prefix "GE", UHC600.1XX/.2XX |
A/R | |
| 10 | 185682 | Bottom Front and Rear Rail Support | 2 | |
| 11 | 185918 | Bottom Front and Rear Rail Cap | 2 | |
| 12 | 188090-001 | Edge Grommet, 40 in. | 1 | |
| 13 | EF02-140 |
Snap clip - Serial Number Prefix "DM", UHC600.XX |
A/R | |
| 13 | EF02-204 |
Snap clip - Serial Number Prefix "GE", UHC600.1XX/.2XX |
A/R | |
| 14 | EF02-142 | Snap bushing, 1 3/8 in. | A/R | |
| 15 | NS02-006 | #10-24 Keps hex nut | A/R | |
| 16 | EF02-090 | 1 in. snap bushing | 1 | |
| 17 | 186160 |
Power cord bracket - Serial Number Prefix "DM", UHC600.XX |
2 | |
| 17 | 167596 |
Power cord bracket - Serial Number Prefix "GE", UHC600.1XX/.2XX |
2 | |
| 18 | PL01-017 | 7/8 in. Nylon plug | 1 | |
| 19* | 186124 | Side panel | 2 | |
| 20* | 140894 | Standoff service kit | A/R | |
| 21* | 185712 | 200-240V, 50/60 HZ, 1PH wiring diagram label | 1 | |
| 22* | PL01-016 | 5/8 in. Nylon plug | 1 | |
| 23* | 185679 | Stud-assy base plate | 1 | |
| 24* | 167626 |
Ops & Service Label - Serial Number Prefix "GE", UHC600.1XX/.2XX |
1 | |
|
Recommended Parts: A = Truck Stock; B = Dist. Stock * = Not Shown |
||||
