Filter Pump System
| Item No. | Part No. | Description | Qty. | Stocking Level |
|---|---|---|---|---|
| 1 | N/A | Flange mount filter pump and motor assembly (NOT SOLD) | 1 | A |
| 1 | N/A | Hub mount filter pump and motor assembly (NOT SOLD) | 1 | A |
| 2 | 140537 | Drain pan switch kit | 1 | |
| 3 | 151686–002 | Filter pump outlet hose, 34 in | 1 | |
| 4 | 164162 | Filter pickup tube assembly | 1 | |
| 5 | 160834 | - Tube end adaptor | 1 | |
| 6* | 151486 | Filter pump bracket support rod | 2 | |
| 7 | 16239 | Elbow, 90 degree | 1 | |
| 8 | FP01-278 | Elbow, 45 degree 1/2 NPT | 1 | |
| 9* | 17407 | Elbow, 90 degree 1/2" male (inlet fitting) | 1 | |
| Recommended Parts: A = Truck Stock; B = Dist. Stock | ||||

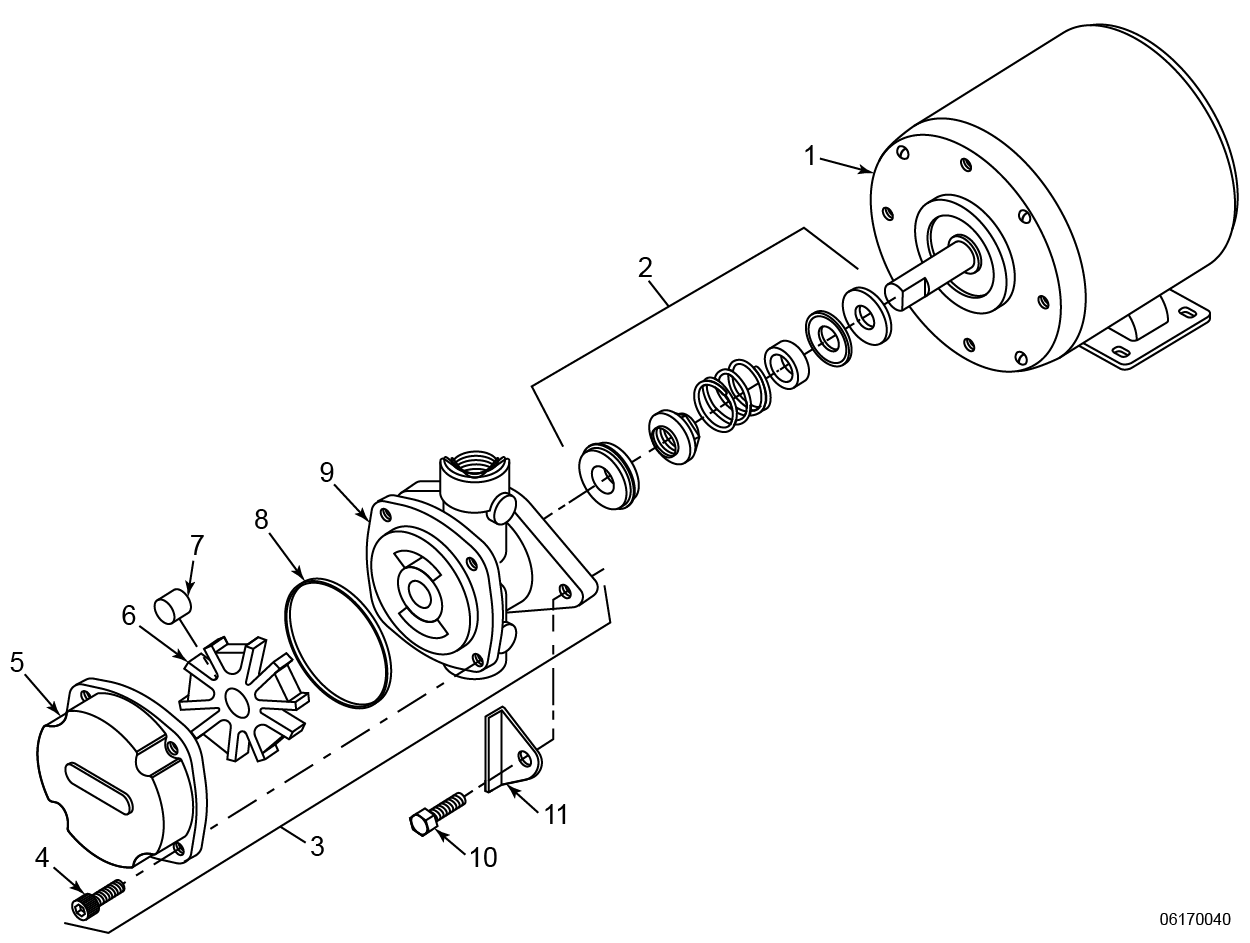

Flange Mount Filter Pump Motor Assembly
EEG 16X - Not Used on Units
EEG 241- Used on All Units
EEG 242, 243, 244
-60 Hz Units Manufactured Before September 2017
-50 Hz Units Manufactured Before November 2017
| Item No. | Part No. | Description | Qty. | Stocking Level |
|---|---|---|---|---|
| 1 | 67583 | Motor, 1/2 HP, 60 Hz | 1 | A |
| 1 | 92850 | Motor, 1/2 HP, 50 Hz, CE | 1 | A |
| 1 | 67583 | Motor, 1/2 HP, 60 Hz | 1 | A |
| 2 | 17476 | Seal kit | 1 | B |
| 3 | 171168 | 5 GPM pump assembly | 1 | |
| 4 | SC01-132 | - Pump cover screw | 1 | |
| 5 | 171171 | - Pump cover | 1 | |
| 6 | 171170 | - Pump rotor | 1 | |
| 7 | 171169 | - Pump roller (set of 5) | 1 | B |
| 8 | 162498 | - O-ring | 1 | B |
| 9 | N/A | Pump body not sold separately. Use 171168. | ||
| Recommended Parts: A = Truck Stock; B = Dist. Stock | ||||
Hub Mount Filter Pump Motor Assembly
Not Included in Original Manufactured Assembly
EEG 16X - Used on All Units
EEG 241- Not Used on Units
EEG 242, 243, 244
-60 Hz Units Manufactured September 2017 and After
-50 Hz Units Manufactured November 2017 and After
NOTICE - | Do not separate the filter pump rotor and body. Separating the rotor and body will cause permanent pump shaft seal damage. |
| Item No. | Part No. | Description | Qty. | Stocking Level |
|---|---|---|---|---|
| 1 | 164184-001 | 1/2 HP / 60Hz motor | 1 | A |
| 1 | 164184-002 | 1/2 HP / 50Hz motor, CE | 1 | A |
| 2 | 164323 | 5 GPM hub mounted filter pump assembly | 1 | A |
| 3 | - FP01-020 | Hex socket plug, 1/4 NPT | 1 | |
| 4 | -SC01-132 | Pump cover screw (qty. 50) | A/R | |
| 5 | Pump cover not sold separately | |||
| 6 | -171169 | Pump roller kit (set of 5), 5 GPM | 1 | A |
| 7 | -162498 | Pump cover o-ring | 1 | A |
| 8* | 140598 | Hub mount filter pump conversion hardware kit | 1 | |
| 9* | 168510 | Motor shield, CE | 1 | |
| 10* | -173418-001 | Fitting o-ring, SAE #6, 9/16-18 UNF | 1 | |
| 10* | -173418-002 | Fitting o-ring, SAE #8, 3/4-16 UNF | 1 | |
| 10* | -173418-003 | Fitting o-ring, SAE #10, 7/8-14 UNF | 1 | |
| 10* | -173418-004 | Fitting o-ring, SAE #12, 1 1/16-12 UNF | 1 | |
| Recommended Parts: A = Truck Stock; B = Dist. Stock | ||||
NOTE: Kit 140598 does NOT include filter pump or motor. It only includes hardware.
NOTE: Prime retrofit filter pump and motor fittings cannot be used with hub mounted filter pump and motor assembly. Mounting plate holes will not align.
