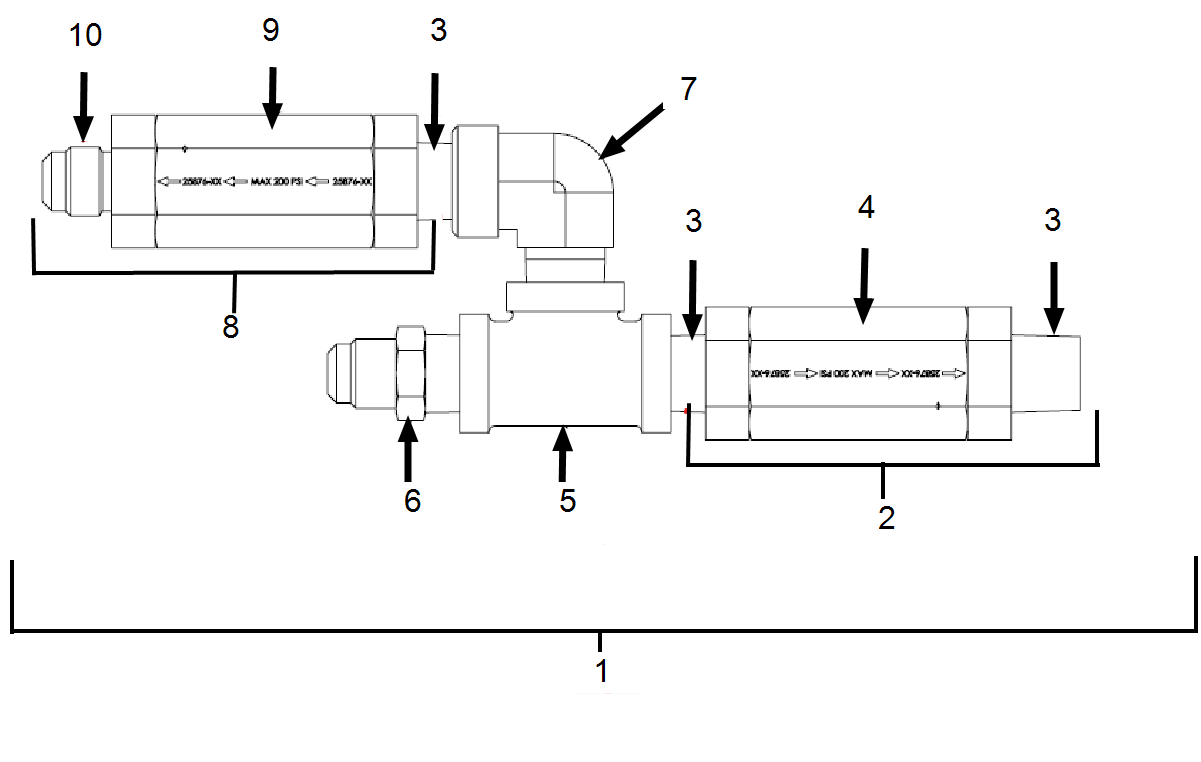

Check Valve Plumbing Assembly
SN: July 2017 & Before
NOTE: Applies to units with solenoid valve construction. Applies unit with serial numbers prefixes NA, NB, NW, NX, NY, NZ.
| Item No. | Part No. | Description | Qty. | Stocking Level |
|---|---|---|---|---|
|
1 |
151595 | Check valve plumbing assembly | 1 | |
|
2 |
-151597 | Oil check valve assembly | A/R | |
|
3 |
--FP01-256 | Fitting 12 SAE, 1/2 NPT | 3 | |
|
4 |
--90506-001 | Check valve, 3 PSI, 12 SAE | 1 | A |
|
5 |
-FP01-112 | Pipe tee, 1/2 inch, female | 1 | |
|
6 |
-FP01-242 | Fitting 1/2 inch to 45° flare | 1 | |
| 7 | -16239 | 90° street elbow, 1/2 inch | 1 | |
| 8 | -151702 | Oil check valve assembly | 1 | |
| 9 | --90506-002 | Check valve, 45 PSI, 12 SAE | 1 | A |
| 10 | --FP01-255 | Fitting 12 SAE to 45° flare | 1 | |
| Recommended Parts: A = Truck Stock; B = Dist. Stock
* = Not Shown A/R = As Required |
||||
