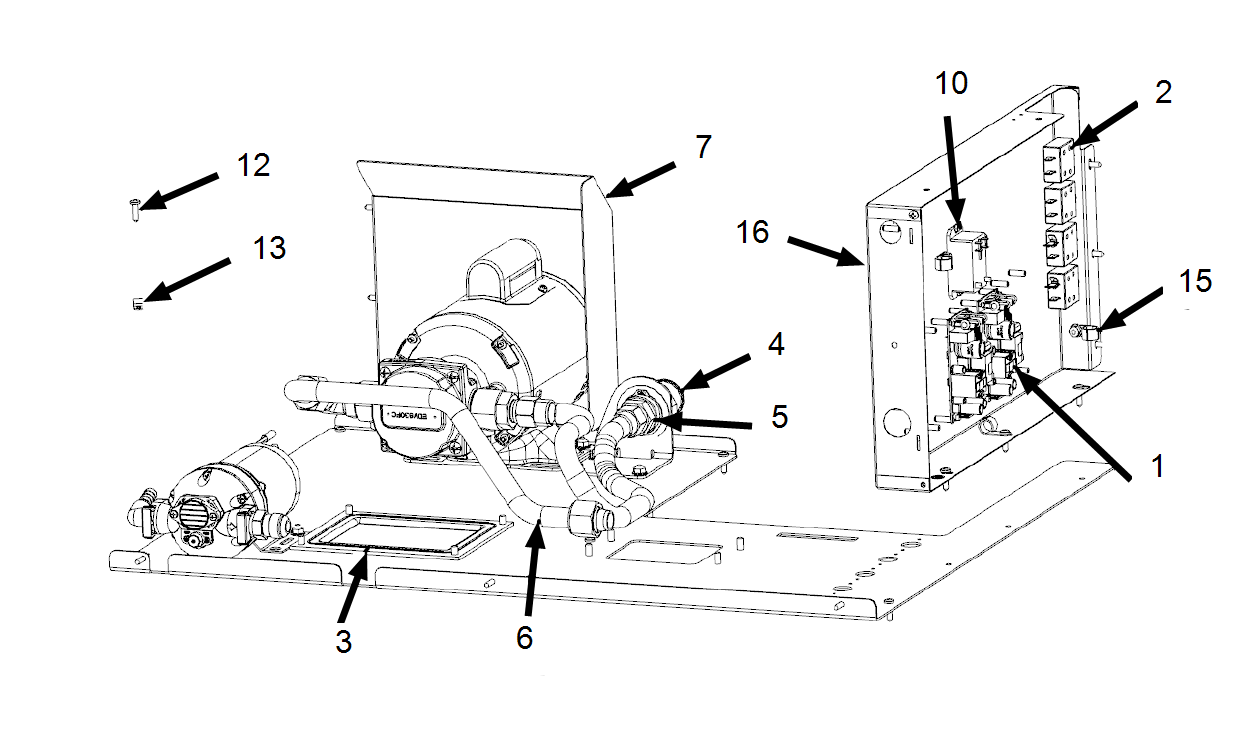

Chassis Interior Components
| Item No. | Part No. | Description | Qty. | Stocking Level |
|---|---|---|---|---|
| 1 | 177306 |
Power supply, 24 VDC (Change from qty. 4 to qty. 2 starting SN:LC2509208) |
2 | A |
| 2 | EF02-125 | Circuit breaker, 15 A | 4 | A |
| 3 | 186295 | Drain trough spout gasket service pack | 1 | |
| 4 | 180676 | Filter pan plug and play service pack | 1 | |
| 5 | 164642 | Plug and play connector fitting | 1 | |
| 6 | 175541 | OFE 512, 513, 514 Pump outlet tube assembly | 1 | |
| 7 | 140965 | Kit, motor shield (CE) (SN: LC2507030 & Below) |
1 | |
| 7 | 181385 | Motor shield assembly (CE) (SN: LC2507031 & Above) |
1 | |
| 7.1 | 179555 | -Motor shield (CE) (SN: LC2507031 & Above) |
1 | |
| 8* | 181198 | Motor reset cover (CE) | 1 | |
| 8.1* | SC01-285 | 8/32" x 3/8" thumb, SS screw | 1 | |
| 9* | 82914 | EMC filter board (CE) | 1 | |
| 10 | ME90-008 | Pump motor relay, 30amp, 12VDC | 1 | A |
| 11* | NS04-004 | Serrated flanged locknut, 10-24 | A/R | |
| 12 | SC03-006 | Screw, #10 x 3/4 Phillips | A/R | |
| 13 | EF02-058 | Nylon clamp, 3/16 DX 3/8 | A/R | |
| 14* | LW02-005 | Lock Washer, 10 internal | A/R | |
| 15 | EF02-184 | Clamp | A/R |
|
| 16 | 177867 | Power enclosure box | 1 | |
| 17* | 140975 |
Power Box Cover Kit (SN: LC2505020 & Before) (Only for power boxes w/ louvers) |
A/R | |
| Recommended Parts: A = Truck Stock; B = Dist. Stock
* = Not Shown A/R = As Required |
||||
ATO Reservoir JIB Shelf
-Shelf.png)
| Item No. | Part No. | Description | Qty. | Stocking Level |
|---|---|---|---|---|
| 9 | 161395 | OFE 512, 513, 514 ATO reservoir (JIB) shelf assembly | 1 | |
| 10 | 172898 | - Shelf glide service pack (Set of 2) | 1 | |
| 12 | 162759 | Door magnet | A/R | |
| 13* | 161149 | OFE 511 ATO reservoir box | 1 | |
| - | - | OFE 512, 513, 514 ATO (JIB) jug (See Accessories) | 1 | |
| Recommended Parts: A = Truck Stock; B = Dist. Stock
* = Not Shown A/R = As Required |
||||
