Full Vat Components and Heating Elements

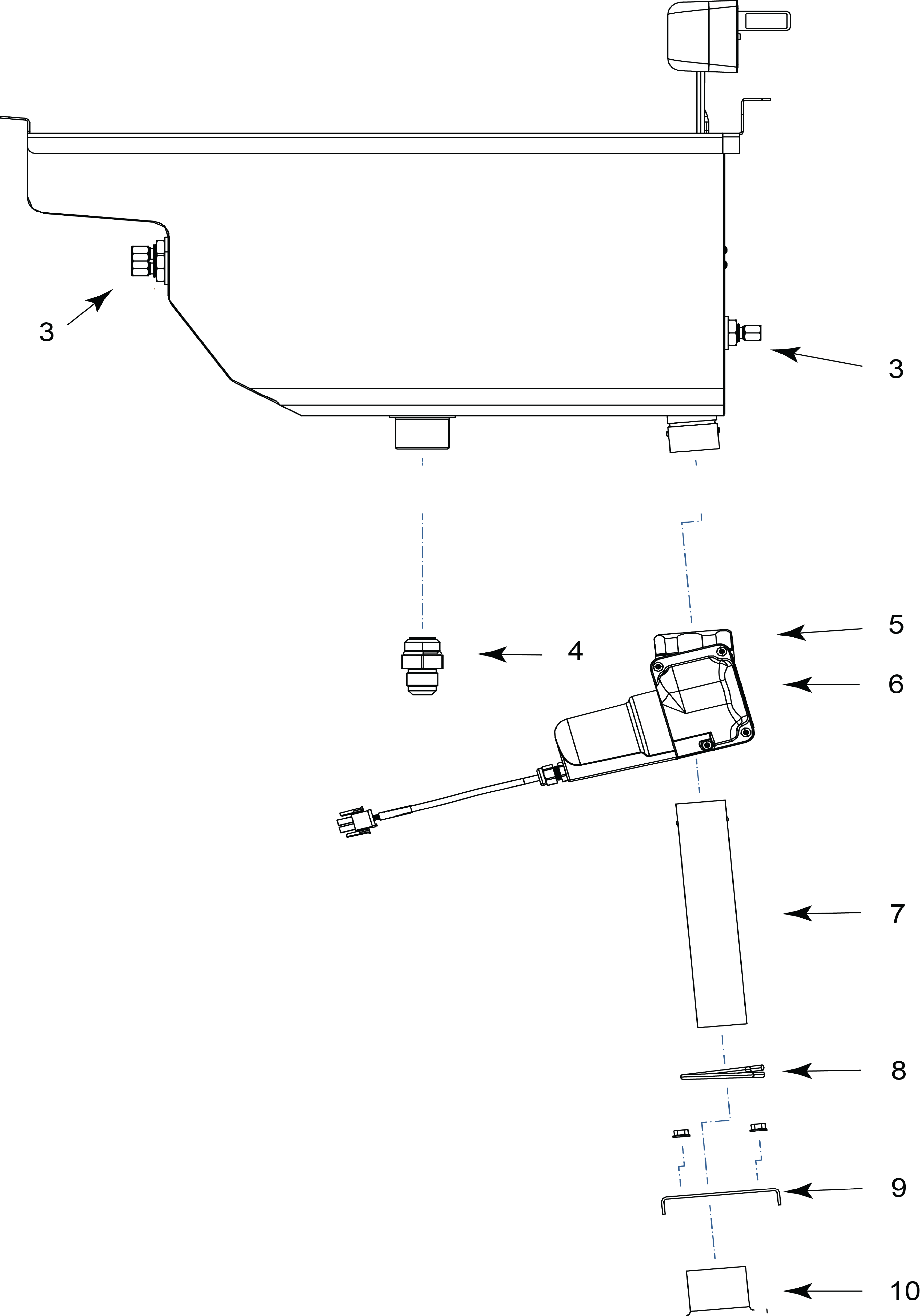

Exterior Components
| Item No. | Part No. | Description | Qty. | Stocking Level |
|---|---|---|---|---|
| 1* | 140712 |
Full vat replacement kit |
1 |
|
| 2.1* | 140714 |
Temperature probe kit, 2 in. (rear vat) |
1 |
A |
| 2.2* | 140637 | Level probe kit, 2-1/2 in. (front vat) | 2 | A |
| 3 | 185034 |
- Compression fitting, 3/16 in. |
3 |
|
| 4 | 159820 |
Check valve fitting |
1 |
A |
| 5 | 140244 |
Drain valve kit, without motor |
1 |
B |
| 5* | 84415 |
- Drain valve O-ring only |
2 |
|
| 6 | 86157 | Drain valve motor only |
1 |
B |
| 7 | 95704-007 |
Drain tube |
1 |
|
| 8 | MS01-315 |
Trough gasket clamp |
1 |
|
| 9 | 161216 |
Trough cover plate |
1 |
|
| 10* | NS04-004 | Trough cover plate flanged locknut | 4 | |
| 11* | 161771 | Trough cover plate gasket | 1 | |
| 12 | 172936-001 |
Full vat trough gasket service pack |
1 |
|
| 13.1* | 172933 |
1 Vat drain trough service pack |
1 |
|
| 13.2* | 172932 |
2 Vat drain trough service pack |
1 |
|
| 13.3* | 172931 |
3 Vat drain trough service pack |
1 |
|
| 13.4* | 172930 |
4 Vat drain trough service pack |
1 |
|
| Recommended Parts: A = Truck Stock; B = Dist. Stock * = Not Shown |
||||

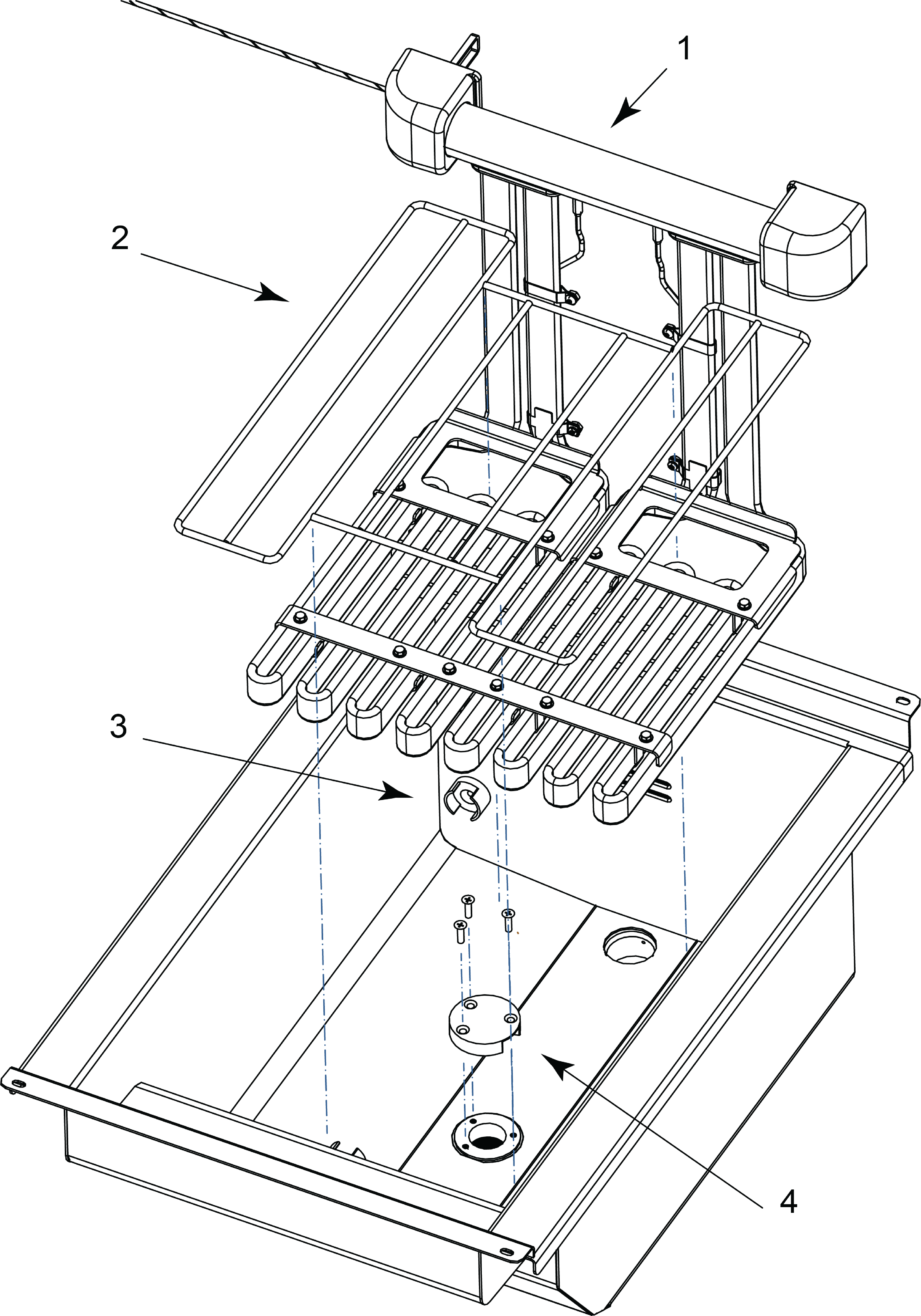

Interior Components
| Item No. | Part No. | Description | Qty. | Stocking Level |
|---|---|---|---|---|
| 1 | 180681-001 |
Full vat heating element service pack, 14 kW, 208 VAC, 3 Wire, 3+G |
1 |
B |
| 1 | 180681-002 |
Full vat heating element service pack, 14 kW, 230/400 VAC, 4 Wire, 3NG |
1 |
B |
| 1 | 180681-005 |
Full vat heating element service pack, 14 kW, 220/380 VAC, 4 Wire, 3NG |
1 |
B |
| 1 | 180681-006 |
Full vat heating element service pack, 14 kW, 240/415 VAC, 4 Wire, 3NG |
1 |
B |
| 1 | 180681-008 |
Full vat heating element service pack, 14 kW, 230 VAC, 3 Wire, 3+G |
1 |
B |
| 1 | 180681-009 |
Full vat heating element service pack, 14 kW, 240 VAC, 3 Wire, 3+G |
1 |
B |
| 2 |
159881 |
Full vat rack |
1 |
|
| 3 |
140773 |
Probe guard, compression fitting - Service Pack |
3 |
|
| 4 | 180684 | Oil diverter cover service pack | 1 | |
| 4* | SC01-286 | - Screw, #8-32 x .75, PH, FHD, SS | A/R | |
| Recommended Parts: A = Truck Stock; B = Dist. Stock * = Not Shown A/R = As Required |
||||

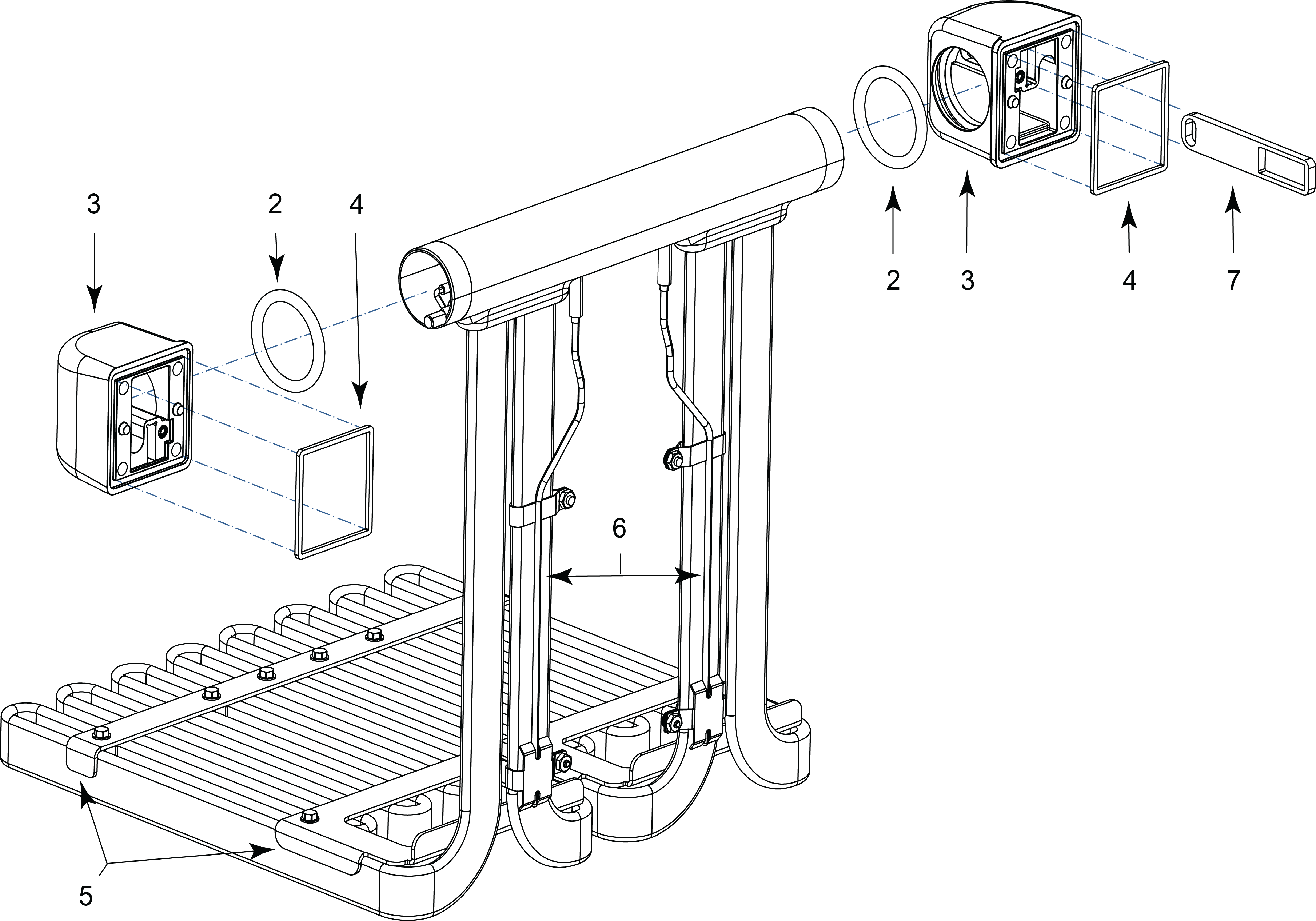

Heating Element Components
| Item No. | Part No. | Description | Qty. | Stocking Level |
|---|---|---|---|---|
| 1* | 180681-XXX |
Full vat heating element service pack |
1 |
B |
| 2 |
76948 |
- Pivot block o-ring |
2 |
|
| 3 |
86303 |
- Pivot block |
2 |
|
| 4 |
86306 |
- Pivot block gasket |
2 |
|
| 5 |
180685 |
- Full vat element brackets service pack |
1 |
|
| 6 |
180687 |
- High limit RTD service pack |
2 |
A |
| 7 |
83038 |
Element tilt switch arm |
1 |
|
| 8* |
83096 |
Element tilt switch |
1 |
A |
| 9* | 169428 | Full vat element bar | A/R | |
| 10* | SC04-024 | Screw #8-32 X 3/8 Hex HD SS | A/R | |
| Recommended Parts: A = Truck Stock; B = Dist. Stock * = Not Shown A/R = As Required |
||||
