Wiring Harnesses

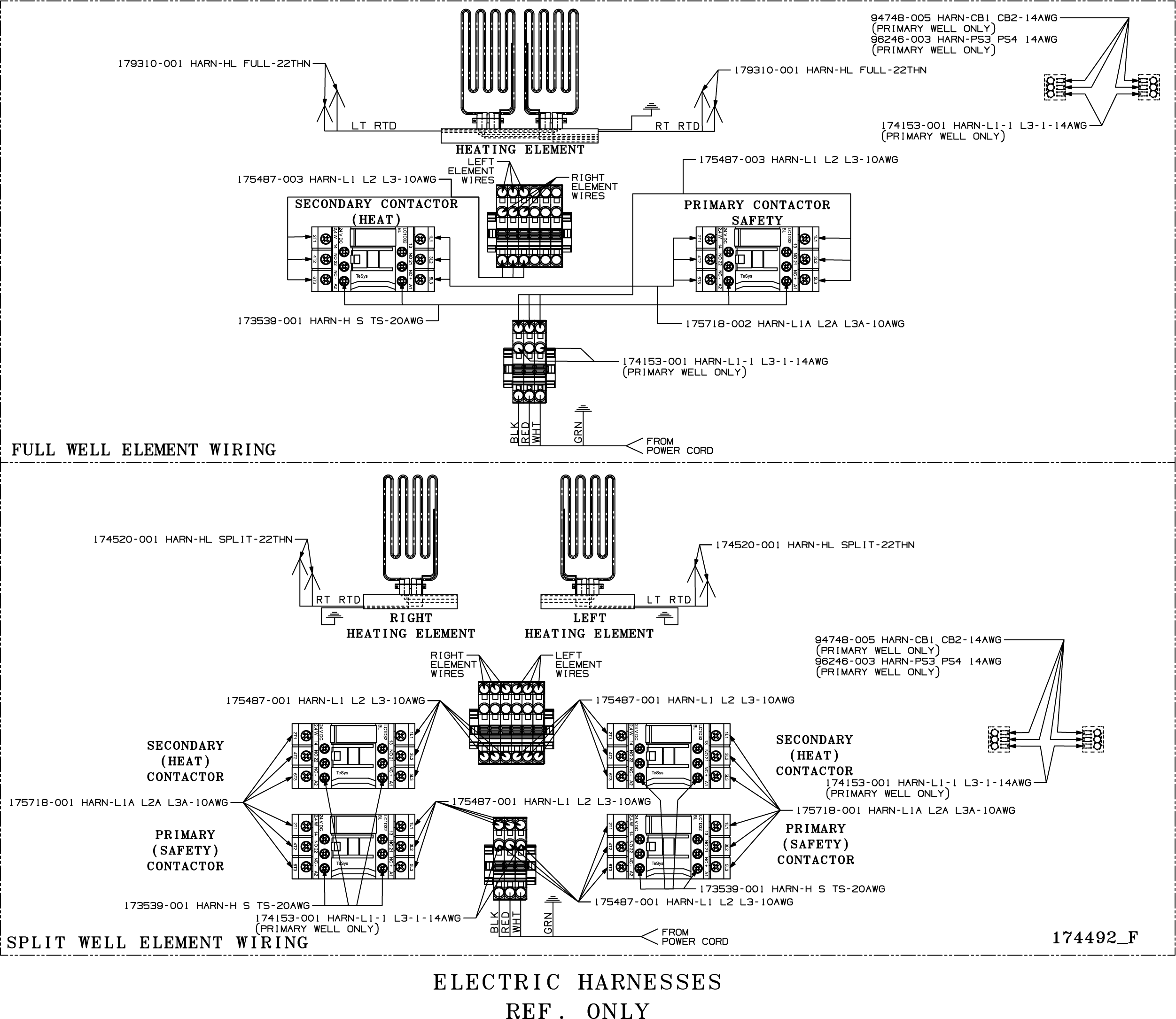

174492 F Non-interlock, 208-240V, 3+G, 14kW Electric Harness Diagram

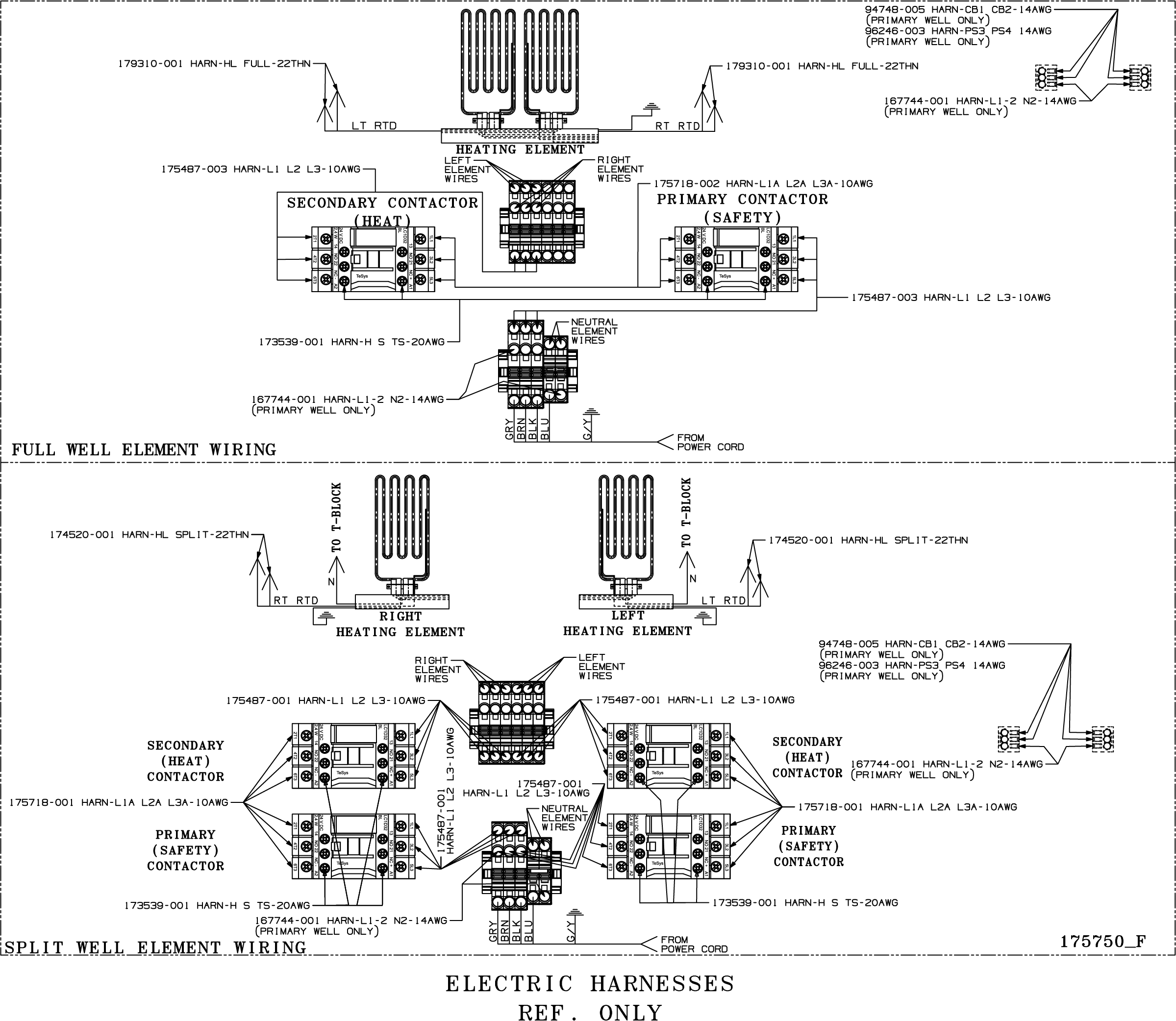

175750 F Non-interlock, 380-415V, 3pH, 3NG Electric Harness Diagram

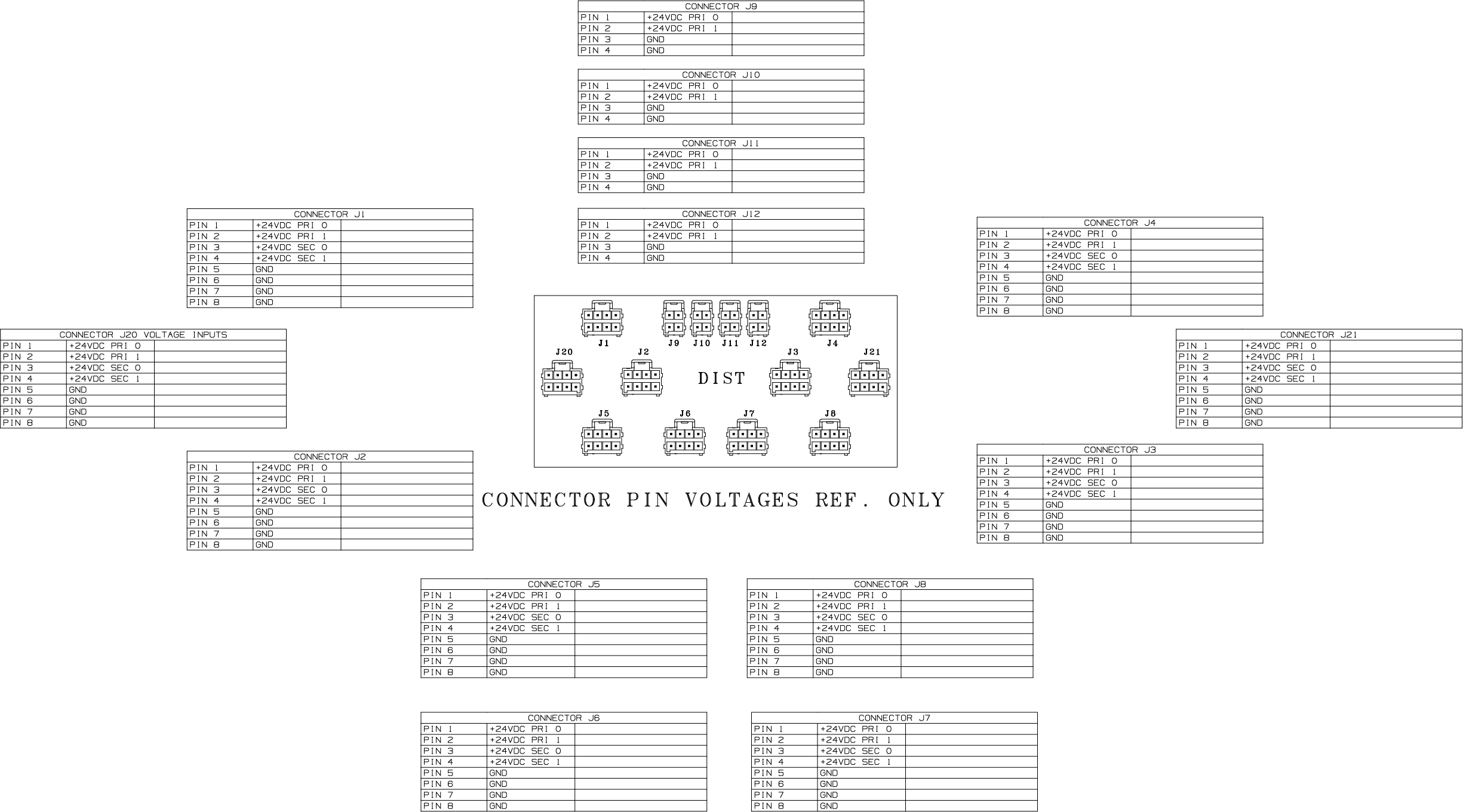

175924 F OMS Power Distribution Electric Harness Diagram

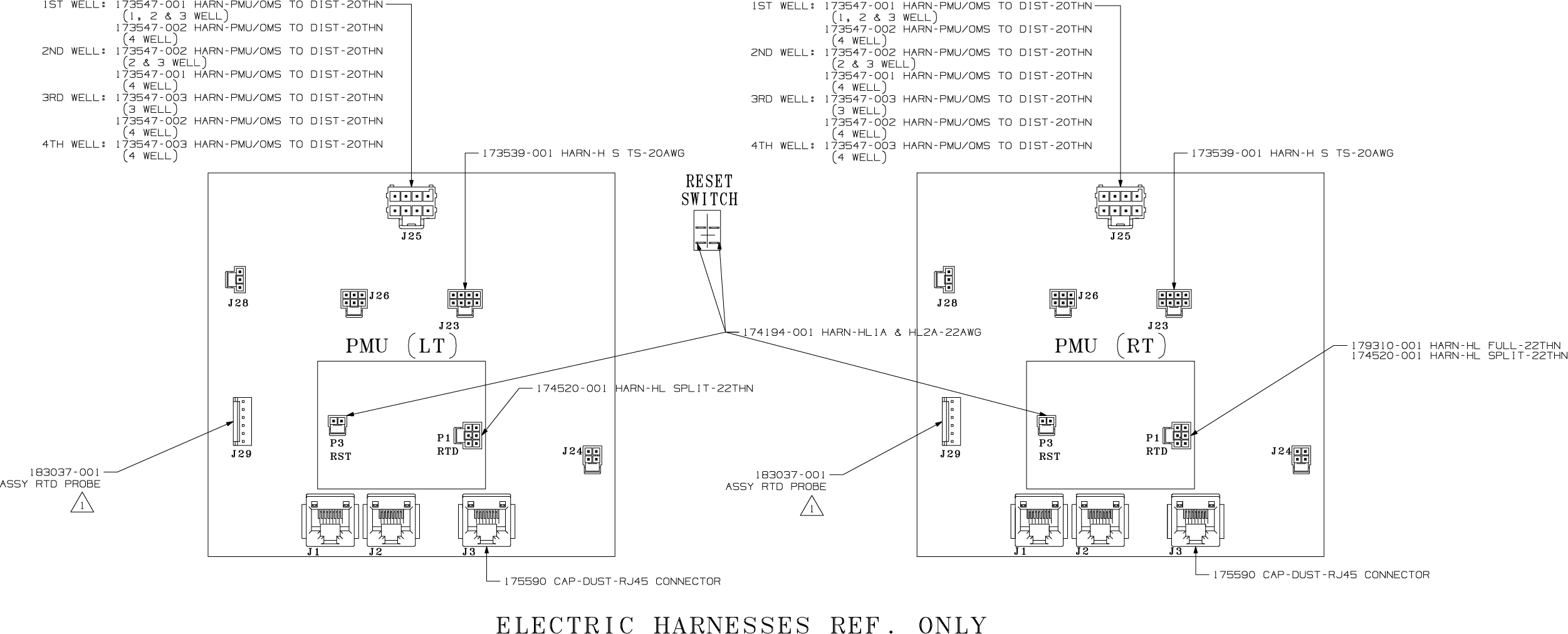

175945 C PMU/ High Limit Board Electric Harness Diagram

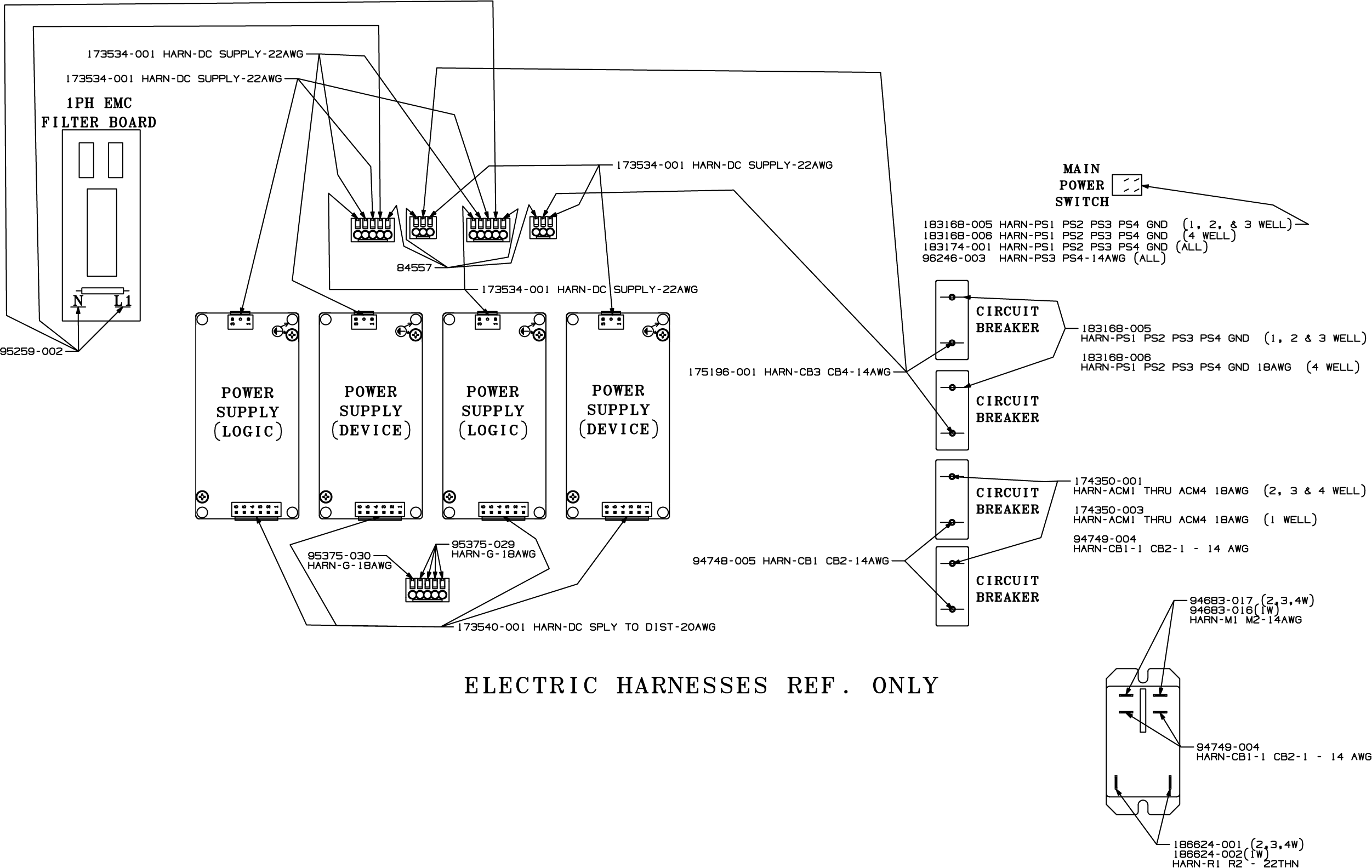

175946 J Non-Interlock Power Box Electric Harness Diagram

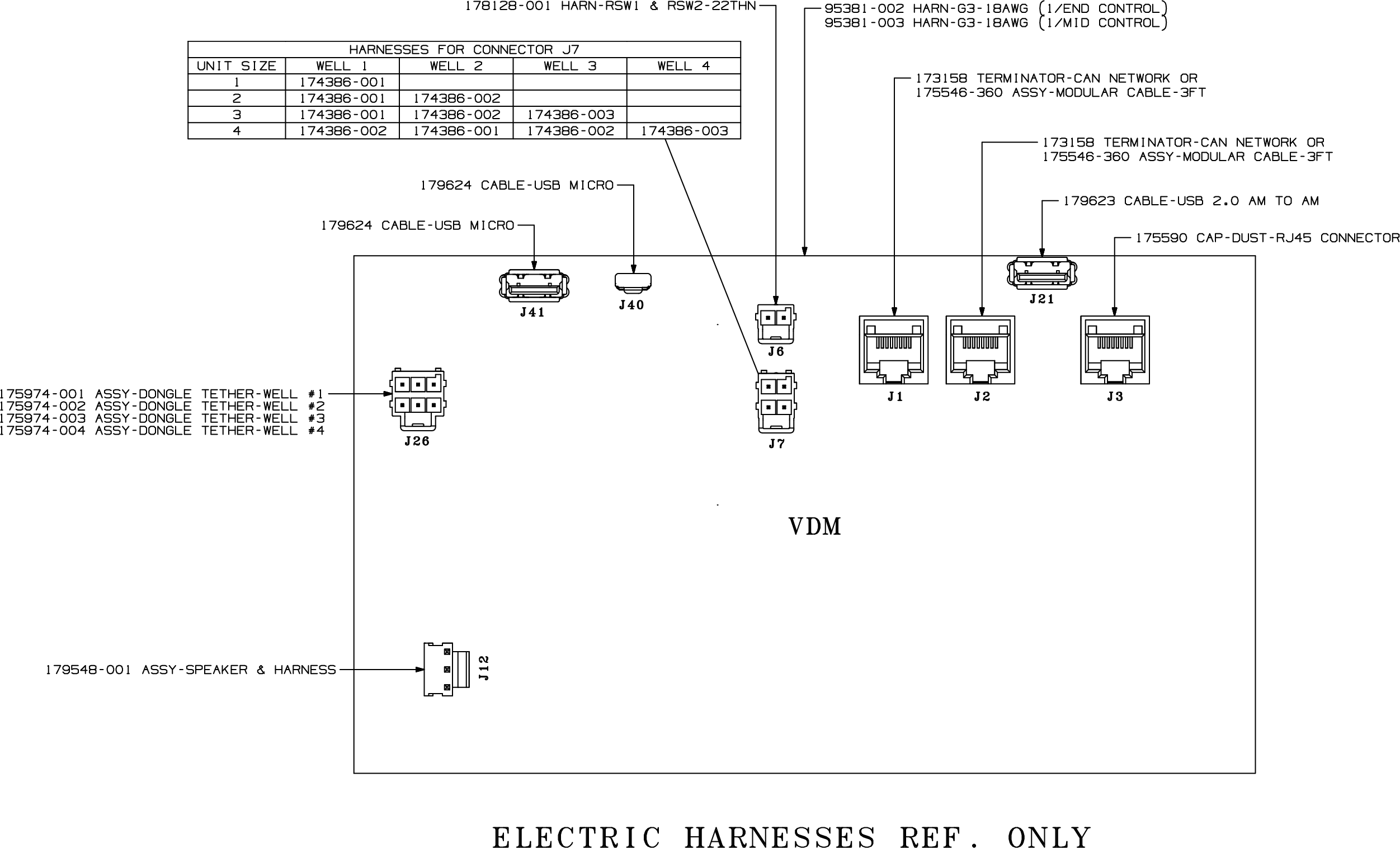

175955 C VDM Board Electric Harness Diagram

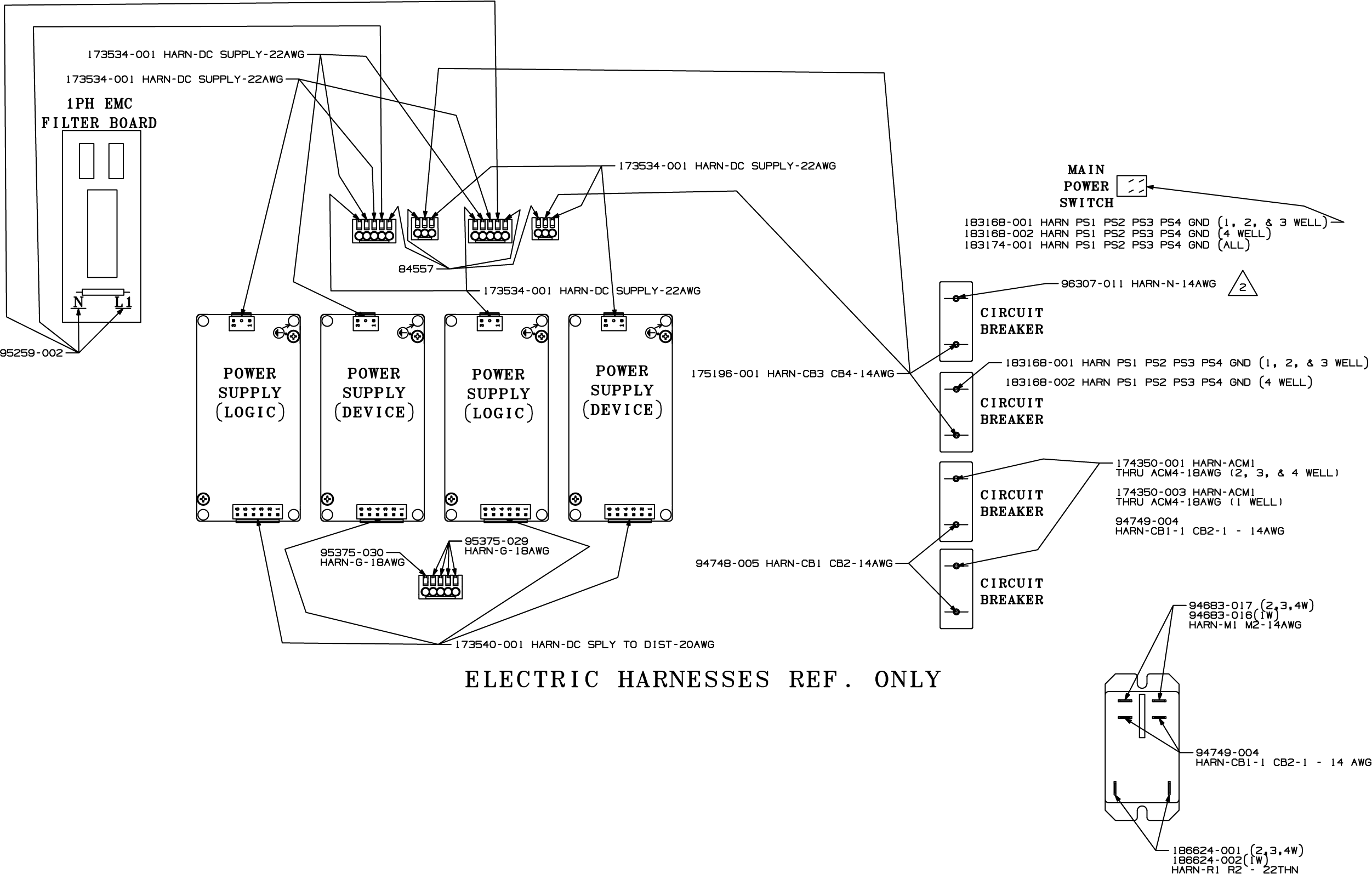

176076 L 5 Wire Interlock Power Box Electric Harness Diagram

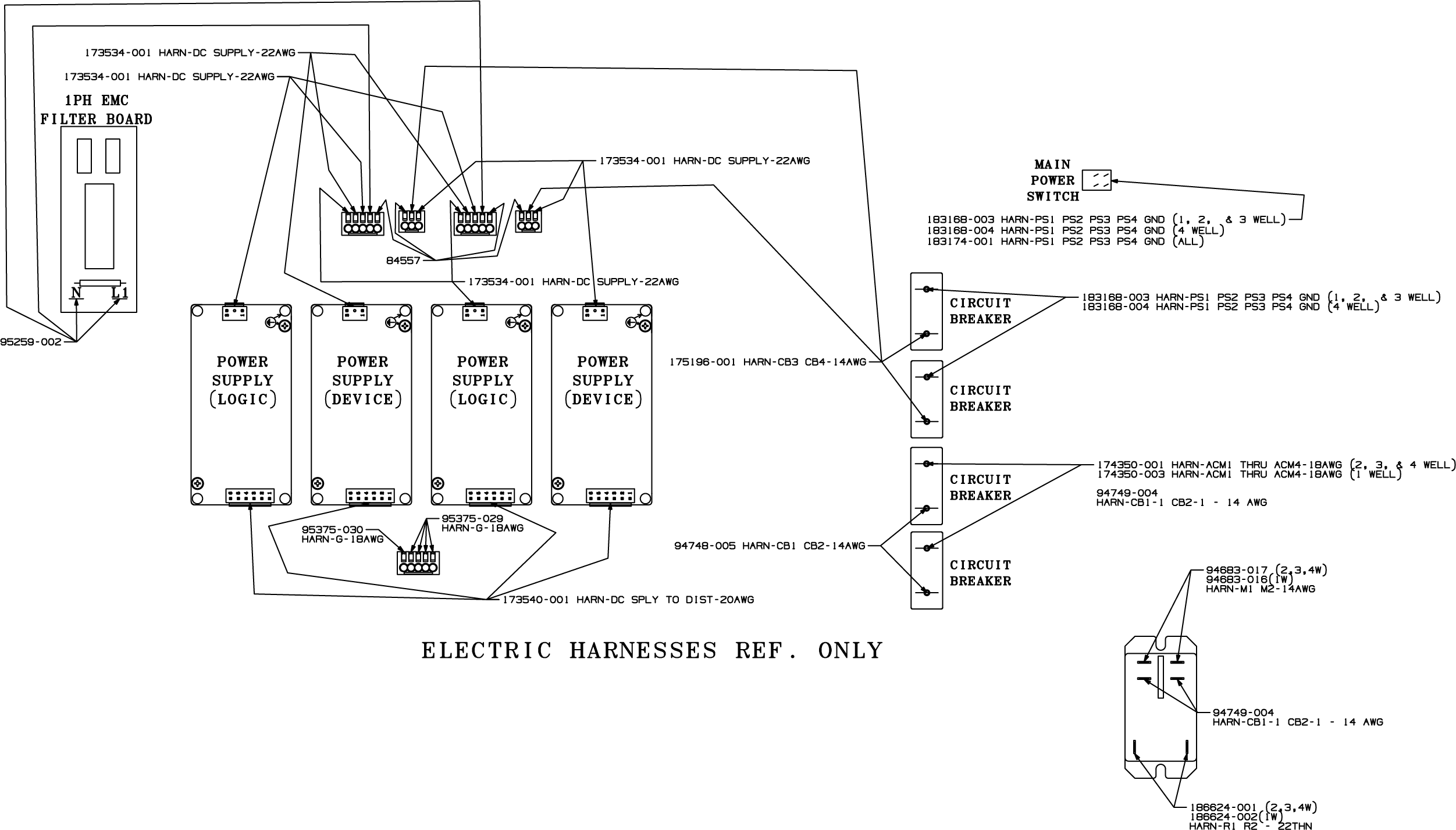

176081 J 3 Wire Interlock Power Box Electric Harness Diagram

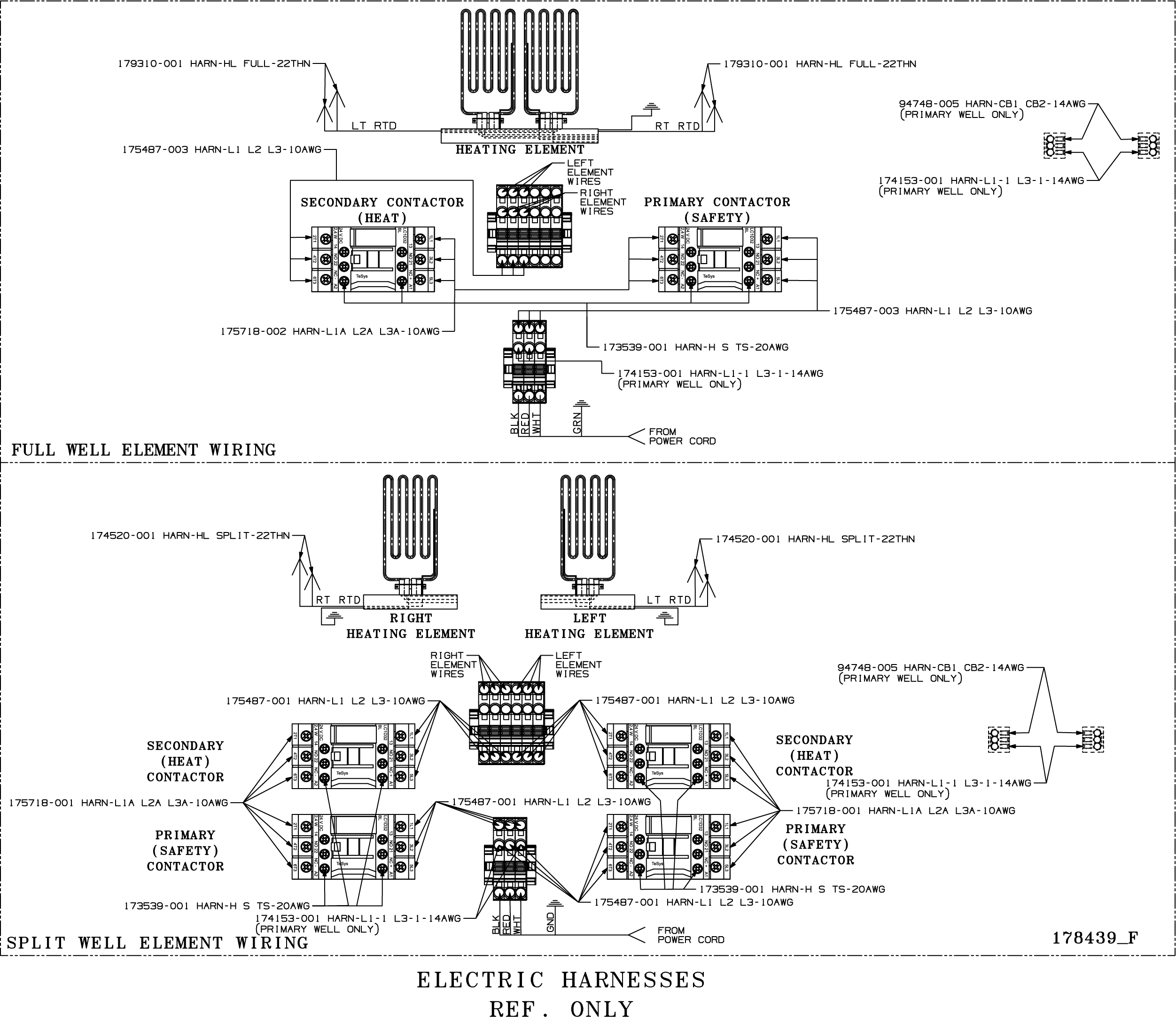

178439 F Interlock, 208-240V, 3+G, 14kW Electric Harness Diagram

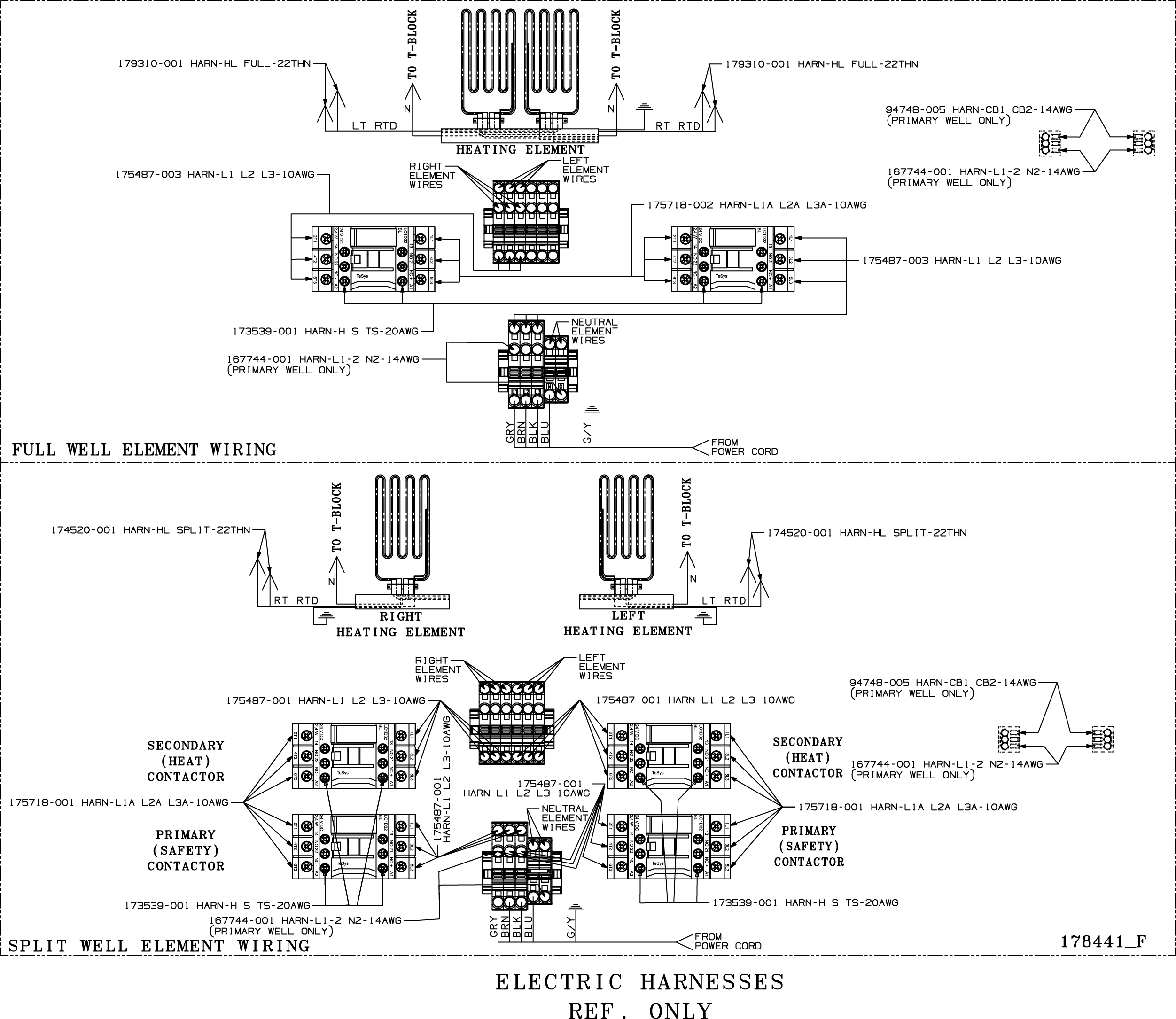

178441 F Interlock, 380-415V, 3pH, 3NG Electric Harness Diagram

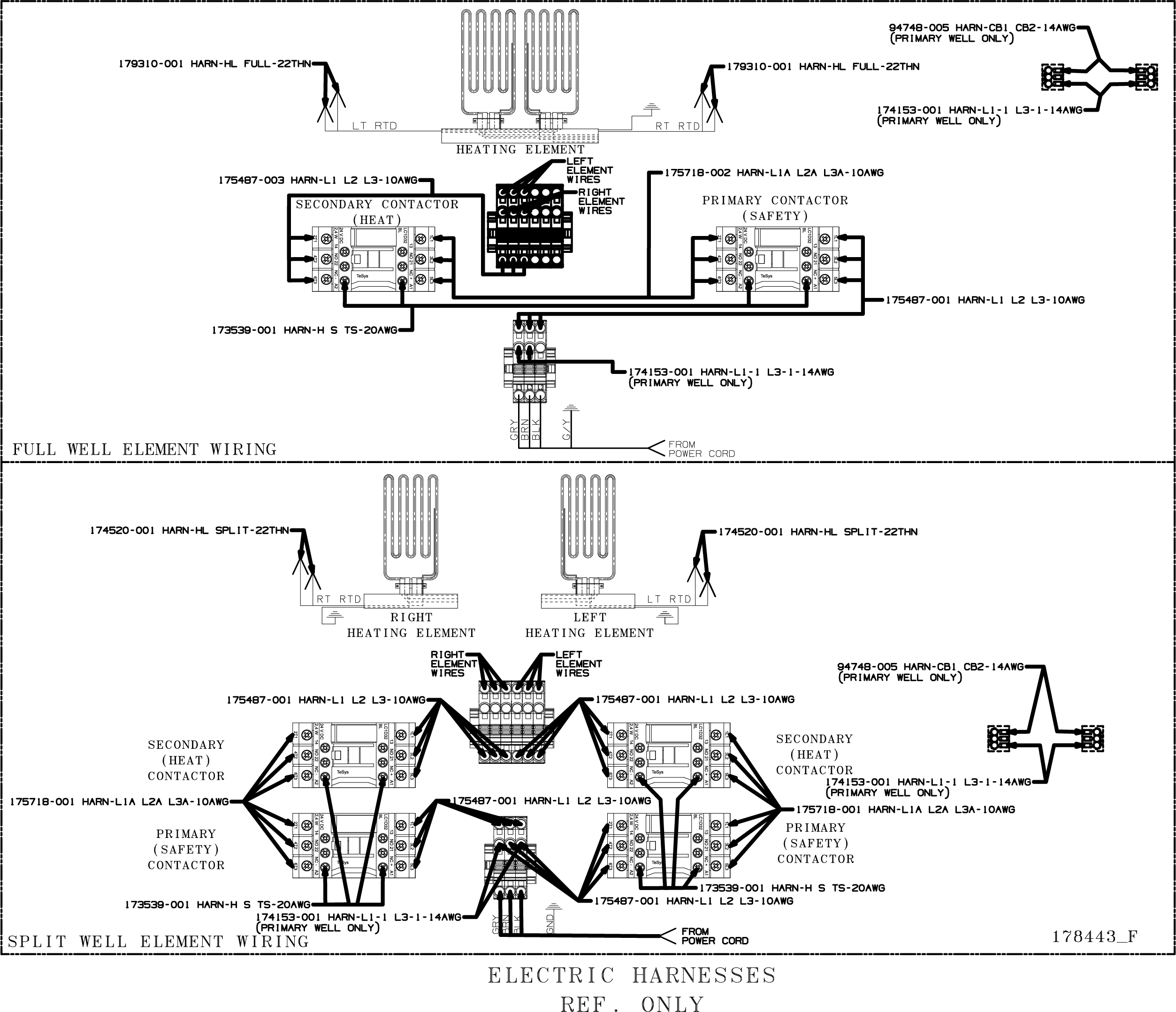

178443 F Interlock 220-240V, 3+G, 3NG Electric Harness Diagram

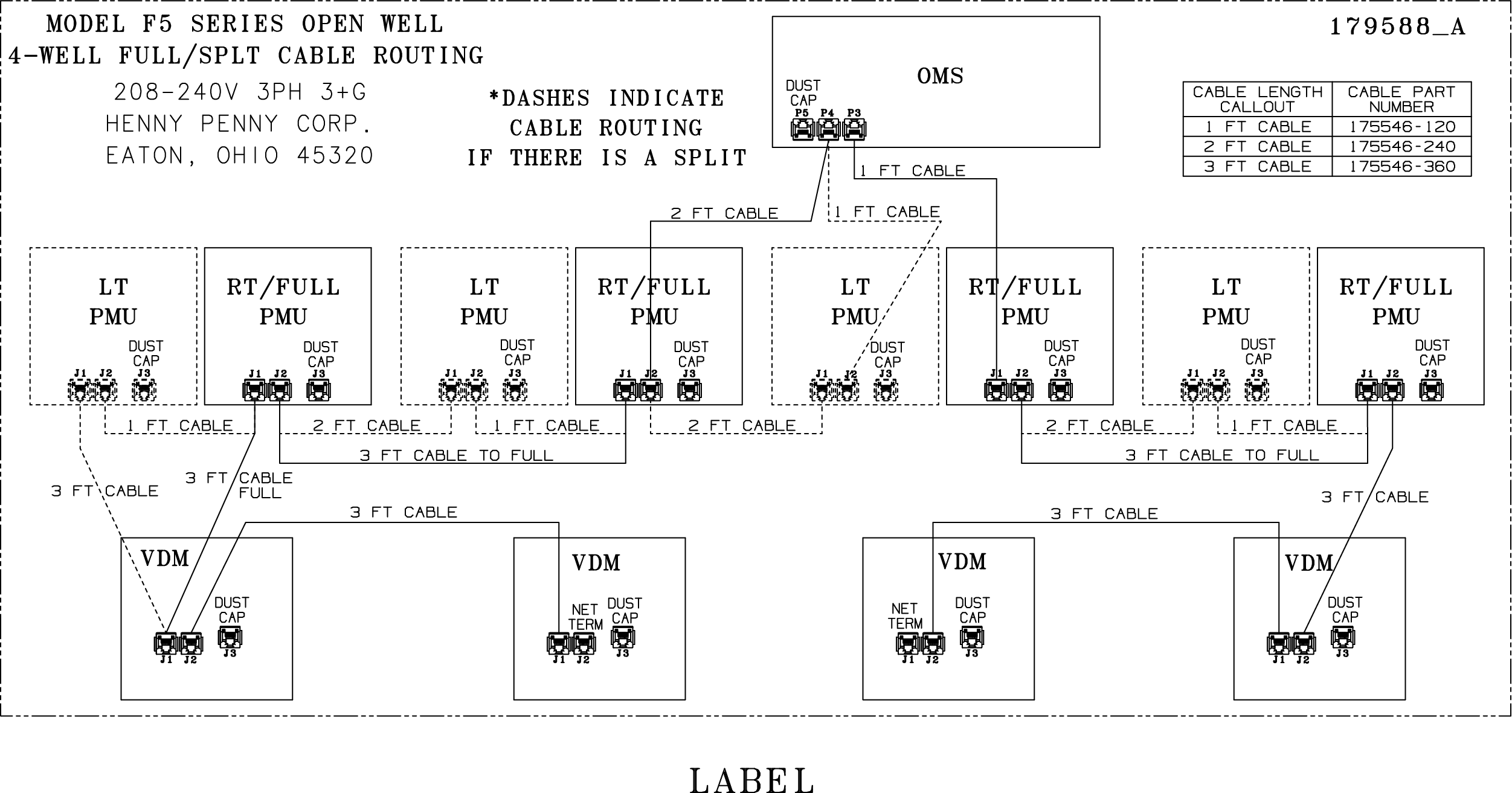

179588 A Four Vat Cable Routing Diagram
