Chassis Exterior

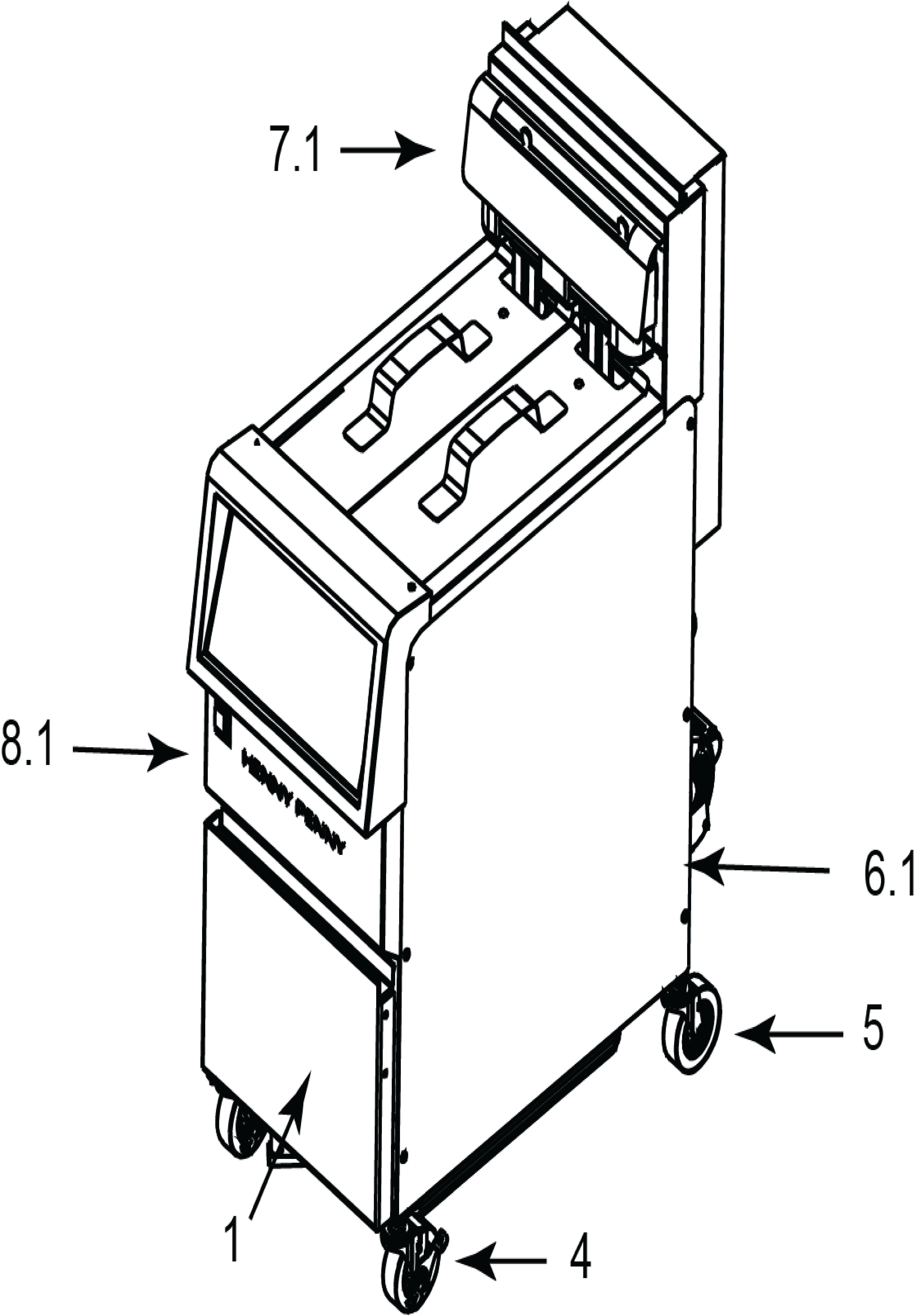

Chassis Exterior

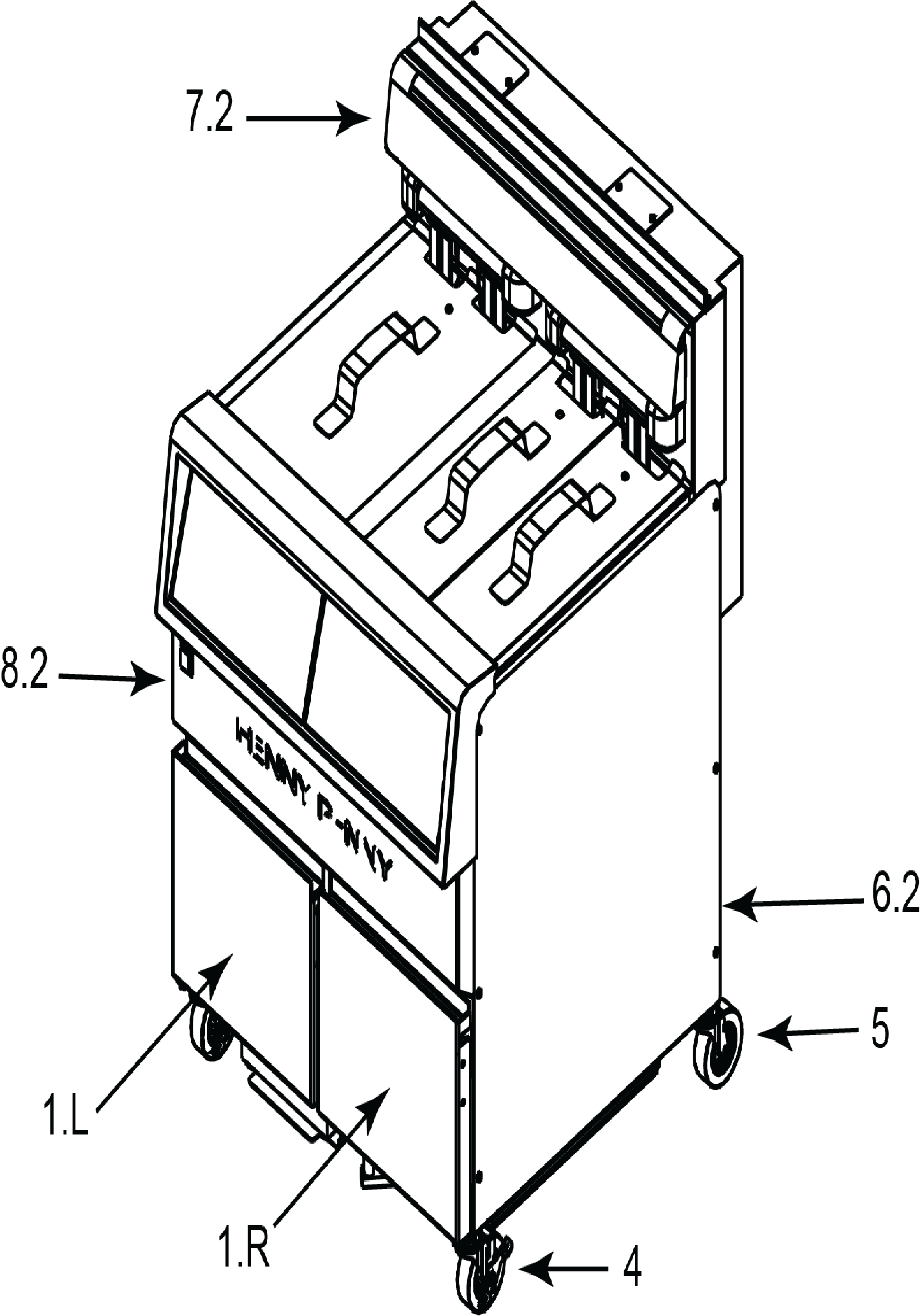

Chassis Exterior - OFE 512

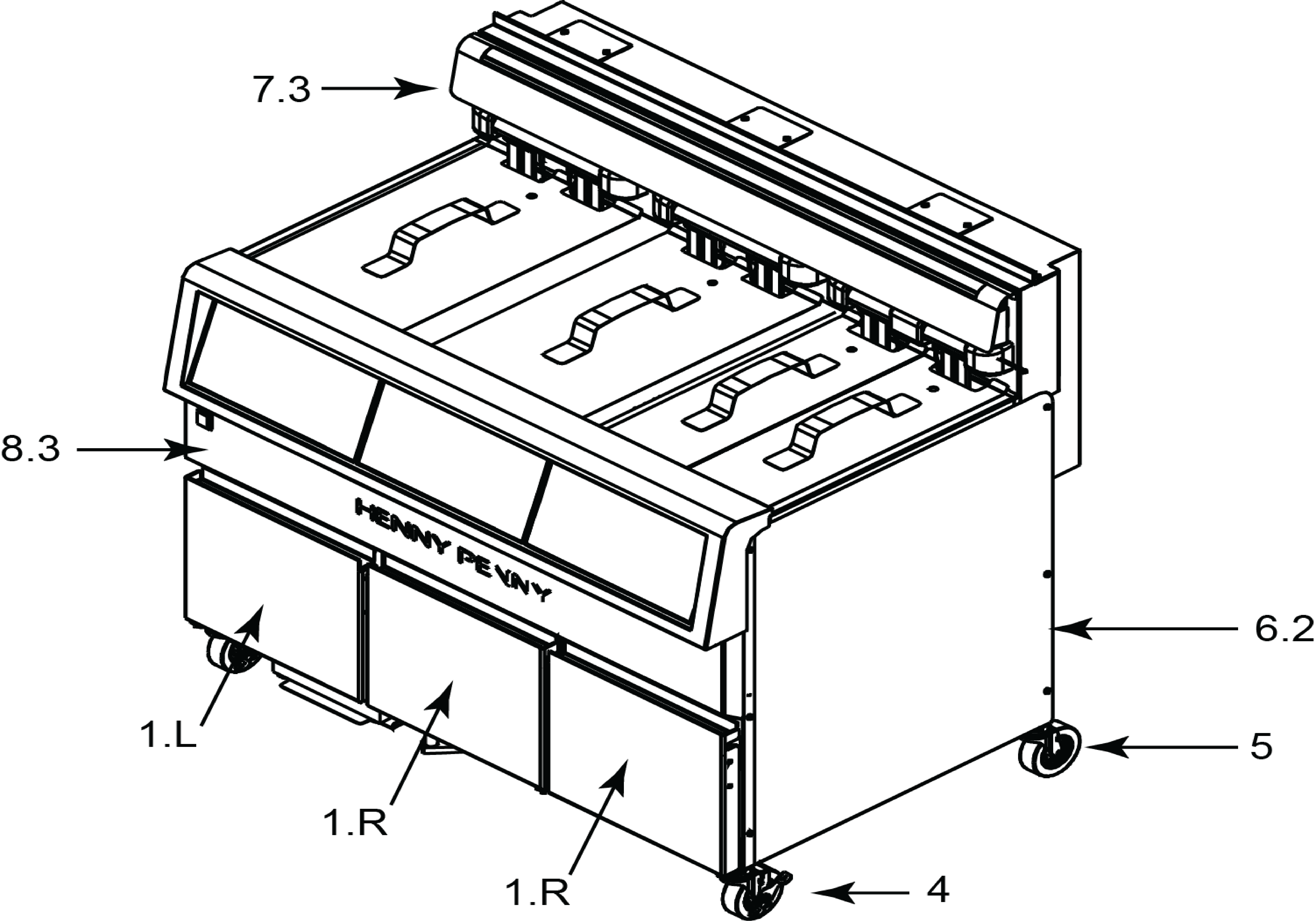

Chassis Exterior - OFE 513

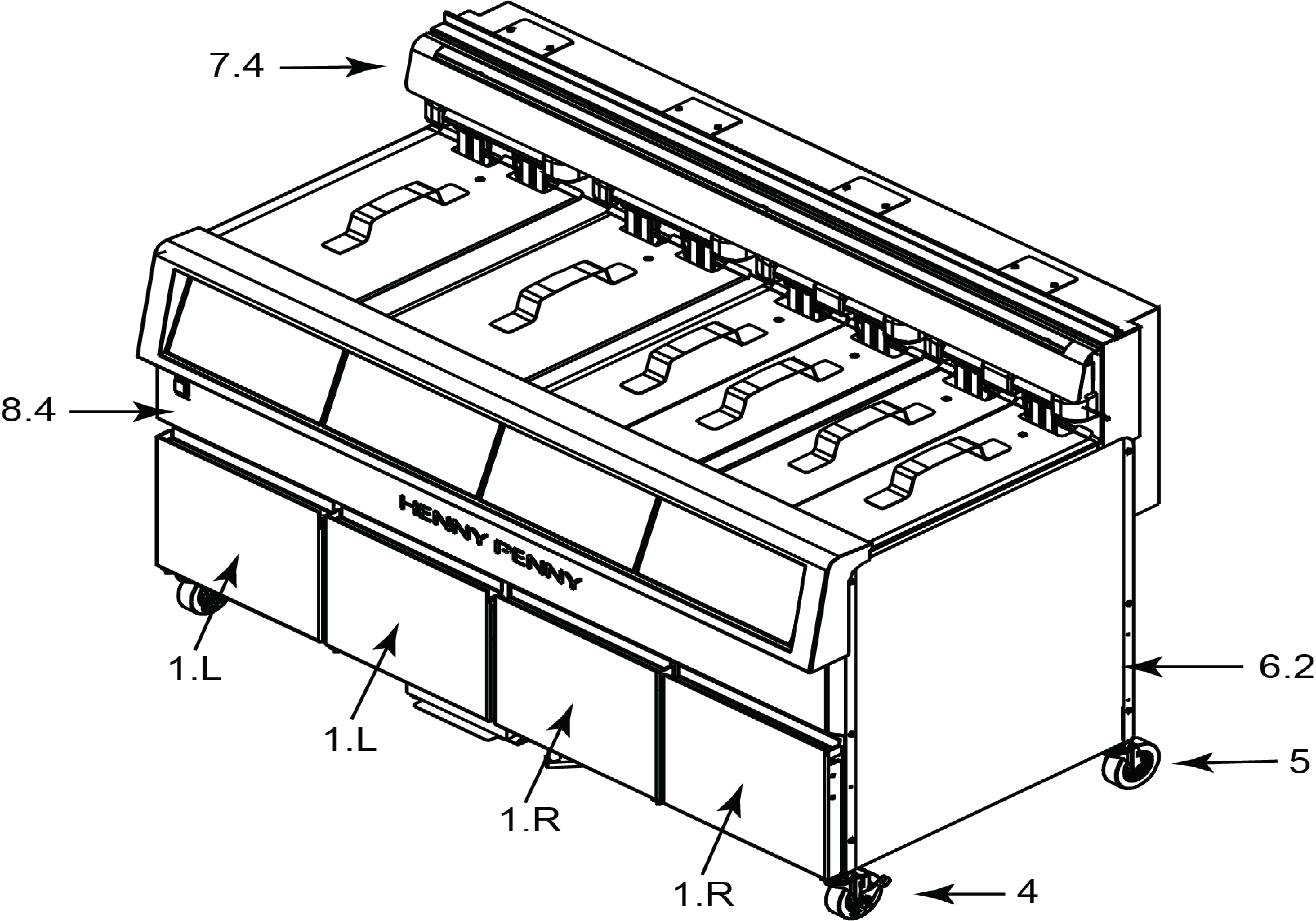

Chassis Exterior - OFE 514
| Item No. | Part No. | Description | Qty. | Stocking Level |
|---|---|---|---|---|
| 1 | 176628 | OFE 511 Door assembly | 1 | |
| 1.L | 175477 | OFE 512, 513, 514 Left hinge door assembly | A/R | |
| 1.R | 175480 | OFE 512, 513, 514 Right hinge door assembly | A/R | |
| 2.L* | 172897-001 | Left hinge hardware service pack | A/R | |
| 2.R* | 172897-002 | Right hinge hardware service pack | A/R | |
| 3* | 172972 | Door bushing/clip service pack (Set of 4) | 1 | |
| 4 | 172895 | Locking (front) caster service pack | 2 | |
| 5 | 172896 | Non-locking (rear) caster service pack | 2 | |
| 6.1 | 164568 | OFE 511 Side panel | 2 | |
| 6.2 | 164577 | OFE 512, 513, 514 Side panel | 2 | |
| 7.1 | 164001 | OFE 511 Basket hanger | 1 | |
| 7.2 | 162309 | OFE 512 Basket hanger | 1 | |
| 7.3 | 163234 | OFE 513 Basket hanger | 1 | |
| 7.4 | 163246 | OFE 514 Basket hanger | 1 | |
| 8.1 | 180037 | OFE 511 Mid shelf cover | 1 | |
| 8.2 | 179409 | OFE 512 Mid shelf cover | 1 | |
| 8.3 | 180038 | OFE 513 Mid shelf cover | 1 | |
| 8.4 | 180044 | OFE 514 Mid shelf cover | 1 | |
| 9* | 162759 | Door magnet | 1 | |
| - | - | Control panel (See Control Panel) | A/R | |
| - | - | Power switch (See Control Panel) | 1 | |
| - | - | Power switch decal (See Control Panel) | 1 | |
| Recommended Parts: A = Truck Stock; B = Dist. Stock
* = Not Shown A/R = As Required |
||||
