Contactors and Power Cord

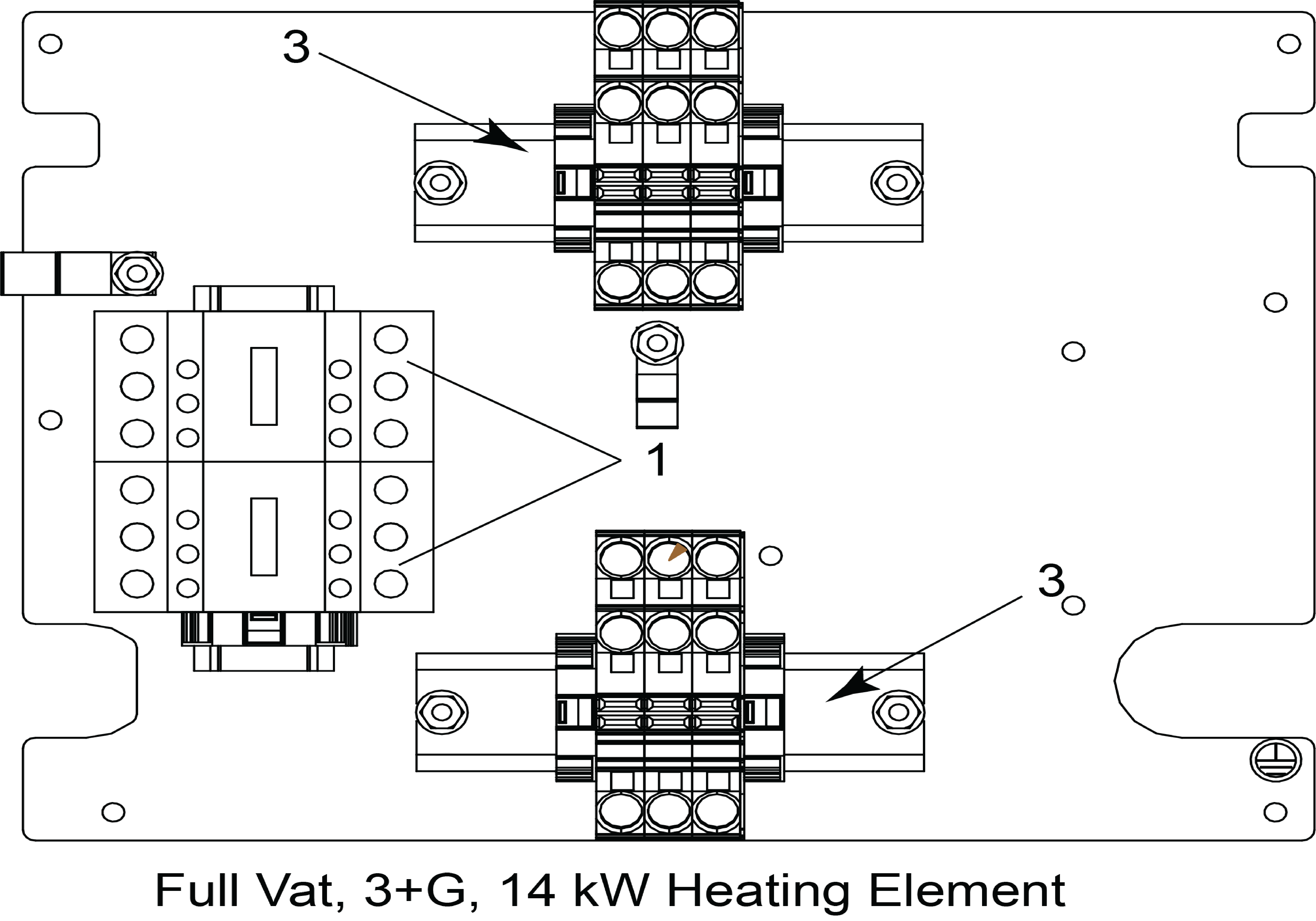

Contactors and Terminal Blocks - Full Vat, 3+G, 14 kW Heating Element
Note:
- 3+G = 3 phase and ground wires
- Contactor terminal screw torque: Line VAC power circuit, 22 lbf-in (2.5 N-m)
- Contactor terminal screw torque: 24 VDC control circuit, 15 lbf-in (1.7 N-m)
Contactors and Terminal Blocks - Full Vat, 3+G, 17 kW Heating Element
Note:
- 3+G = 3 phase and ground wires
- Contactor terminal screw torque: Line VAC power circuit, 22 lbf-in (2.5 N-m)
- Contactor terminal screw torque: 24 VDC control circuit, 15 lbf-in (1.7 N-m)

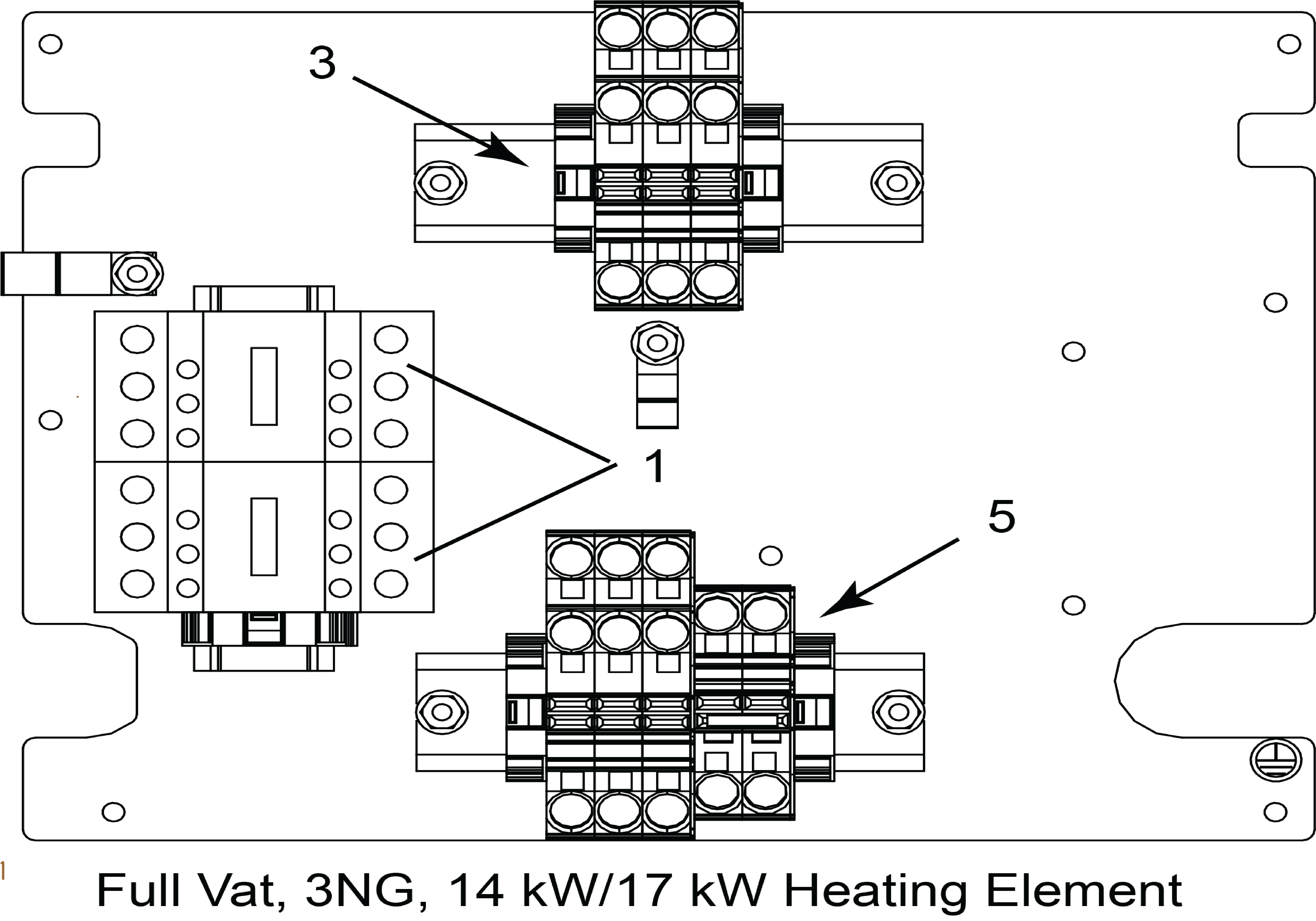

Contactors and Terminal Blocks - Full Vat, 3NG, 14 kW/17 kW Heating Element
Note:
- 3NG = 3 phase, neutral, and ground wires
- Contactor terminal screw torque: Line VAC power circuit, 22 lbf-in (2.5 N-m)
- Contactor terminal screw torque: 24 VDC control circuit, 15 lbf-in (1.7 N-m)

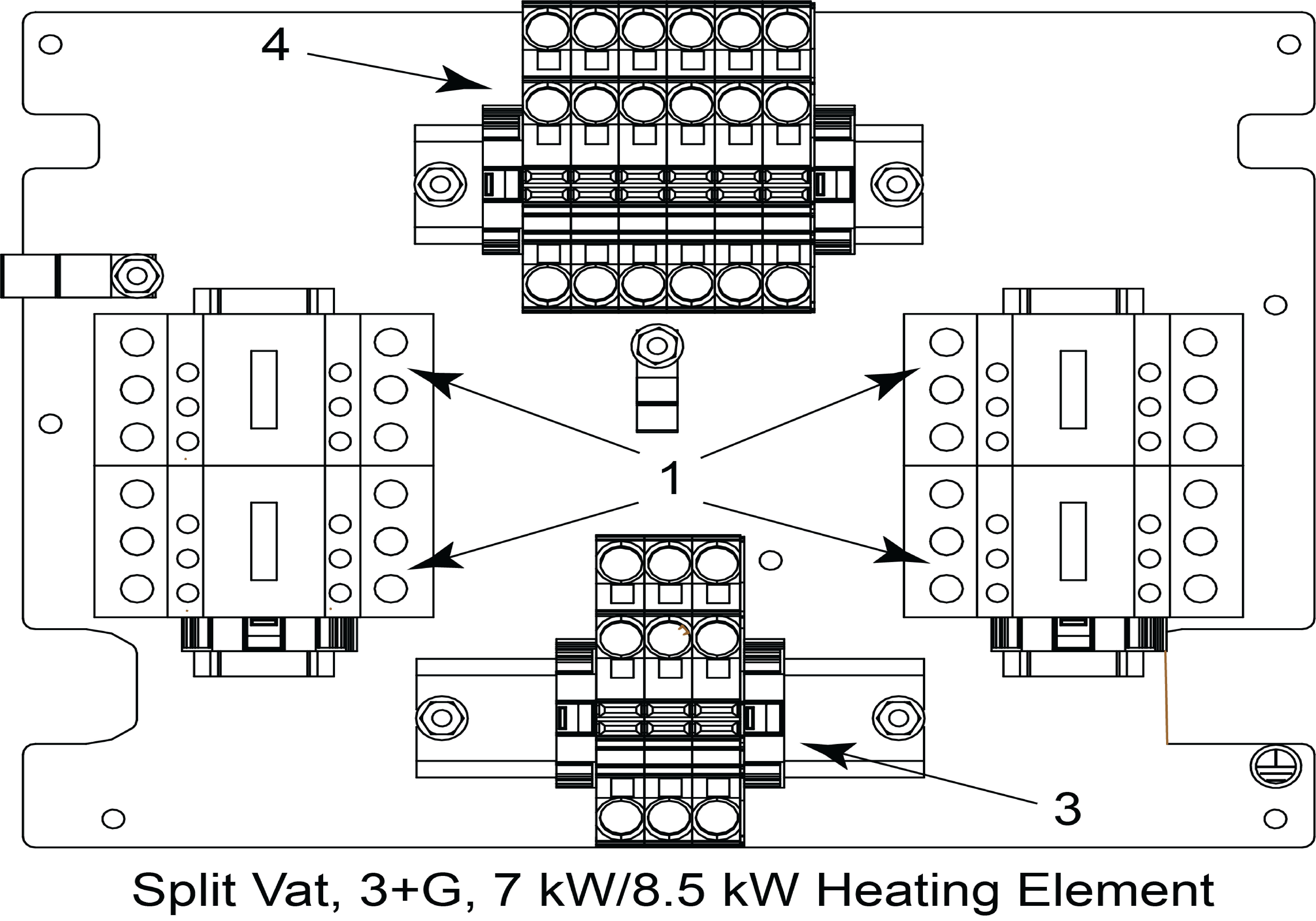

Contactors and Terminal Blocks - Split Vat, 3+G, 7 kW/8.5 kW Heating Element
Note:
- 3+G = 3 phase and ground wires
- Contactor terminal screw torque: Line VAC power circuit, 22 lbf-in (2.5 N-m)
- Contactor terminal screw torque: 24 VDC control circuit, 15 lbf-in (1.7 N-m)

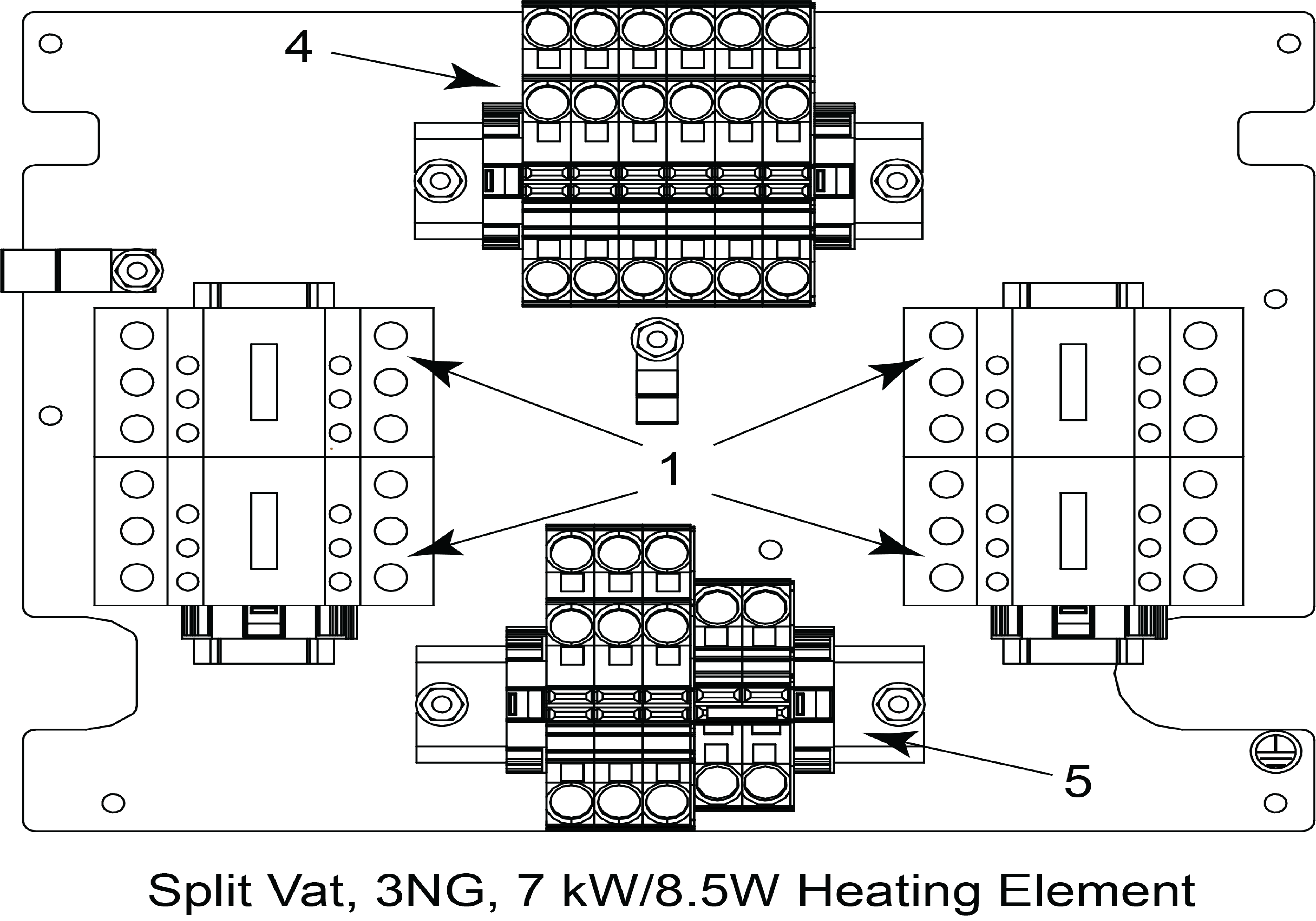

Contactors and Terminal Blocks - Split Vat, 3NG, 7kW/8.5kW Heating Element
Note:
- 3NG = 3 phase, neutral, and ground wires
- Contactor terminal screw torque: Line VAC power circuit, 22 lbf-in (2.5 N-m)
- Contactor terminal screw torque: 24 VDC control circuit, 15 lbf-in (1.7 N-m)
| Item No. | Part No. | Description | Qty. | Stocking Level |
|---|---|---|---|---|
| 1 | 175375 | Contactor, 24 VDC | A/R | A |
| 2 | 175681 | Terminal block assembly-3, 3 pole | A/R | |
| 4 | 175679 | Terminal block assembly-6, 3 pole | A/R | |
| 5 | 175682 | Terminal block assembly-3, 3 pole, -2, 2 pole | A/R | |
| Recommended Parts: A = Truck Stock; B = Dist. Stock
* = Not Shown A/R = As Required |
||||
Power Cord Assemblies
| Item No. | Part No. | Description | Qty. | Stocking Level |
|---|---|---|---|---|
| 1* | 164521-001 | Power cord assembly, right angle plug, 208/240 VAC, 50 A, 3+G, N. America | A/R | |
| 1* | 164521-002 | Power cord assembly, right angle plug, 208/240 VAC, 60 A, 3+G, N. America | A/R | |
| 1* | 164520-001 | Power cord assembly, straight plug, 208/240 VAC, 50 A, 3+G, N. America | A/R | |
| 1* | 164520-002 | Power cord assembly, straight plug, 208/240 VAC, 60 A, 3+G, N. America | A/R | |
| 1* | 168890-001 | Power cord assembly, pin and sleeve, 3NG, CE | ||
| 1* | 168890-002 | Power cord assembly, straight plug, 3NG, Hong Kong / Singapore | ||
| 1* | 179978 | Power cord assembly, straight plug, ground clamp, 3NG, AU | A/R | |
| 1* | 179980 | Power cord assembly, straight plug, ground clamp, 3NG, NZ | A/R | |
| Recommended Parts: A = Truck Stock; B = Dist. Stock
* = Not Shown A/R = As Required |
||||
