Filter Pump and Motor

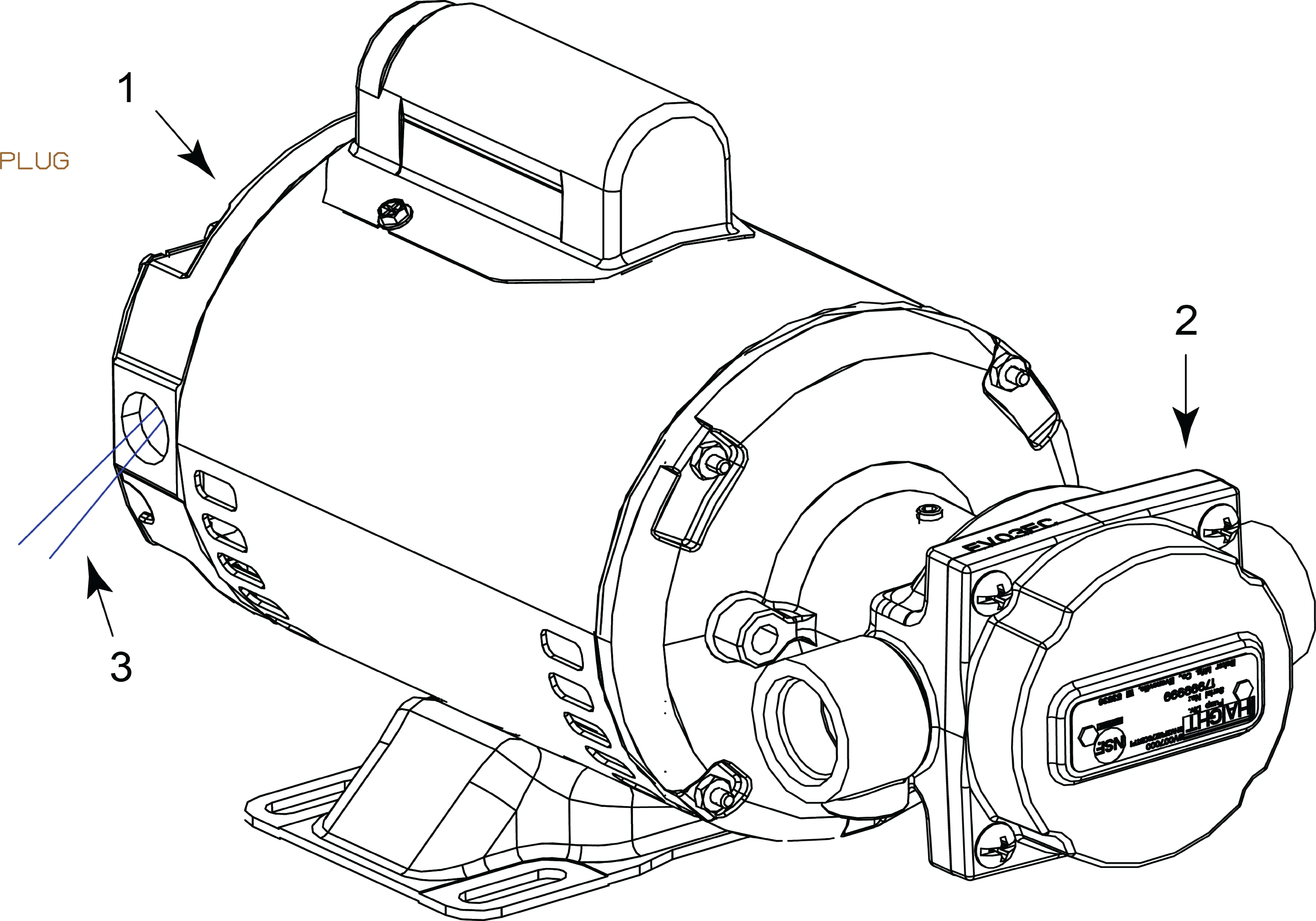

Filter Pump with Motor
| Item No. | Part No. | Description | Qty. | Stocking Level |
|---|---|---|---|---|
| 1 | 164184-001 | Filter pump motor, 60 Hz. | 1 | A |
| 1 | 164184-002 | Filter pump motor, 50 Hz. | 1 | A |
| 2 | 164185 | Filter pump, 8 GPM (See Filter Pump Components) | 1 | A |
| 3 | 175719-001 | OFE 512, 512, 513, 514 Filter pump motor cord | 1 | |
| 3 | 175719-003 | OFE 511 Filter pump motor cord | 1 | |
| 4* | 79525 | Lever nut, 3 conductor connector (motor cord) | 2 | |
| - | - | Motor shield, (CE) (See Chassis Interior) | 1 | |
| Recommended Parts: A = Truck Stock; B = Dist. Stock
* = Not Shown A/R = As Required |
||||

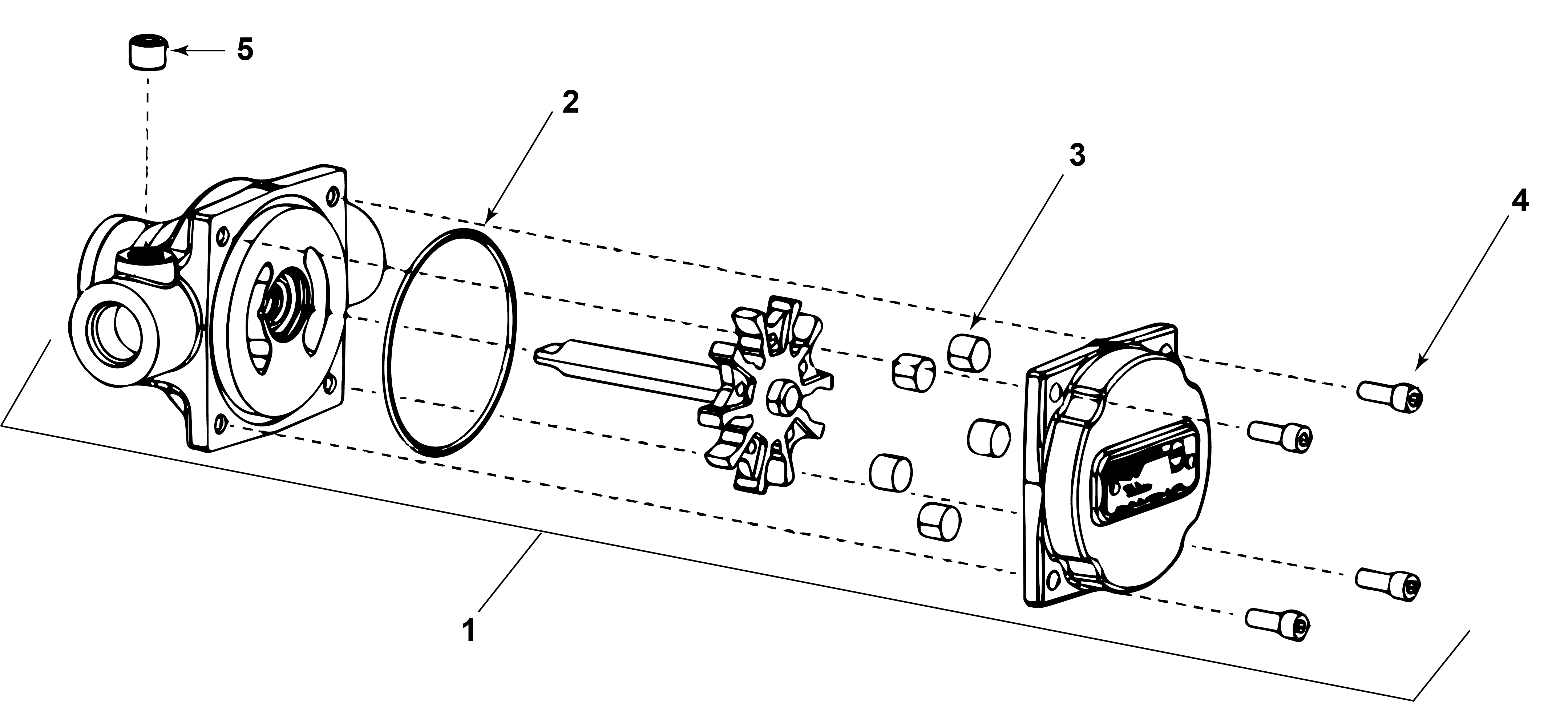

Filter Pump Component
Note - Never separate the filter pump rotor and body. Separating the rotor and body will cause permanent pump seal damage.
| Item No. | Part No. | Description | Qty. | Stocking Level |
|---|---|---|---|---|
| 1 | - | Filter pump, 8 GPM assembly (See Filter Pump with Motor) | - | |
| 2 | 162498 | - Pump cover o-ring | 1 | B |
| 3 | 162501 | - Rollers, 8 GPM (set of 5) | 1 | A |
| 4 | 180716 | - Pump cap screws service pack (set of 4) | 1 | |
| 5 | FP01-020 | - Priming port plug | 1 | |
| Recommended Parts: A = Truck Stock; B = Dist. Stock
* = Not Shown A/R = As Required |
||||
