Flexible Oil Lines

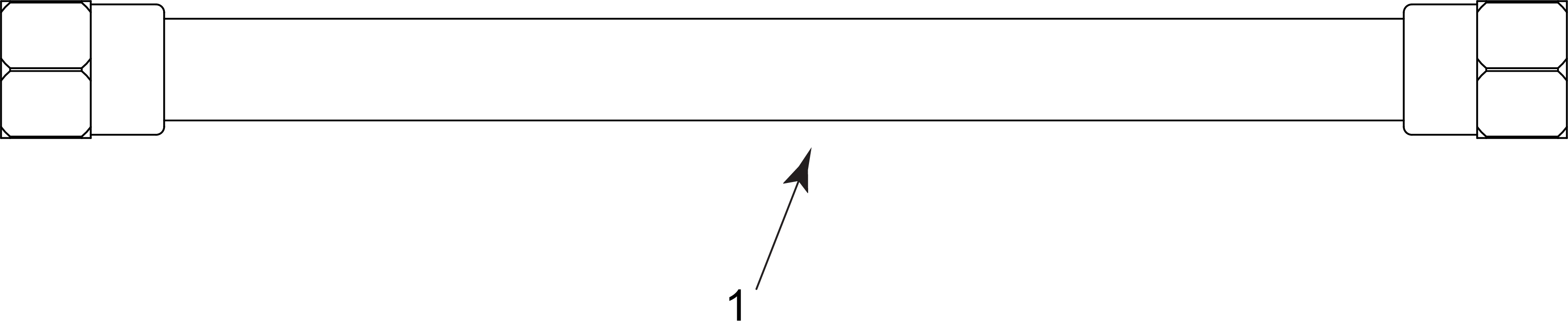

Stainless Steel Braided Flexible Oil Lines
Note:
- Bend radii, no smaller than .75 in. (1.905 cm)
- No bends within .5 in. (1.27 cm) of end nut
- Hold mating fitting while end nut is being tightened
- End nut maximum torque: 43 lbf-ft (58 N-m)
| Item No. | Part No. | Description | Qty. | Stocking Level |
|---|---|---|---|---|
| 1 | 163877-120 | Braided oil line, 3/4 in (19 mm) OD, 12 in (31 cm) long | A/R | |
| 1 | 163877-160 | Braided oil line, 3/4 in (19 mm) OD, 16 in (41 cm) long | A/R | |
| 1 | 163877-180 | Braided oil line, 3/4 in (19 mm) OD, 18 in (46 cm) long | A/R | |
| 1 | 163877-200 | Braided oil line, 3/4 in (19 mm) OD, 20 in (51 cm) long | A/R | |
| 1 | 163877-220 | Braided oil line, 3/4 in (19 mm) OD, 22 in (56 cm) long | A/R | |
| 1 | 163877-240 | Braided oil line, 3/4 in (19 mm) OD, 24in (61 cm) long | A/R | |
| 1 | 163877-300 | Braided oil line, 3/4 in (19 mm) OD, 30 in (76 cm) long | A/R | |
| 1 | 163877-360 | Braided oil line, 3/4 in (19 mm) OD, 36 in (91 cm) long | A/R | |
| Recommended Parts: A = Truck Stock; B = Dist. Stock
* = Not Shown A/R = As Required |
||||
Silicone Flexible Oil Lines
| Item No. | Part No. | Description | Qty. | Stocking Level |
|---|---|---|---|---|
| 1 | MS01-754 | Silicone hose | A/R | |
| 2 | FP01-228 | Barb-1/2 hose x 3/8 NPT nylon | 1 | |
| 2 | 161399 | JIB oil pickup | 1 | |
| 3 | 186312 | JIB cap | 1 | |
| 4 | FP01-345 | - Nylon barbed tee | A/R | |
| 5 | FP01-348 | - Nylon barbed elbow | 1 | |
| 6 | MS01-297 | - Hose clamp | A/R | |
| Recommended Parts: A = Truck Stock; B = Dist. Stock
* = Not Shown A/R = As Required |
||||
