Selector Valve
IMPORTANT:
- Fitting arrangements vary by the number of ports and application.
- An unused port is sealed with a plug.
- SAE 8 fittings are for out ports, and SAE 12 fittings are for common in ports.

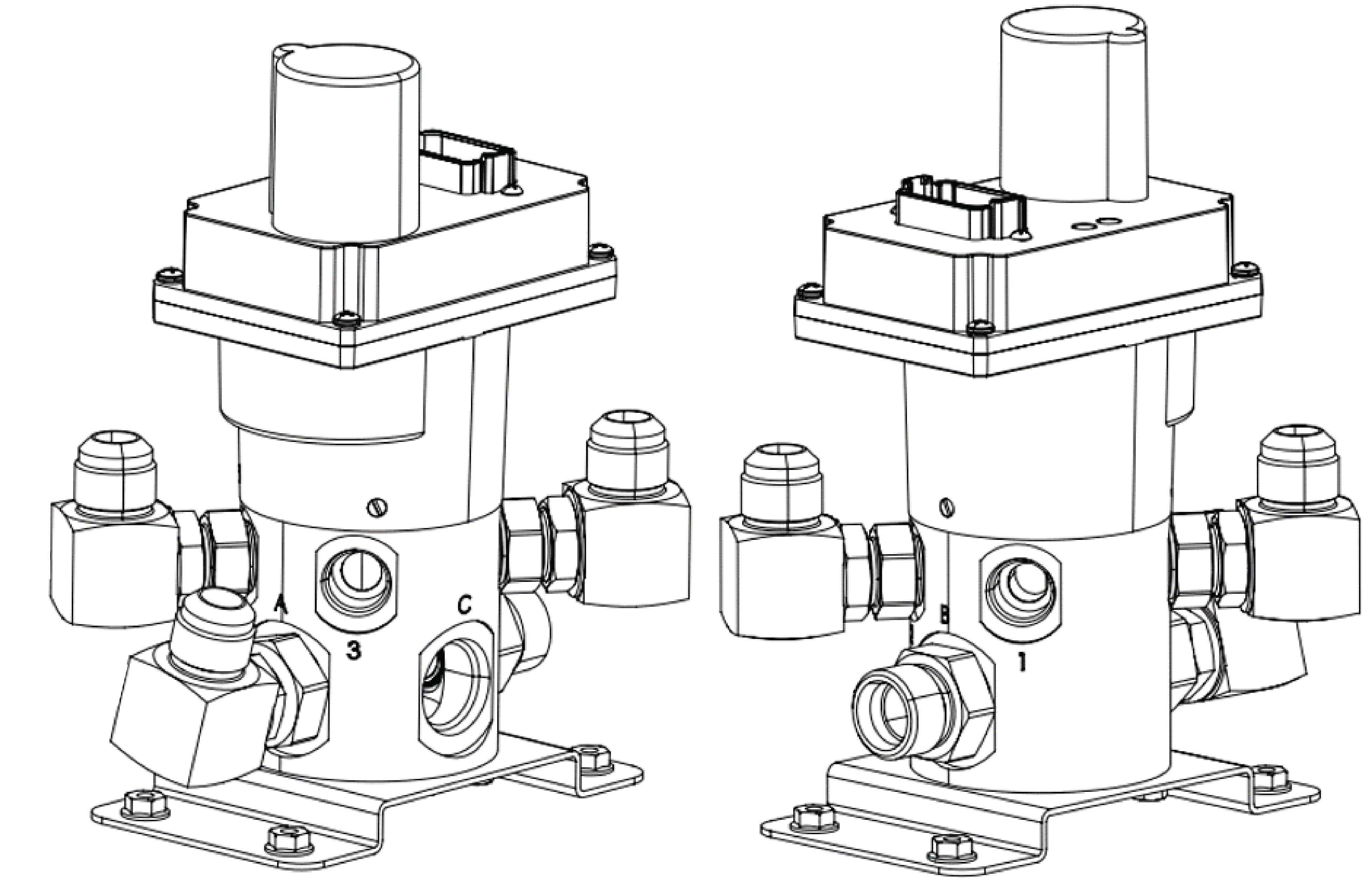

4 Port - 3.1

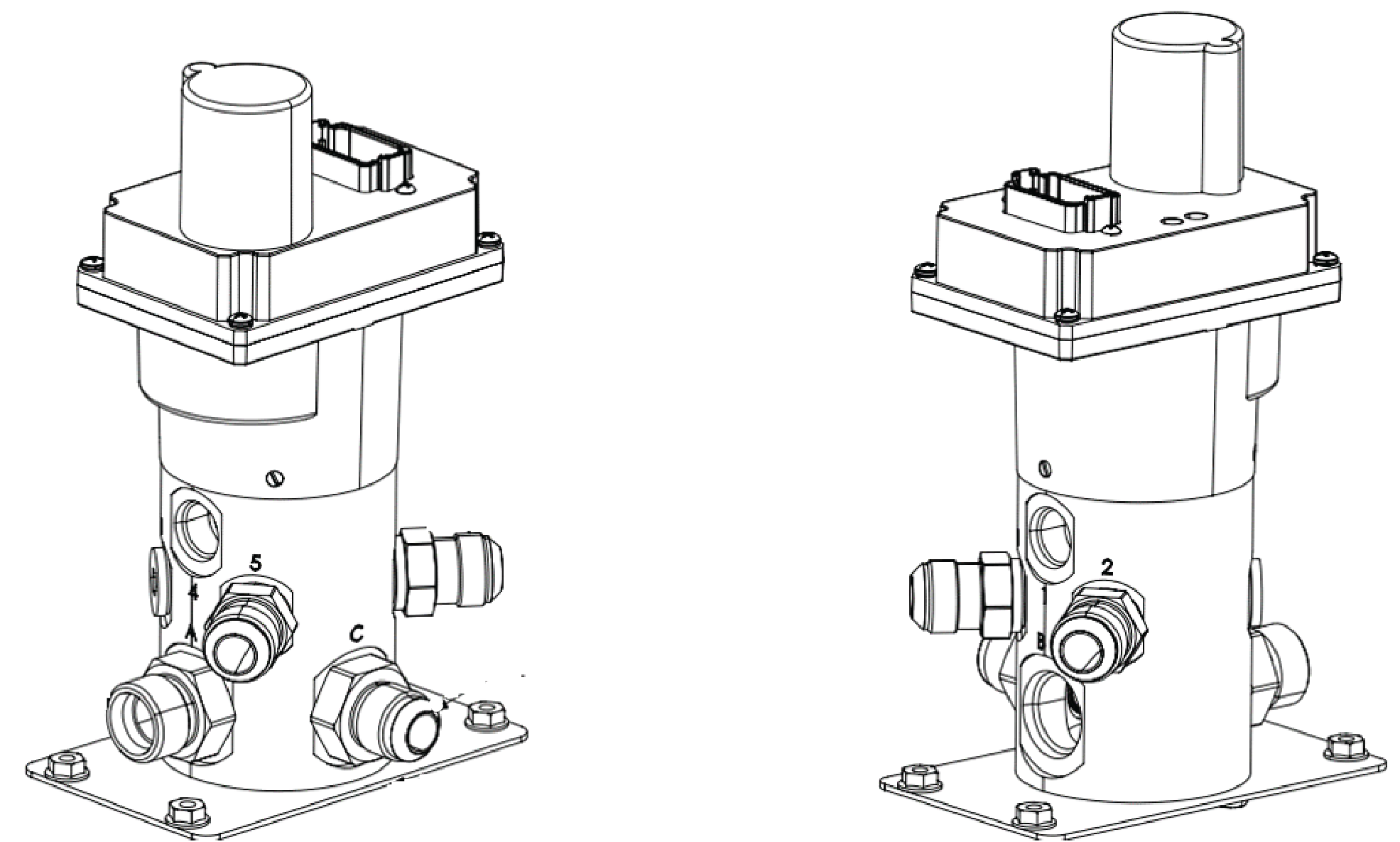

6 Port - 3.2

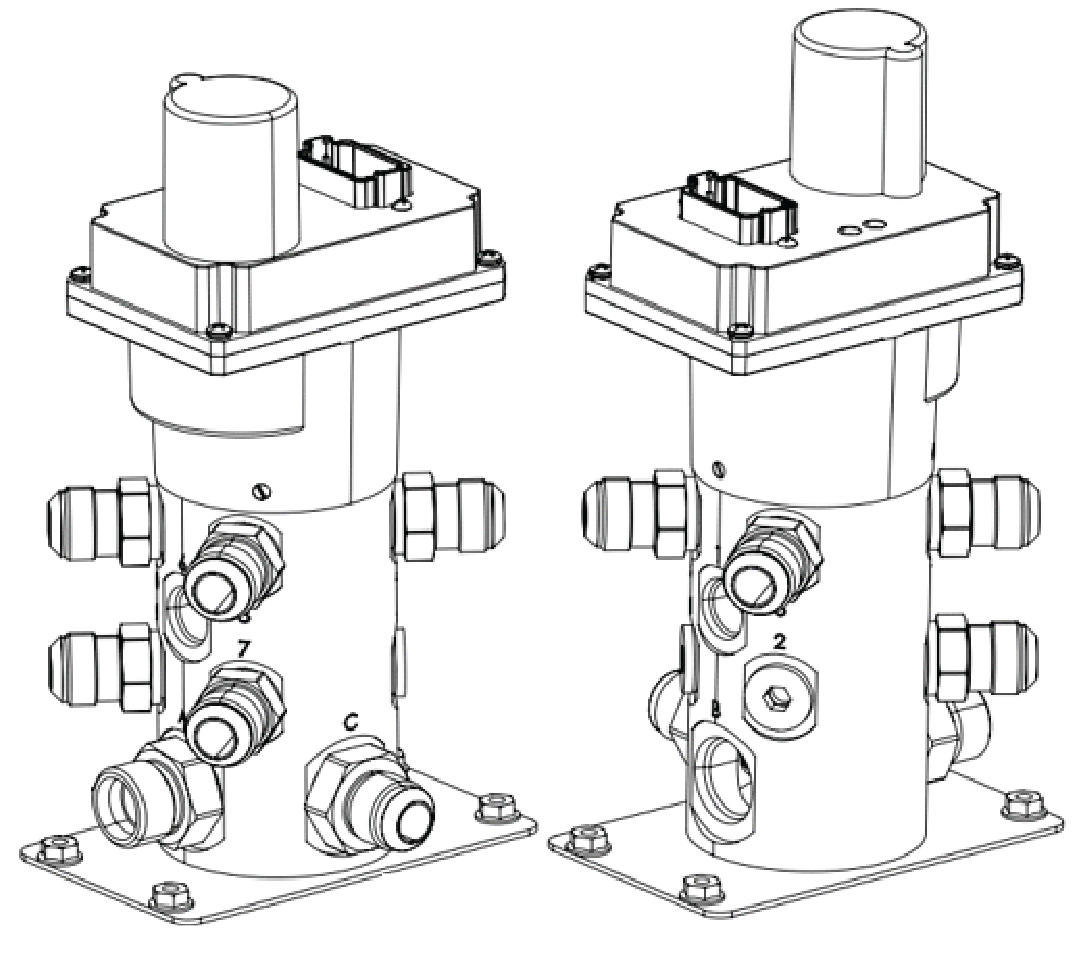

10 Port - 3.3
Selector Port Components
| Item No. | Part No. | Description | Qty. | Stocking Level |
|---|---|---|---|---|
| 1 | 182774 | Emulator Encoder Motor | 1 | B |
| 2^ | 186886-001 | Emulator Encoder Harness | 1 | |
| 3.1 | 170144-002 |
Service Pack - 4 Port Selector Valve NOTE: Fittings and plumbing not included. |
1 | |
| 3.2 | 170144-003 |
Service Pack - 6 Port Selector Valve NOTE: Fittings and plumbing not included. |
1 | |
| 3.3 | 170144-004 |
Service Pack - 10 Port Selector Valve NOTE: Fittings and plumbing not included. |
1 | |
| 4 | FP01-346 | Plug, SAE 8 (upper port (out)) | A/R | |
| 5 | 165436 | Elbow, SAE 8 X 15/16 fitting (upper port (out)) (4-port only) | A/R | |
| 6 | 159818 | Straight, SAE 8 X 15/16 fitting (upper port (out)) | A/R | |
| 7* | 162394 | Elbow check valve, SAE 12 X 15/16 fitting (lower port (in)) (4-port only) | A/R | |
| 8* | 159823 | Straight check valve, SAE 12 X 1-1/16 fitting (lower port (in)) | A/R | |
| 9* | 159820 | Straight check valve, SAE 12 X 15/16- fitting (JIB port in "C") | A/R | |
| Recommended Parts: A = Truck Stock; B = Dist. Stock
* = Not Shown A/R = As Required |
||||
