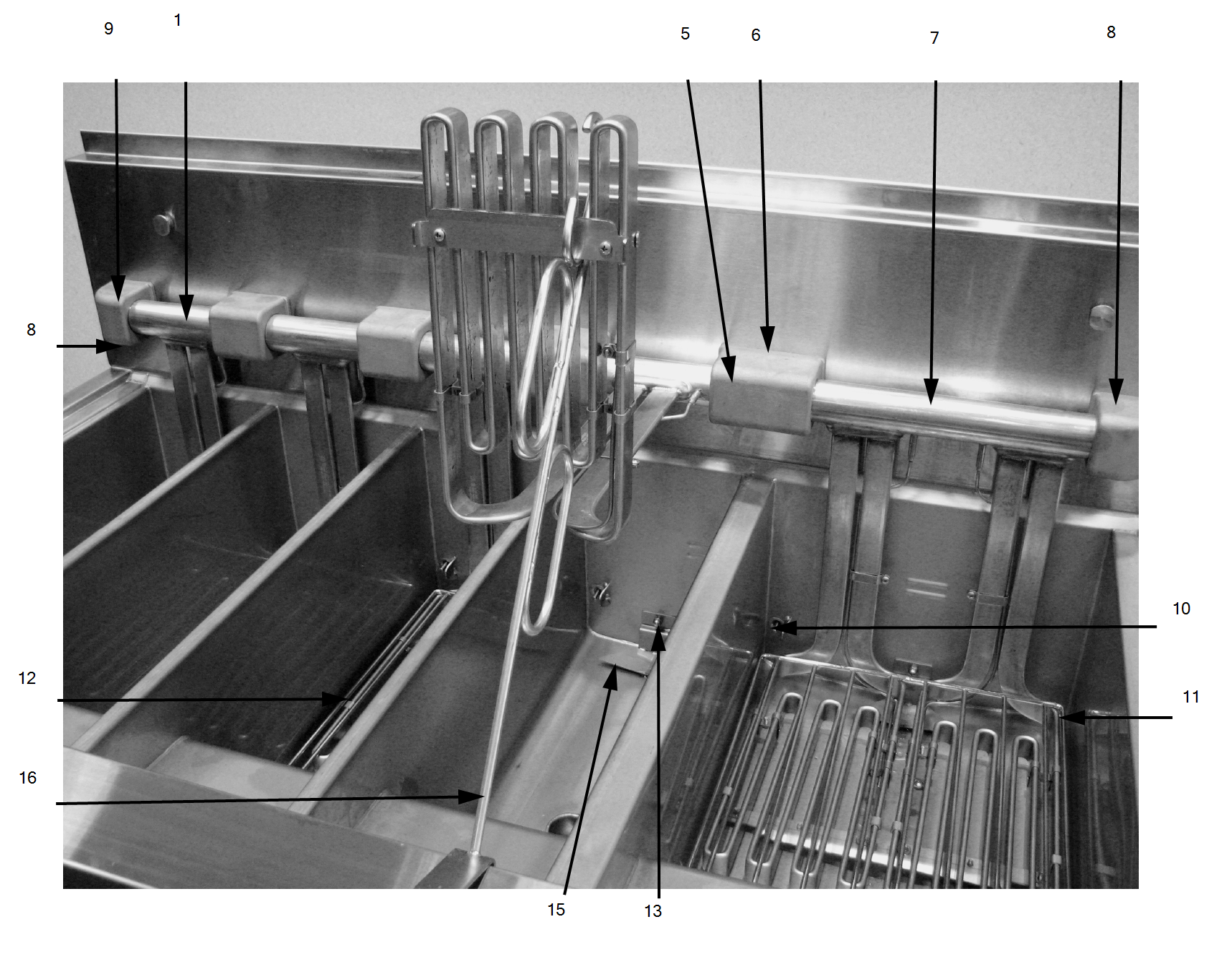

Element Assembly and Sensors
 |  |
  |
 |  |
Full Element Detail | Split Element Detail |
| Item No. | Part No. | Description | Qty. | Stocking Level |
|---|---|---|---|---|
1 | 3 wire oil heating element, 208 VAC, 60 Hz, 7 kW, 3 Ph, split vat (Before 12/2020) | 1/vat | B | |
1 | 92104-002 | 4 wire oil heating element, 230/400 VAC, 50 Hz, 7 kW, 3 Ph, split vat (Before 12/2020) | 1/vat | B |
1 | 92104-005 | 4 wire oil heating element, 220/380 VAC, 50 Hz, 7 kW, 3 Ph, split vat (Before 12/2020) | 1/vat | B |
1 | 4 wire oil heating element, 240/415 VAC, 50 Hz, 7 kW, 3 Ph, split vat (Before 12/2020) | 1/vat | B | |
1 | 92104-007 | 3 wire oil heating element, 220 VAC, 60 Hz, 7 kW, 3 Ph, split vat (Before 12/2020) | 1/vat | B |
1 | 92104-008 | 3 wire oil heating element, 230 VAC, 50 Hz, 7 kW, 3 Ph, split vat (Before 12/2020) | 1/vat | B |
1 | 92104-009 | 3 wire oil heating element, 240 VAC, 60 Hz, 7 kW, 3 Ph, split vat (Before 12/2020) | 1/vat | B |
| 1 | 178446-001 | 3 wire oil heating element, 208 VAC, 60 Hz, 7 kW, 3 Ph, split vat (After 12/2020) | 1/vat | B |
| 1 | 178446-002 | 4 wire oil heating element, 230/400 VAC, 50 Hz, 7 kW, 3 Ph, split vat (After 12/2020) | 1/vat | B |
| 1 | 178446-005 | 4 wire oil heating element, 220/380 VAC, 50 Hz, 7 kW, 3 Ph, split vat (After 12/2020) | 1/vat | B |
| 1 | 178446-006 | 4 wire oil heating element, 240/415 VAC, 50 Hz, 7 kW, 3 Ph, split vat (After 12/2020) | 1/vat | B |
| 1 | 178446-007 | 3 wire oil heating element, 220 VAC, 60 Hz, 7 kW, 3 Ph, split vat (After 12/2020) | 1/vat | B |
| 1 | 178446-008 | 3 wire oil heating element, 230 VAC, 50 Hz, 7 kW, 3 Ph, split vat (After 12/2020) | 1/vat | B |
| 1 | 178446-009 | 3 wire oil heating element, 240 VAC, 60 Hz, 7 kW, 3 Ph, split vat (After 12/2020) | 1/vat | B |

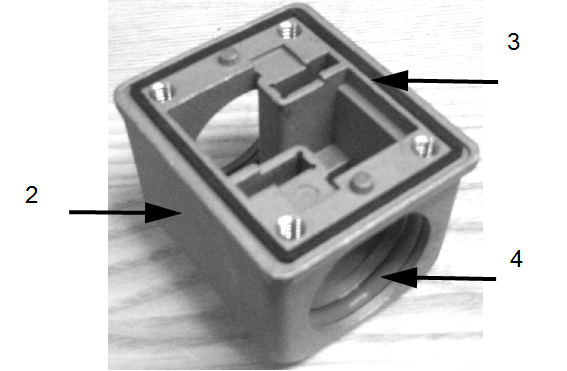

2 | Pivot block S to S | A/R |
| |
3 | Pivot block seal S to S | A/R | B | |
4 | O-ring | 2/block | B | |
5 | Pivot block S to F | A/R |
| |
6 | Pivot seal S to F | A/R | B | |
7 | 3 wire oil heating element, 208VAC, 60Hz, 14 kW, 3 Ph, full vat | 1/vat | B | |
7 | 4 wire oil heating element, 230/400VAC, 50Hz, 14 kW, 3 Ph, full vat | 1/vat | B | |
7 | 4 wire oil heating element, 220/380VAC, 50/60 Hz, 14 kW, 3 Ph, full vat | 1/vat | B | |
7 | 4 wire oil heating element, 240/415VAC, 50 Hz, 14 kW, 3 Ph full vat | 1/vat | B | |
7 | 92103-007 | 3 wire oil heating element, 220VAC, 60 Hz, 14 kW, 3 Ph, full vat | 1/vat | B |
7 | 92103-008 | 3 wire oil heating element, 230VAC, 50 Hz, 14 kW, 3 Ph, full vat | 1/vat | B |
7 | 92103-009 | 3 wire oil heating element, 240VAC, 60 Hz, 14 kW, 3 Ph, full vat | 1/vat | B |
8 | Pivot block F to F | A/R |
| |
| 9 | Pivot block seal F to F | A/R | B | |
| 10 | 140099 | Temperature probe kit, 3 in | 1/vat | A |
11 | Full vat rack w/o wear strip | 1/vat | B | |
12 | Split vat rack | 1/vat | B | |
13 | Stud, #10-24 x 1/4 - Stainless Steel | 1/vat | ||
| 13 | Lock Washer, Lock Washer Split Ring #10C | 1/vat | ||
13 | Acorn nut, #10 x 24 SS | 1/vat |
| |

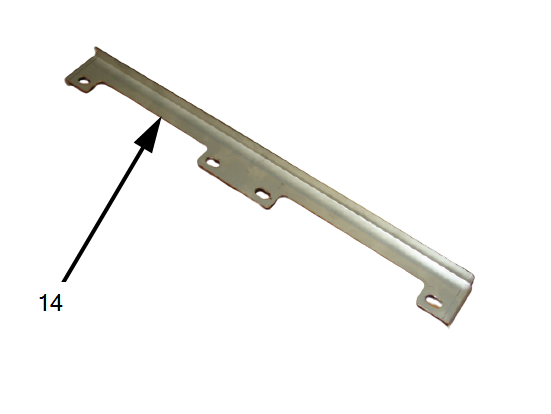

14 | Element guard kit, full vat | 1/vat |
| |
14 | Element guard kit, split vat | 1/vat |
| |
15 | Oil diverter | 1/vat |
| |
15 | Fish oil diverter | 1/vat |
| |
16 | Element lift handle | 1 | B | |
17 * | 76563 | Seam cover LVE 202 | 1 |
|
17 * | 76500 | Seam cover LVE 203 | 1 |
|
17 * | 77613 | Seam cover LVE 204 | 1 |
|
18 * | 76564 | Extension shroud LVE 202 | 1 |
|
18 * | 76501 | Extension shroud LVE 203 | 1 |
|
18 * | 77614 | Extension shroud LVE 204 | 1 |
|
19 * | Acorn nut, #10 x 24 SS | 3 |
| |
20 | Hi limit tip clip | 1/split 2/full |
| |
21 | Hi limit rear tip clip | 1/split 2/full |
| |
22 | Lower element spacer | 4/full 2/split |
| |
23 | Upper element spacer | 4/full 2/split |
| |
24 | Foot top bracket | 4/full 2/split |
| |
25 | Full vat foot mounting bracket | 1 |
| |
26 | Full vat bottom foot bracket | 2 |
| |
27 | Spilt vat bottom foot bracket | 1 |
| |
28 | Screw, #8 x AB x .375 long | 10/full 4/split |
| |
29 | Screw, #8 x 32 x .250 long | 4/full 2/split |
| |
30 | Washer | 4/full 2/split |
| |
31 | Nut, #8 x 32 SS | 4/full 2/split |
| |
| 32* | High limit single thermocouple service pack - Full vats (All units) - Split vats (Before 12/2020) | A/R | A | |
| 32* | 181867 | High limit dual thermocouple service pack - Split vat only (After 12/2020) | 1/vat | A |

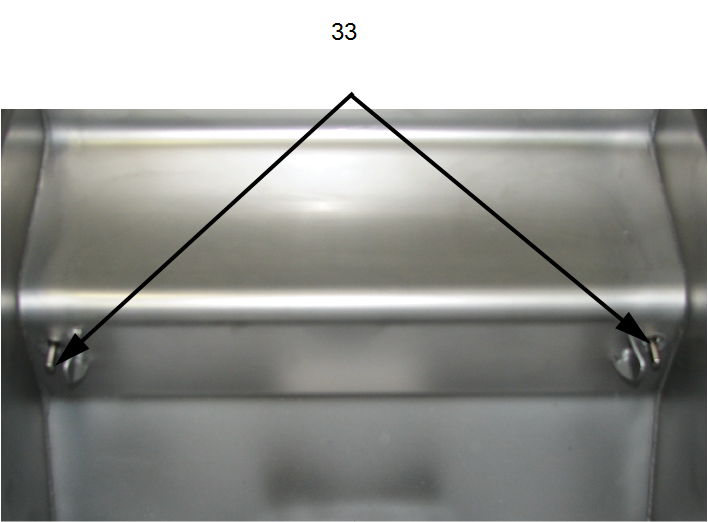

33 | 140098 | Oil level probe kit, 2 1/2 in | 2/vat | A |
Recommended Parts: A = Truck Stock; B = Dist. Stock * = Not Shown | ||||
Pivot Block Chart
Model |
Vat Config. | Pivot Block | Pivot Block Seal | ||||
|---|---|---|---|---|---|---|---|
Qty. | Part No. | Type | Qty. | Part No. | Type | ||
LVE 202 | FF | 4 | F to F end block | 4 | F to F | ||
SS | 2 | F to F end block | 2 | F to F | |||
3 | S to S | 3 | S to S | ||||
FD FR FS | 2 | F to F end block | 2 | F to F | |||
1 | S to F | 1 | S to F | ||||
1 | S to S | 1 | S to S | ||||
DF LF SF | 2 | F to F end block | 2 | F to F | |||
1 | S to F | 1 | S to F | ||||
1 | S to S | 1 | S to S | ||||
LVE 203 | FFF | 6 | F to F end block | 6 | F to F | ||
SSS | 2 | F to F end block | 2 | F to F | |||
5 | S to S | 5 | S to S | ||||
FSD FSR FSS | 2 | F to F end block | 2 | F to F | |||
1 | S to F | 1 | S to F | ||||
3 | S to S | 3 | S to S | ||||
FFD FFR FFS | 4 | F to F end block | 4 | F to F | |||
1 | S to F | 1 | S to F | ||||
1 | S to S | 1 | S to S | ||||
DSF LSF SSF | 2 | F to F end block | 2 | F to F | |||
1 | S to F | 1 | S to F | ||||
3 | S to S | 3 | S to S | ||||
DFF LFF SFF | 4 | F to F end block | 4 | F to F | |||
1 | S to F | 1 | S to F | ||||
1 | S to S | 1 | S to S | ||||
LVE-204 | FFFF | 8 | F to F end block | 8 | F to F | ||
SSSS | 2 | F to F end block | 2 | F to F | |||
7 | S to S | 7 | S to S | ||||
FSSD FSSR | 2 | F to F end block | 2 | F to F | |||
| FSSS | 1 | S to F | 1 | S to F | ||
5 | S to S | 5 | S to S | ||||
FFSD FFSR FFSS | 4 | F to F end block | 4 | F to F | |||
1 | S to F | 1 | S to F | ||||
3 | S to S | 3 | S to S | ||||
FFFD FFFR FFFS | 6 | F to F end block | 6 | F to F | |||
1 | 86304 | S to F | 1 | S to F | |||
1 | S to S | 1 | S to S | ||||
DSSF LSSF SSSF | 2 | F to F end block | 2 | F to F | |||
1 | S to F | 1 | S to F | ||||
5 | S to S | 5 | S to S | ||||
DSFF LSFF SSFF | 4 | F to F end block | 4 | F to F | |||
1 | S to F | 1 | S to F | ||||
3 | S to S | 3 | S to S | ||||
DFFF LFFF SFFF | 6 | F to F end block | 6 | F to F | |||
1 | S to F | 1 | S to F | ||||
1 | S to S | 1 | S to S | ||||
