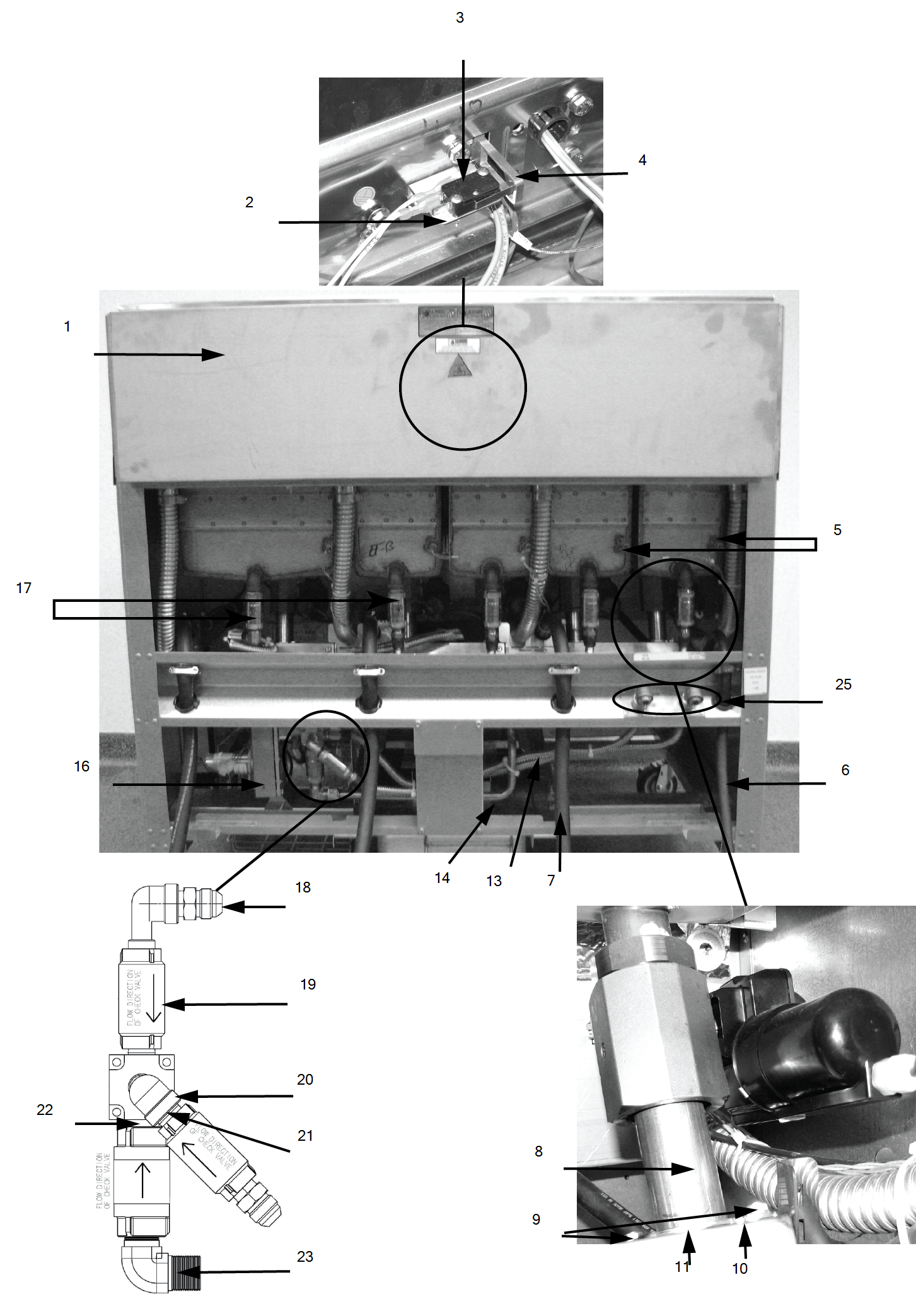

Rear View
| Item No. | Part No. | Description | Qty. | Stocking Level |
|---|---|---|---|---|
1 | Rear shroud cover, LVE 202 | 1 |
| |
1 | Rear shroud cover, LVE 203 | 1 |
| |
1 | Rear shroud cover, LVE 204 | 1 |
| |
2 | Switch mounting bracket | 1/vat |
| |
3 | Element lift switch | 1/vat | A | |
4 | 83038 | Element sense arm | 1/vat |
|
5 | 140099 | Temperature probe, 3 in | 1/vat | A |
6 | 83333 | Interlock cord and plug assembly, 120 VAC | 1 | C |
6 | 85335 | Interlock cord and plug assembly, CE | 1 | C |
6 | 85754 | Interlock cord and plug assembly, France | 1 | C |
6 | 85758 | Interlock cord and plug assembly, Italy | 1 | C |
6 | 85759 | Interlock cord and plug assembly, Singapore and Hong Kong | 1 | C |
6 | 85763 | Interlock cord and plug assembly, New Zealand | 1 | C |
7 | Power cord and plug assembly, 208/240 VAC | ** | C | |
7 | 85337 | Power cord and plug assembly, CE | ** | C |
7 | 85760 | Power cord and plug assembly, Singapore and Hong Kong | ** | C |
7 | 85761 | Power cord and plug assembly, Norway | ** | C |
7 | 85762 | Power cord and plug assembly, 8 ft Italy | ** | C |
7 | 173194 | Power cord and plug assembly, Australia | ** | C |
7 | 172917 | Power cord and plug assembly, New Zealand | ** | C |
8 | Fish valve to trough tube | 1/vat |
| |
8 | S/F valve to trough tube | 1/vat |
| |
9 | NS04-004 | Nut | 2 |
|
10 | Shim | 2 |
| |
11 | Drain trough seal clamp | 1 |
| |
12* | O-ring between drain valve and trough, 325 | A/R |
| |
13 | 77523-0XX | Suction tube (See diagram) | A/R |
|
14 | Pump to selector valve tube assembly, LVE 202 | 1 |
| |
14 | Pump to selector valve tube, LVE 203/204 | 1 |
| |
15* | 140537 | Drain pan switch replacement kit | 1 | A |
16 |
| Selector valve (See Selector Valve Assembly) Technical Service approval is required prior to ordering selector valve. | 1 |
|
17 | Check valve, ½ in, full vat (SN before BH1906074) | A/R | A | |
| 17 | 175651 | Check valve elbow fitting, 90° (SN after BH1906075) | A/R | A |
18 | FP01-238 | Flare fitting, 3/8 in NPT straight, 45° | 1 |
|
19 | Pressure check valve | 2 | A | |
20 | FP01-087 | Street elbow, 3/8 in NPT, SS | 2 |
|
21 | FP02-001 | Close nipple, 3/8 | 2 |
|
22 | FP01-028 | Close nipple, ½ in NPT, SS, large | 1 |
|
23 | Elbow connector, ½ in, male | 1 |
| |
24* | MS01-169 | Loctite check valve thread locker, 0.8 oz | 1 | A |
| 25 | FP01-127 | 1/2 x 1/2, 90° street elbow | A/R | |
Recommended Parts: A = Truck Stock; B = Dist. Stock * = Not Shown A/R = As Required | ||||
