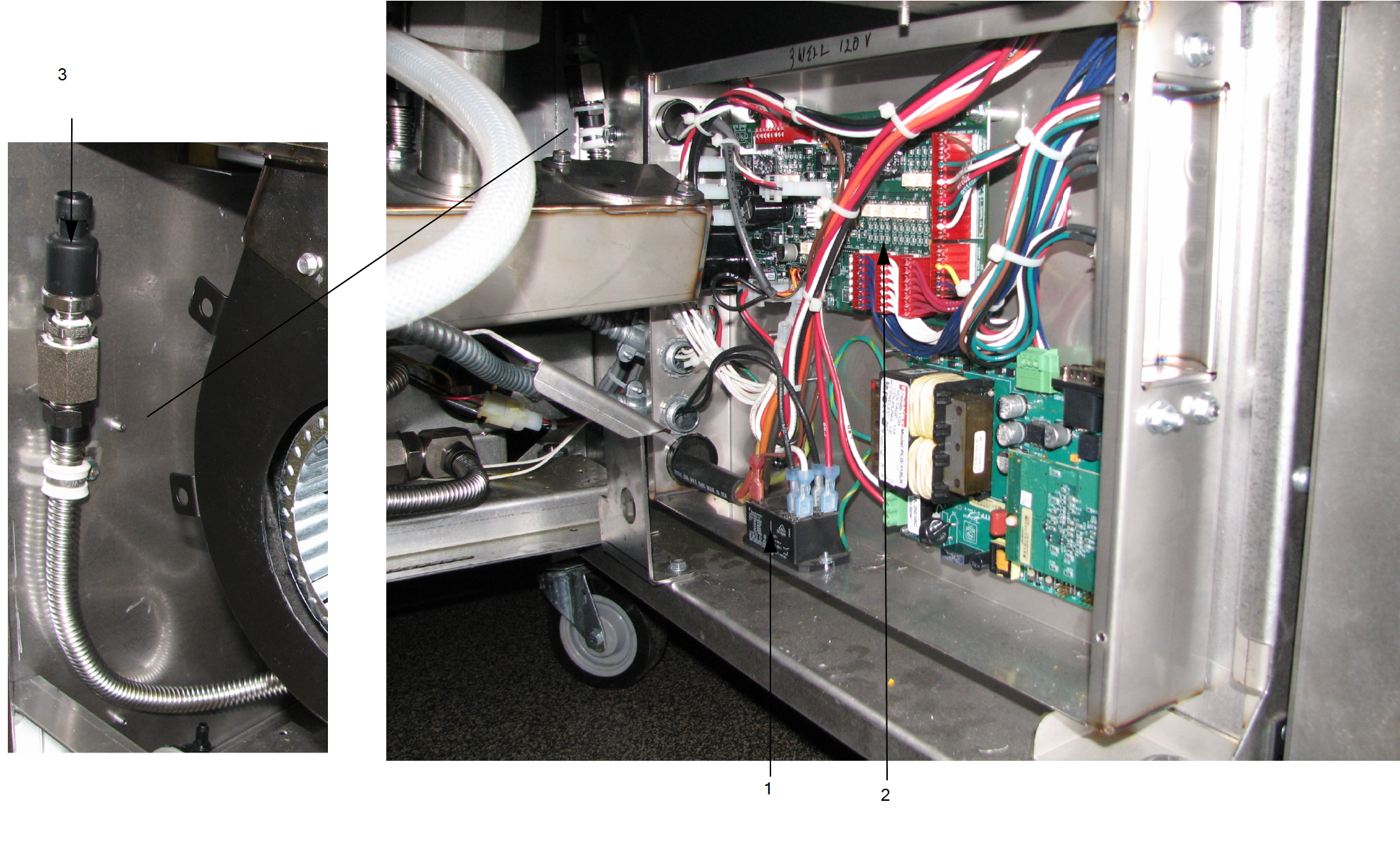

AIF Electronic Controls Box
| Item No. | Part No. | Description | Qty. | Stocking Level |
|---|---|---|---|---|
1 | ME90-008 | Pump motor relay, 12 VDC 30 AMP | 1 |
A |
2 | 85698 | Common AIF PCB | 1 |
A |
3 | 79213 | Pressure transducer, 30 PSI | 1 | A |
| 4* | 84384-002 | Pressure transducer harness | ||
5* | 82914 | EMC filter board assembly, CE | 1 | B |
6* | 80373 | Terminal power block, CE | 1 | B |

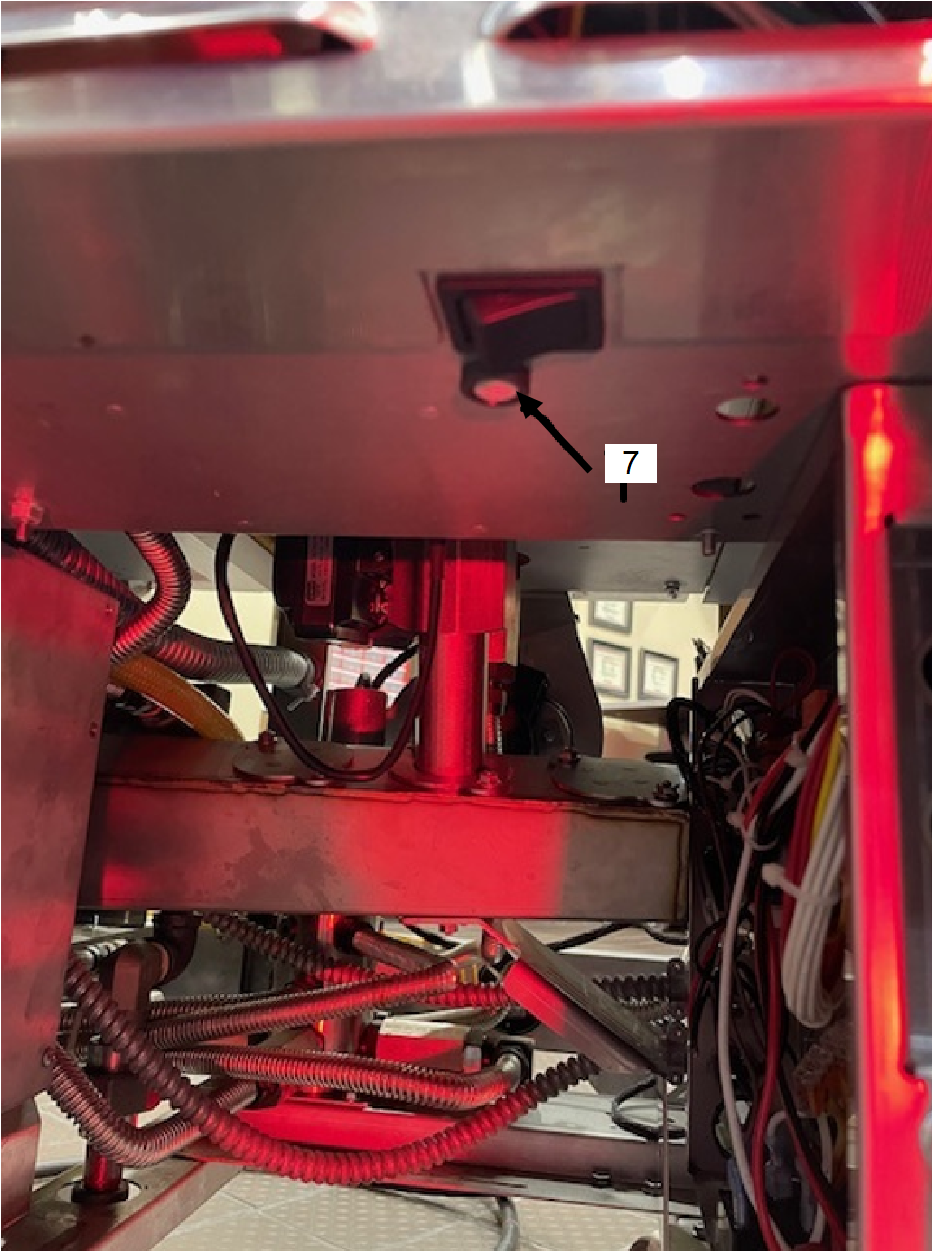

| 7 | EF02-104 | Fuse holder, 20A, 250V (located next to high limit reset switch) | 1 | A |
| 8* | FA52-010 | Fuse, 1.0 AMP, 120V normal blow | 1 | A |
| Recommended Parts: A = Truck Stock; B = Dist. Stock * = Not Shown | ||||
