Filter Pump and Motor Assemblies
Flange Mount Filter Pump Motor Assembly
Serial No. before BU1810136
| Item No. | Part No. | Description | Qty. | Stocking Level |
|---|---|---|---|---|
| 1 | 67583 | Motor, 1/2 HP, 60 Hz | 1 | A |
| 1 | 92850 | Motor, 1/2 HP, 50 Hz ,CE | 1 | A |
| 2 | 17476 | Seal kit | 1 | A |
| 3 | 171168 | 5 GPM pump assembly | 1 | B |
| 4 | SC01-132 | - Pump cover screw | 1 | |
| 5 | 171171 | - Pump cover | 1 | |
| 6 | 171170 | - Pump rotor | 1 | |
| 7 | 171169 | - Pump roller (set of 5) | 1 | A |
| 8 | 162498 | - O-ring | 1 | B |
| 9 | N/A | Pump body not sold separately. Use 171168. | ||
| 10 | SC01-026 | Pump motor shield screw | 1 | |
| 11 | 17456 | Pump motor shield, CE | 1 | |
| Recommended Parts: A = Truck Stock; B = Dist. Stock | ||||
NOTICE - | Motors are factory-wired for high voltage. Before energizing the equipment, verify voltage requirements and reconfigure the motor for low voltage as necessary. Incorrect motor voltage wiring may result in improper operation, poor performance, and potential damage to the motor or equipment. |
Filter Pump Motor- High Voltage to Low Voltage Conversion Video

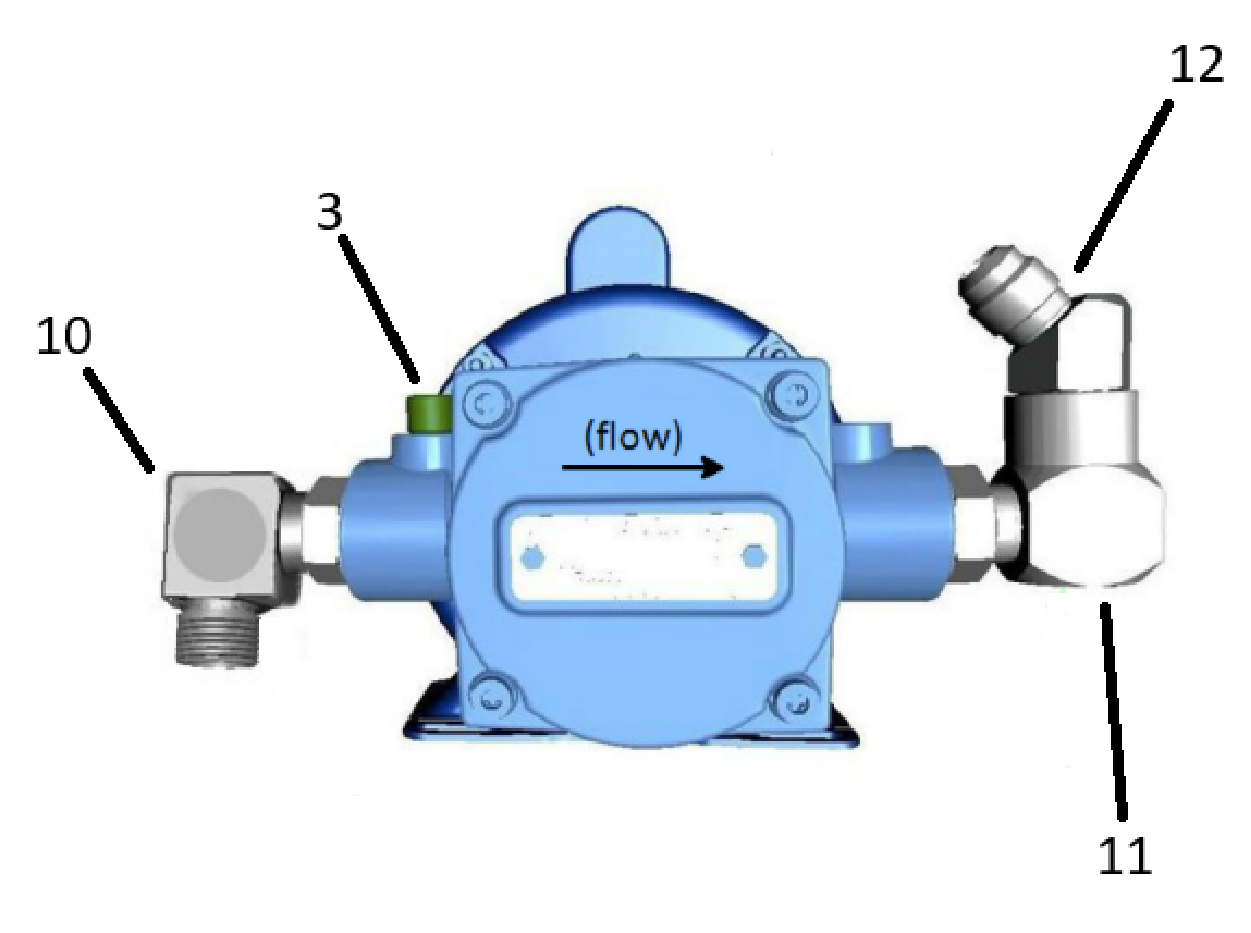

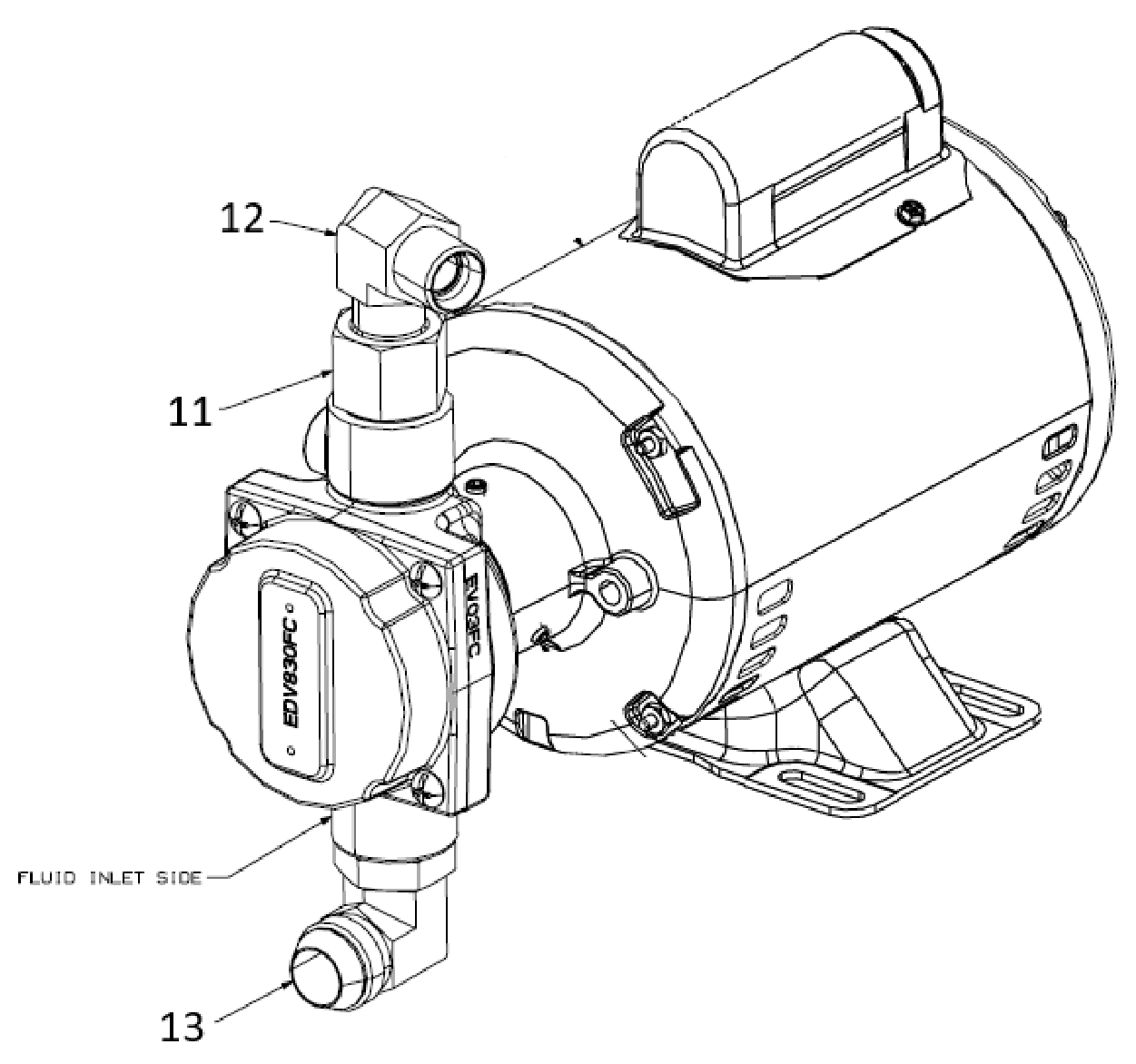

Hub Mount Filter Pump Motor Assembly
Not Included in Original Manufactured Assembly
Serial No. after BU1810136
NOTICE - | Do not separate the filter pump rotor and body. Separating the rotor and body will cause permanent pump shaft seal damage. |
| Item No. | Part No. | Description | Qty. | Stocking Level |
|---|---|---|---|---|
| 1 | 164184-001 | 1/2 HP / 60Hz motor | 1 | A |
| 1 | 164184-002 | 1/2 HP / 50Hz motor, CE | 1 | A |
| 2 | 164323 | 5 GPM hub mounted filter pump assembly | 1 | A |
| 3 | - FP01-020 | Hex socket plug, 1/4 NPT | 1 | |
| 4 | -SC01-132 | Pump cover screw (qty. 50) | A/R | |
| 5 | Pump cover not sold separately | |||
| 6 | -171169 | Pump roller kit (set of 5), 5 GPM | 1 | A |
| 7 | -162498 | Pump cover o-ring | 1 | A |
| 8* | 140591 | Filter pump conversion hardware ( BU1304119 to BU1810136 only) | 1 | |
| 9* | 168510 | Motor shield, CE | 1 | |
| 10* | FP01-340 | Outlet elbow fitting, SAE 10 | 1 | |
| 11 | FP01-357 | Elbow, SAE 10, O-R, M X 1/2 NPT F | 1 | |
| 12 | FP01-278 | Elbow, 45°, 1/2 NPT M X #8 M | 1 | |
| Recommended Parts: A = Truck Stock; B = Dist. Stock | ||||
NOTE: Kit 140591 does NOT include filter pump or motor. It only includes hardware.
NOTE: Prime retrofit filter pump and motor fittings cannot be used with hub mounted filter pump and motor assembly. Mounting plate holes will not align.
