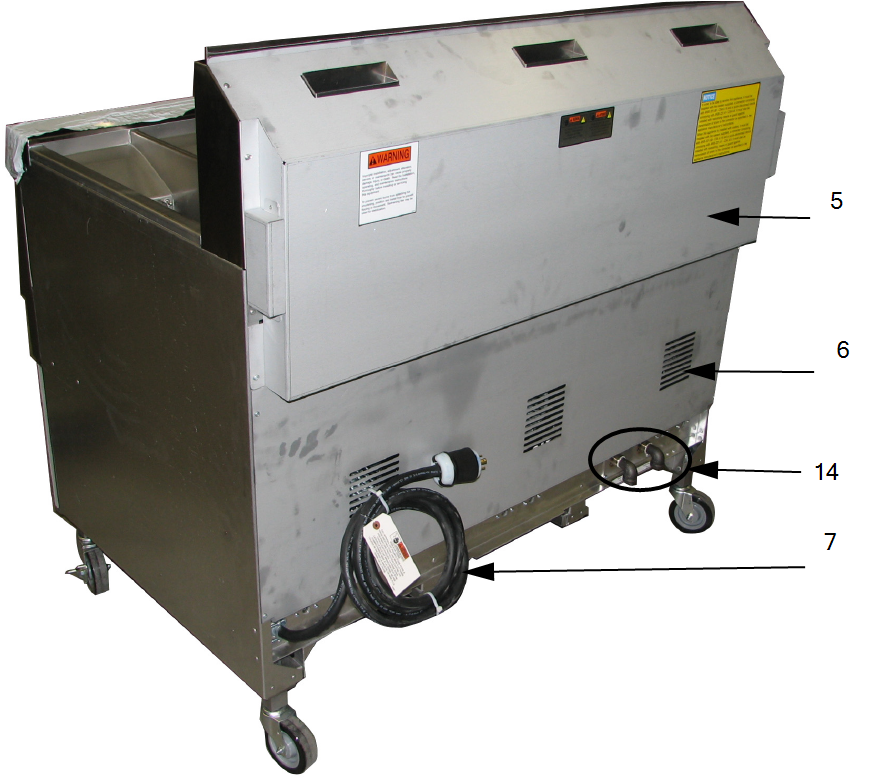

Rear View

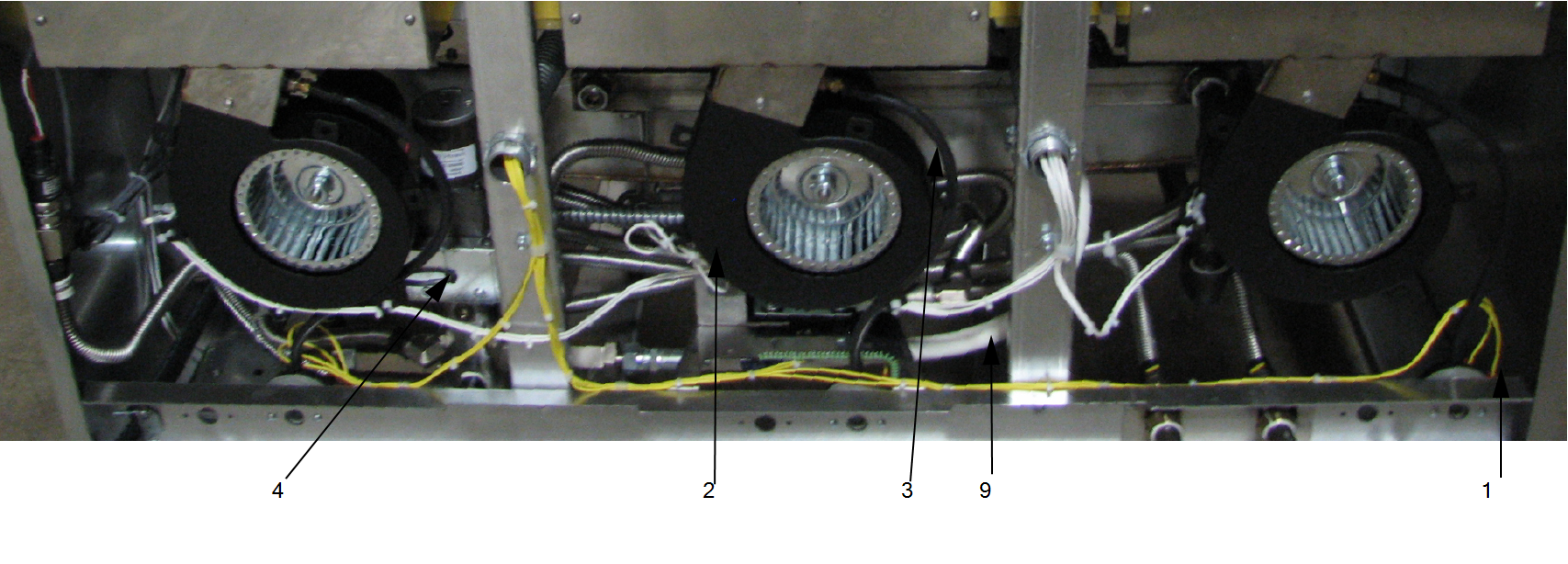

Blower Motor Assembly

Item No.	Part No.	Description	Qty.	Stocking Level
1	140939	Kit - pressure switch, 0.80 in WC (before BU1806051) - Pressure switch, .80wc - Edge grommet -Pressure switch tube, 11 in	1/Full 2/Split	A
1	140929	Kit -pressure switch, 0.40 (behind covers) after BU1806052 - Pressure switch, 0.40wc - Edge grommet - Pressure switch tube, 11 in	1/Full 2/Split	A
2	140449	Blower wheel kit, 4 well (before BU1806051)	1
2	140460	Blower wheel kit, 3 well (before BU1806051)	1
2	140461	Blower wheel kit, 2 well (before BU1806051)	1
2	140462	Blower wheel kit, 1 well (before BU1806051)	1
2	92963-001	Blower motor, 115 VAC before BU1806051	1 per vat	B
2	92963-002	Blower motor, 230 VAC before BU1806051	1 per vat	B
2	162245-001	Blower motor, 115 VAC after BU1806052	1 per vat	B
2	162245-002	Blower motor, 230 VAC after BU1806052	1 per vat	B
3	79443-X	Pressure switch tube	A/R
4		Selector valve
5	89445	Rear shroud cover, LVG 202 (SN before BU1806051)	1
5	163016	Rear shroud cover, LVG 202 (SN after BU1806052)	1
5	86568	Rear shroud cover, LVG 203 (SN before BU1806051)	1
5	162871	Rear shroud cover, LVG 203 (SN after BU1806052)	1
5	87558	Rear shroud cover, LVG 204 (SN before BU1806051)	1
5	162881	Rear shroud cover, LVG 204 (SN after BU1806052)	1
6	89901	Rear lower cover, LVG 202	1
6	86567	Rear lower cover, LVG 203	1
6	87557	Rear lower cover, LVG 204	1
7	79363	Power cord assembly, 230 VAC, CE	1	C
7	73517	Power cord assembly, 120 VAC, UL	1	C
8 *	82139	Rear spacer bar, LVG 102	1
8 *	80219	Rear spacer bar, LVG 103	1
8 *	83792	Rear spacer bar, LVG 104	1
9	-	Filter pump outlet hose See Filter pump outlet hose, 34 in	1
10*	MS01-637	Blower motor wheel removal tool	1
11*	90506-001	Vat fill check valve (before BU2006046)	1/vat	A
11*	158282	Vat fill check valve (after BU2006046)	1/vat
12*	77293	Flue insulation, split vat	2/vat
12*	77294	Flue insulation, full vat	1/vat
13*	FP01-213	Hose barb fitting, 1/4, split vat	A/R
14	FP01-127	1/2 x 1/2, 90° street elbow	A/R
Recommended Parts: A = Truck Stock; B = Dist. Stock * = Not Shown A/R = As Required

Pressure Tube Switch Chart

Part No.	Length
79443-1	2.5 in
79443-2	13 in
79443-3	19 in
79443-4	16 in
79443-5	26 in
79443-6	14 in
79443-7	17 in
79443-8	22 in
79443-9	32 in
79443-10	38 in
79443-11	5.5 in
79443-12	11 in
79443-13	15 in

Flex Hose Parts

Part No.	Length
77523-001	12 in
77523-002	18 in
77523-003	24 in
77523-004	30 in
77523-005	36 in
77523-006	42 in
77523-007	48 in
77523-008	7 in
77523-009	13 in
77523-010	54 in
77523-011	10 in
77523-012	8 in
77523-013	21 in
77523-014	9 in
77523-015	14 in
77523-016	15.5 in

The parts descriptions listed have been modified to reduce mis-ordered parts. Be aware when ordering, the part description may differ. To verify the correct part when ordering, ensure the part number matches the part number listed here.
