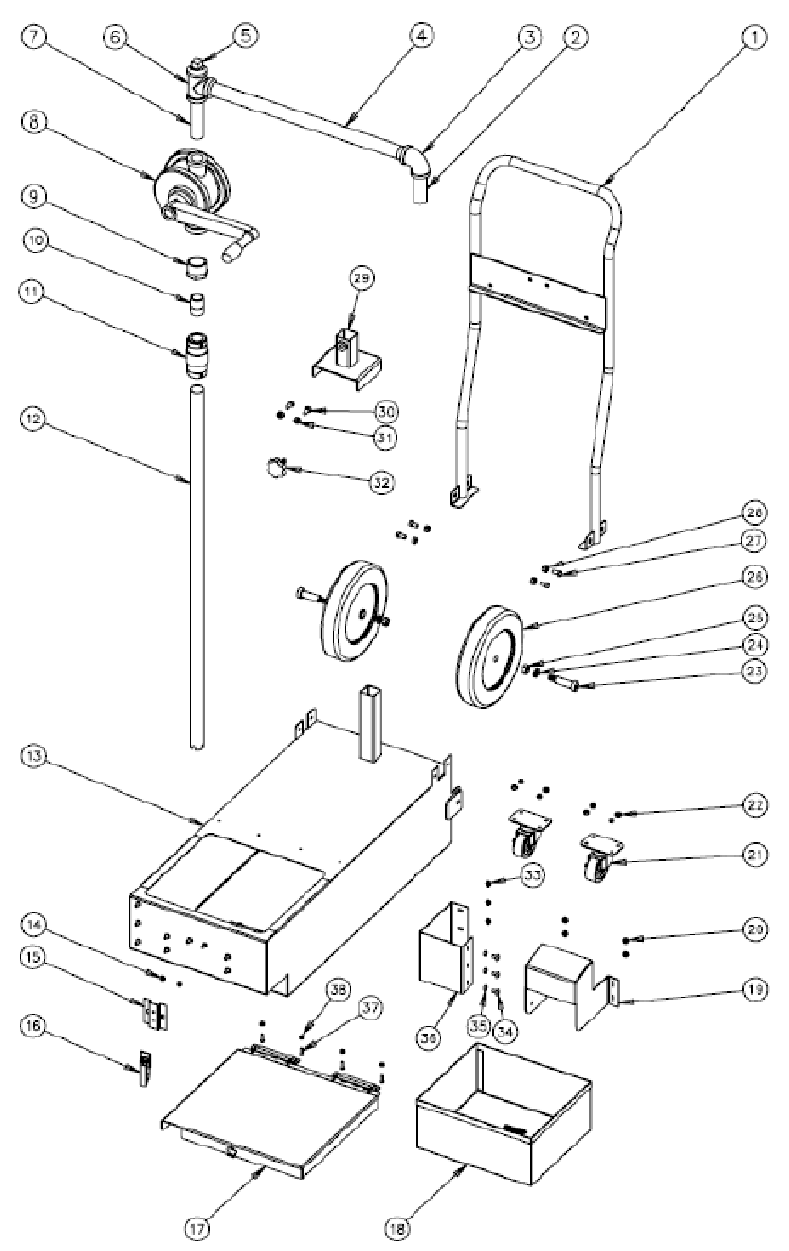

| Item No. | Part No. | Description | Qty. | Stocking Level |
|---|---|---|---|---|
| 1 | 84368 | Drain pan handle | 1 | |
| 2 | FP02-021 | Nipple, 3/4 in X 3 | 1 | |
| 3 | FP01-098 | Elbow, 3/4 in X 90, female | 1 | |
| 4 | FP02-056 | Nipple. 3/4 in X 18.25 | 1 | |
| 4* | 76583 | Silicone sleeve | 1 | |
| 5 | FP01-140 | Pipe plug, 3/4 in | 1 | |
| 6 | FP01-097 | Pipe tee, 3/4 in | 1 | |
| 7 | FP02-033 | Nipple. 3/4 in X 4 | 1 | |
| 7* | FP02-056 | Nipple, 3/4 NPT X 18.25 (for ODS 300.07 only) | 1 | |
| 8 | 72490 | Manual oil discard pump | 1 | A |
| 8 | 161034 | - Pump handle | 1 | |
| 9 | FP01-227 | Reducer, 1 in male to 3/4 in female | 1 | |
| 10 | 16282 | Close nipple, 3/4 in | 1 | |
| 11 | 21800 | Check valve, 3/4 in | 1 | A |
| 12 | 84376 | Pipe, 3/4 in, black | 1 | |
| 13 | N/A | Not orderable | N/A | |
| 14 | NS02-005 | Keps nut, 6 X 32 | 2 | |
| 15 | 83994 | Mounting hinge bracket | 1 | |
| 16 | MS01-532 | Breading machine drum latch | 1 | A |
| 17 | 84001 | Drain pan cover | 1 | B |
| 17* | 84614 | Drain pan cover seal (not included with cover) | 1 | |
| 18 | 84453 | Crumb basket | 1 | B |
| 19 | 163076 | Drain switch | 1 | B |
| 20 | NS02-006 | Hex nut, 10 X 24 | 4 | |
| 21 | 19004 | Swivel caster, 2 in. | 2 | B |
| 22 | NS02-006 | Keps nut, 10 X 24 | 8 | |
| 23 | SC06-074 | Shoulder screw, 1/2 in X 1 in X 1/2 in, 3/8 in X 16 | 2 | B |
| 24 | LW01-010 | Splitring lockwasher, 3/8 in | 2 | |
| 25 | NS01-001 | Hex nut, 3/8 in X 16 | 2 | |
| 26 | 77815 | Wheel, 8 in | 2 | B |
| 27 | SC01-057 | Hex screw, 1/4 in X 20 X 1/2 in | 4 | B |
| 28 | NS02-002 | Keps nut, 1/4 in X 20 | 4 | |
| 29 | 84481 | Locknut and pump | 1 | |
| 30 | SC01-057 | Hex screw, 1/4 in X 20 X 1/2 in | 2 | |
| 31 | NS02-002 | Keps nut, 1/4 in X 20 | 2 | |
| 32 | SC06-076 | Thumb screw, 8 X 25, black knob | 1 | |
| 33 | NS02-006 | Hex keps nut, 10 X 24 | 3 | |
| 34 | NS02-006 | Hex keps nut, 10 X 24 | 3 | |
| 35 | 158576 | Drain switch bracket | 1 | |
| 36 | SC01-113 | Screw, 6 X 32 X 9/16 in, CT | 4 | B |
| 37 | NS02-005 | Hex keps nut, 6 X 32 | 4 | B |
| Recommended Parts: A = Truck Stock; B = Dist. Stock
* = Not Shown A/R = As Required |
||||
