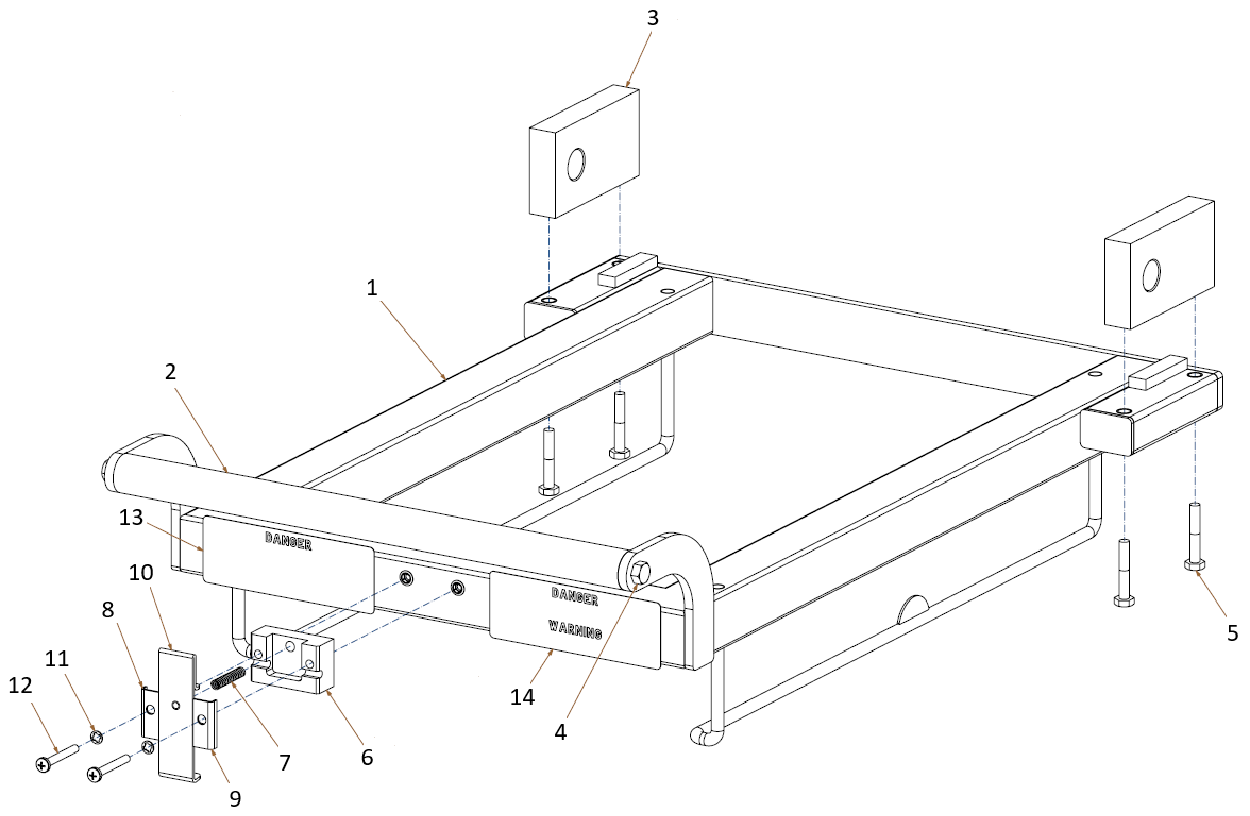

Lid Assembly
| Item No. | Part No. | Description | Qty. | Stocking Level |
|---|---|---|---|---|
| 1 | 151596 |
Lid Frame Assembly Note: The frame assembly does not include pivot blocks, lid handle, or lid latch components. Unless damaged, re-use old pivot blocks and lid handle. |
1 | |
| 1a* | 151685 | Lid Handle | 1 | |
| 1b* | 92552 | Pivot block | 1 | |
| 2* | SC01-041 | Lid handle hex screw, 1/4-20 x 1 1/2 | A/R | |
| 3* | SC01-104 | Pivot block hex screw, 5/16-18 x 1 | A/R | |
| 4* | NS03-072 | Latch hex nutsert,#10-32 | A/R | |
| 5* | LW02-005 | Latch bracket lockwasher | A/R | |
| 6* | 92710 | Lid latch block | 1 | |
| 7* | 52498 | Latch spring | 1 | |
| 8* | 92714 |
Latch bracket, left (use SC01-304 & LW02-005 for mounting) |
1 | |
| 9* | 92872 |
Latch bracket, right (use SC01-304 & LW02-005 for mounting) |
1 | |
| 10* | 153485 | Lid latch | 1 | |
| * | SC01-304 | Screw #10-24 X 1/2 PH THD | 2 | |
| * | LW02-005 | Lock washer 10 internal | 2 | |
| 11* | 168577 | Warning label, burn risk | 1 | |
| 12* | 168576 | Warning label, proper oil level | 1 | |
| * = Not Shown
A/R = As Required Recommended Parts: A = Truck Stock; B = Dist. Stock |
||||
