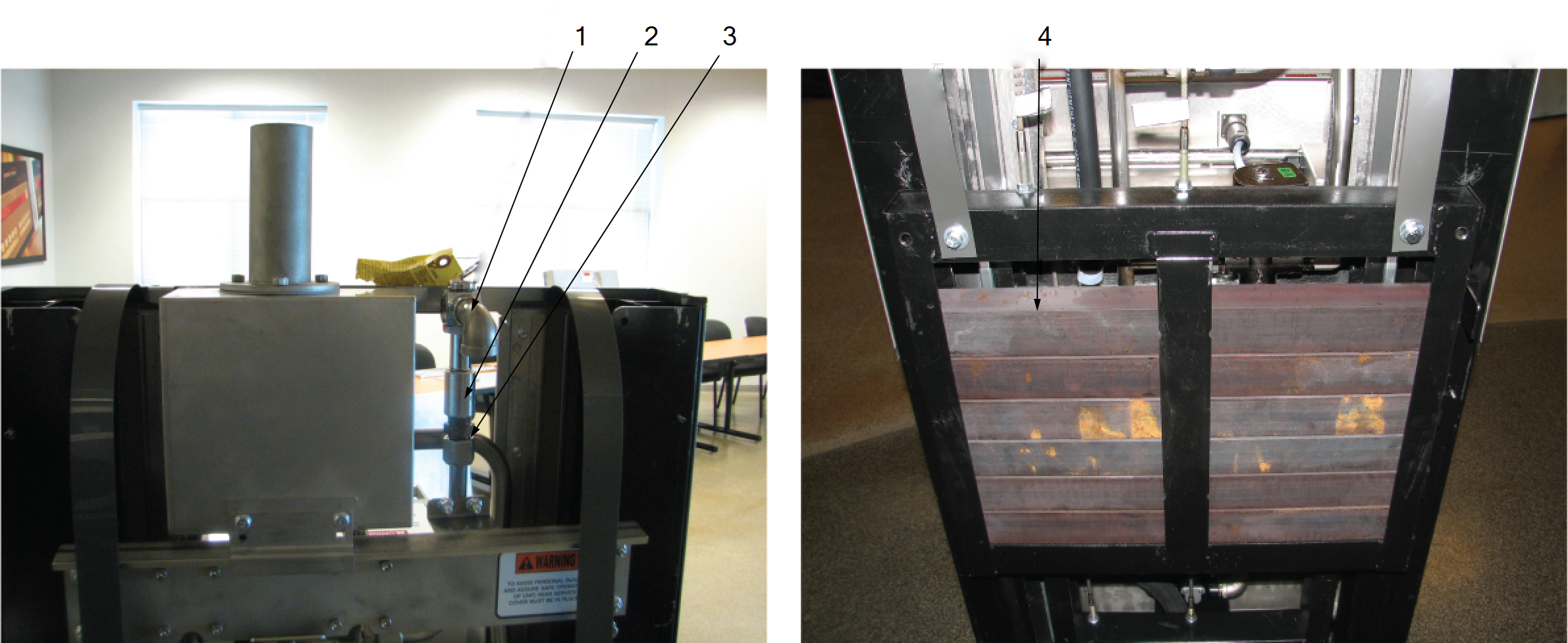

Counterweight and Safety Relief Valve
|
Item No. |
Part No. |
Description |
Qty. |
Stocking Level |
|---|---|---|---|---|
|
1 |
59742 |
Safety relief valve assembly |
1 |
A |
| 2 | FP01-066 | Coupling | 1 | |
| 3 | FP01-202 | Straight connector fitting, male | 1 | |
|
4 |
94259 |
Counterweight bar, full, 2 in (50 mm) |
A/R |
|
|
5* |
167010 |
Counterweight bar, half, 1 in (25 mm) |
A/R |
|
|
6* |
140536 |
Optional pressure gauge kit |
1 |
|
| 7* | 36626 | Counterweight frame spacer | 2 | |
| 8* | 67099 | Counterweight carriage wheels | 4 | |
| 9* | 94253 | Counterweight carriage | 1 | |
|
Recommended Parts: A = Truck Stock; B = Dist. Stock * = Not Shown A/R = As Required |
||||
