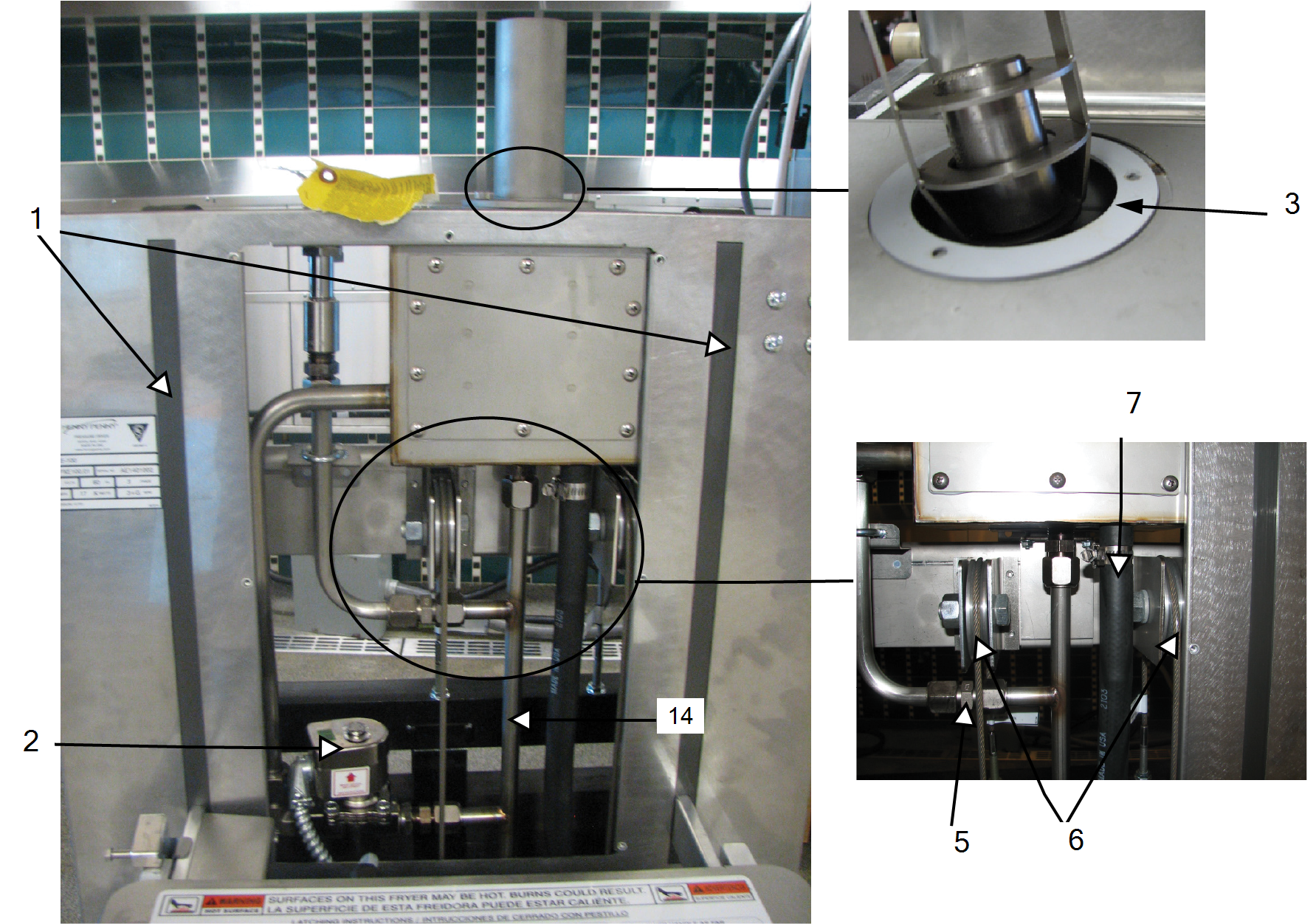

Front Top of Fryer
|
Item No. |
Part No. |
Description |
Qty. |
Stocking Level |
|---|---|---|---|---|
|
1 |
175727 |
Nylatron slide service pack |
1 |
A |
|
2 |
85145 |
Solenoid valve, 208/240 VAC 60 Hz (3/4 in) |
1 |
B |
| * | FP01-078 |
Reducer, 3/4 in. male to 1/2 in. female (Connects to input side of valve) |
1 | |
| * | 16807 |
Fitting, straight connector, male (Connects to reducer on input side of valve) |
1 | |
| * | FP01-169 | Elbow, 90° male, 3/4 in. tube, 3/4 in. NPT | 1 | |
| 2* | 179378 | - Solenoid valve repair kit (3/4 in.) | 1 | A |
| 2* | 180331 | - Solenoid coil, 208-240 VAC, 60Hz | 1 | B |
|
2 |
154282 |
Solenoid valve, 220/240 VAC 50 Hz (3/4 in) |
1 |
B |
| * | FP01-078 |
Reducer, 3/4 in. male to 1/2 in. female (Connects to input side of valve) |
1 | |
| * | 16807 |
Fitting, straight connector, male (Connects to reducer on input side of valve) |
1 | |
| * | FP01-169 | Elbow, 90° male, 3/4 in. tube, 3/4 in. NPT | 1 | |
| 2* | 179378 | - Solenoid valve repair kit (3/4 in.) | 1 | A |
| 2* | 180330 | - Solenoid coil, 240 VAC, 50Hz | 1 | B |
|
3 |
94941 |
Dead weight holder gasket |
1 |
|
|
4* |
SC06-093 |
Knurl cross tip screw, 10-32 x 1/2 in |
3 |
|
| 5 | FP01-202 | Straight connector fitting, male | 1 | |
| 6 | 35962 | Lid cable pulley | 2 | |
|
7 |
94377 |
Steam box condensate hose |
1 |
|
| 8* | See Filter Pump and Motor Assembly | |||
| 9* | FP01-169 | Solenoid valve outlet elbow, 3/4 NPT x 3/4 tube | 1 | |
| 10* |
140610 |
Lid cable kit |
1 |
C |
| 11* | FP01-169 |
Right angle fitting (elbow for solenoid valve) |
1 | |
| 12* | FP01-078 | Male-to-female reducer fitting | 1 | |
| 13* | 16807 |
male-to-male fitting (inlet fitting for solenoid valve) |
1 | |
| 14 | 94371 | Steam box manifold tube | 1 | |
| 15* | FP01-011 | Pipe tee, 1/2 NPT, SS | 1 | |
| 16* | FP01-004 | Pipe plug, 1/2 hex, SS | 1 | |
| 17* | 151892 | Shroud access panel | 1 | |
| 18* | SC01-034 |
Screw #8-32 X 3/8 PH THD (access panel mounting screws) |
A/R | |
|
Recommended Parts: A = Truck Stock; B = Dist. Stock * = Not Shown |
||||
