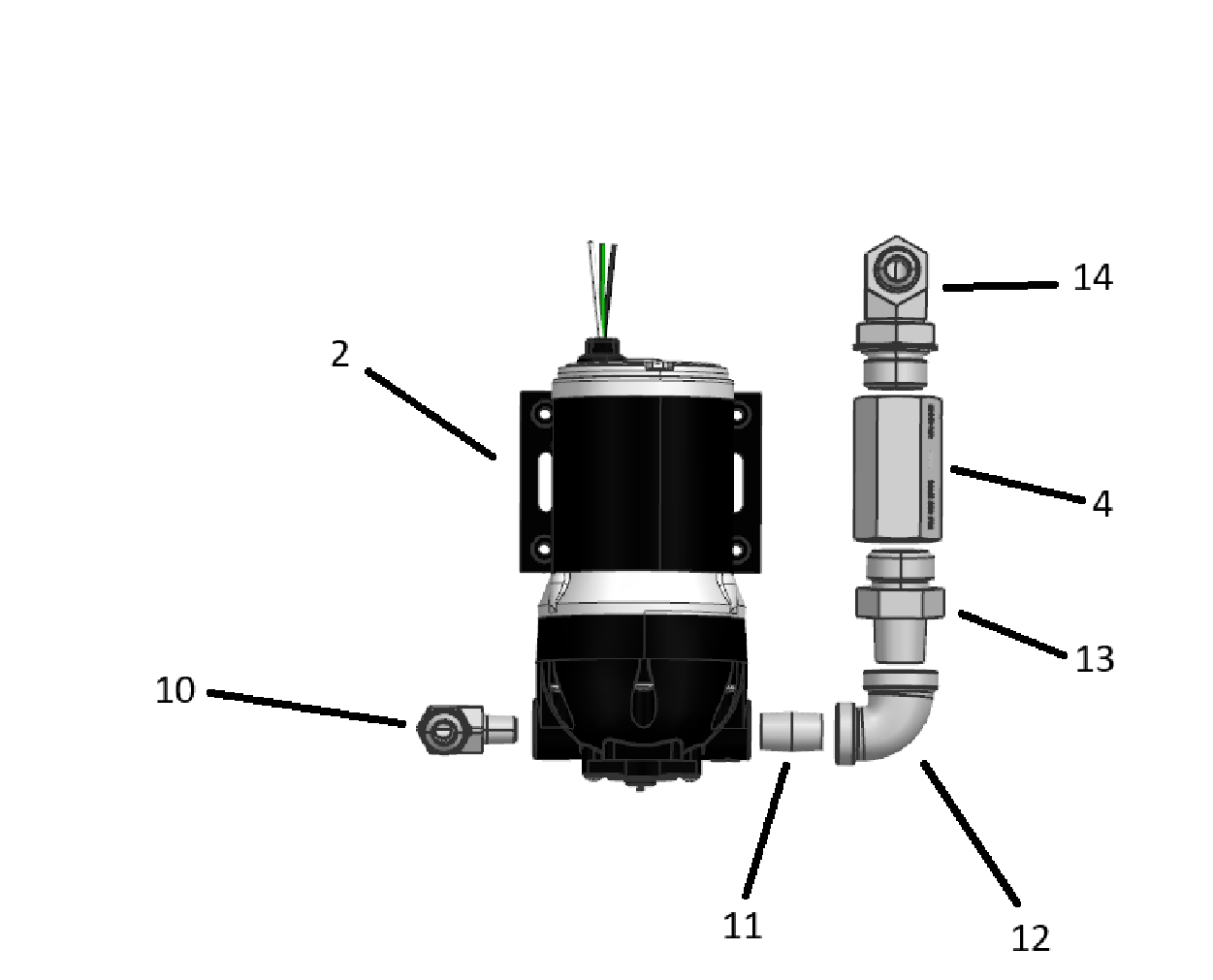

Plumbing Assemblies

Item No.	Part No.	Description	Model410	Model420	Stocking Level
1		See Filter Pump and Motor Assembly	1	1
2	97601	JIB pump retrofit service pack, 208-240 VAC (before 05/2015)	1	1
2	153417-002	JIB pump, 208-240 VAC (after 05/2015)	1	1	A
3	154048	220-240V 1/2 in. NPT solenoid valve	2	3	A
4	90506-001	3 PSI SAE 12 check valve	4	5	A
5	80148	Drain switch w/ boot	1	1	A
6*	140276	Rear guard kit	1	-
6*	140277	Rear guard kit	-	1
7*	93323	Rear plumbing guard	-	1
8*	163684	JIB box assembly	1
8*	157890	JIB box assembly	-	1
9*	140769	SVC - PTFE solenoid valve rebuild kit	A/R	A/R	A
10	FP01-239	Elbow, 90 degree, 3/8 NPT, 45 flare	1	1
11	FP02-001	Nipple, 3/8, close	1	1
12	FP01-001	Elbow, reducing 1/2 to 3/8	1	1
13	FP01-256	Fitting, 12 SAE, 1/2 NPT	1	1
14	FP01-254	Elbow, 90 degree, 12 SAE, 45 flare	1	1
Recommended Parts: A = Truck Stock; B = Dist. Stock * = Not Shown

Flex Oil Lines

Part No.	Length	Model410	Model420
77523-003	24 in.	2*	1*
77523-005	36 in.	-	1*
77523-008	7 in.	2*	-
77523-009	13 in.	-	1*
77523-011	10 in.	1*	2*
* = Not Shown

The parts descriptions listed have been modified to reduce mis-ordered parts. Be aware when ordering, the part description may differ. To verify the correct part when ordering, ensure the part number matches the part number listed here.
