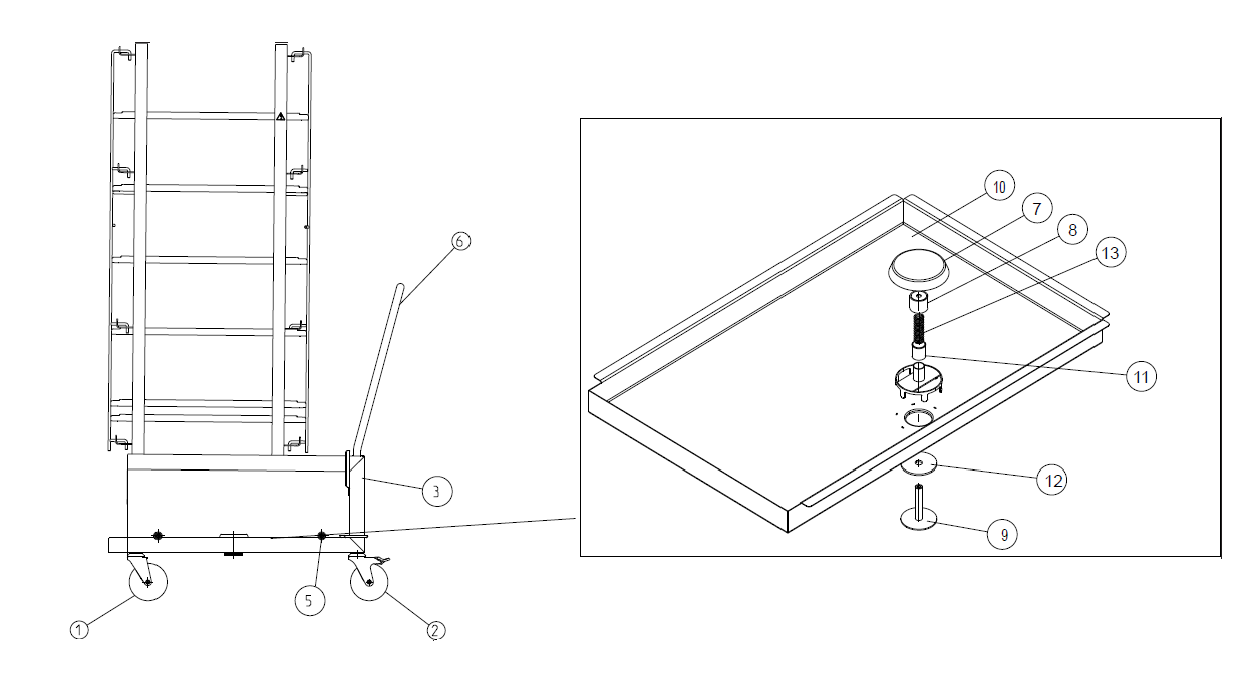

Trolley Assembly

Item No.	Part No.	Description	Qty.
1	MM10018274	Trolley caster w/o brake	2
2	MM10018276	Trolley caster w/ brake	2
3	MM10028975	Trolley assembly	1
5	MM10035707	Kit-Trolley Bearing, 26 mm diameter Note: In case of bearing failure, replace all 4 bearings. Additionally, replace all 4 bearings when replacing older version bearings.	4
6	MM10018233	Trolley handle	1
7	MM10016973	Fresh air inlet cover	1
8	MM10032418	Outer bushing	1
9	MM10032419	Quick release valve	1
10	MM10032417	Trolley pan	1
11	MM10032430	Bushing, 23 X 20 - 25mm	1
12	MM10032436	Flat ring seal, 60mm	1
13	MM10032438	Pressure spring	1

The parts descriptions listed have been modified to reduce mis-ordered parts. Be aware when ordering, the part description may differ. To verify the correct part when ordering, ensure the part number matches the part number listed here.
