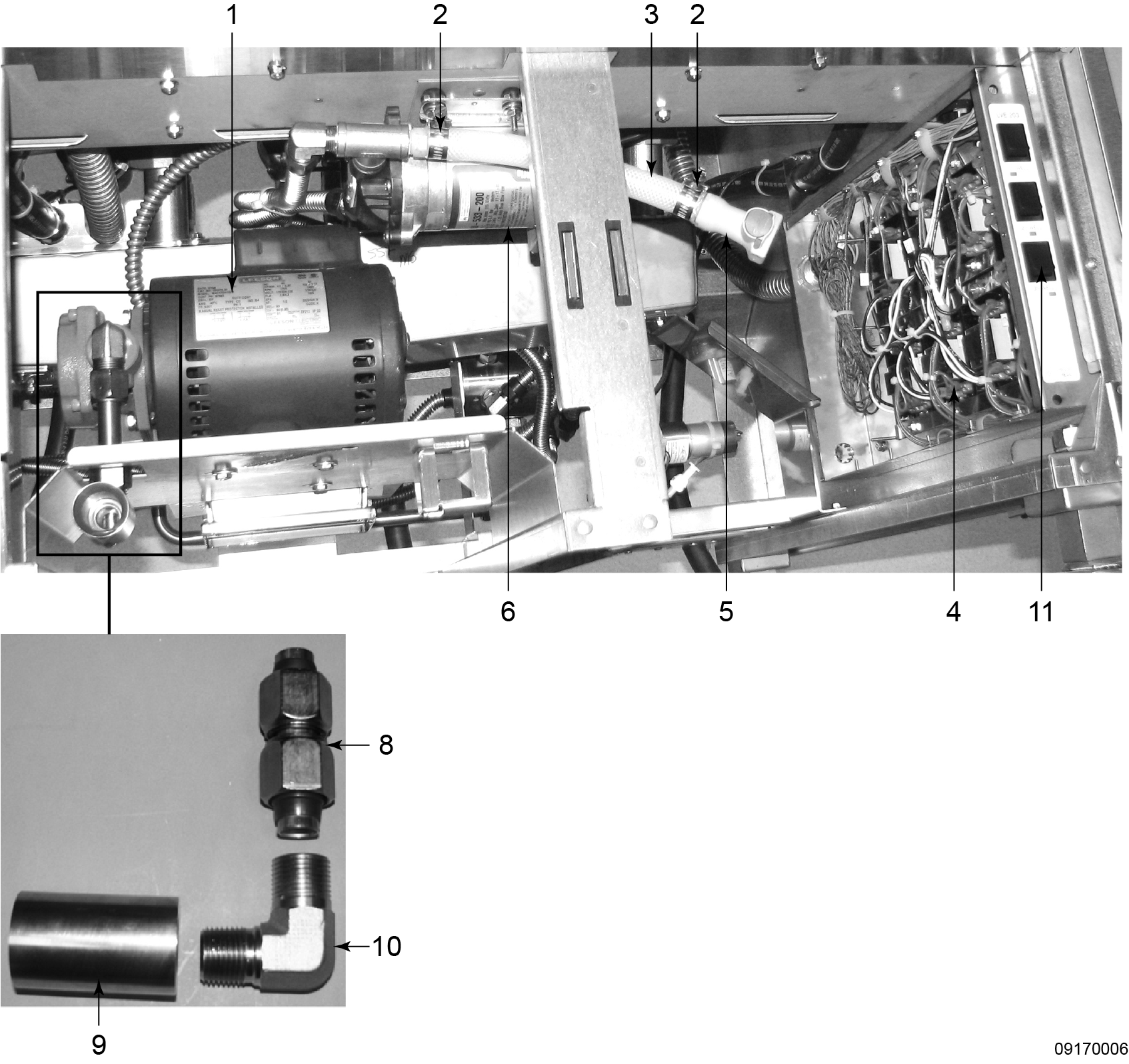

Oil Top Off Pump, High Limit Modules, and Pump Motor Inlet Assembly
| Item No. | Part No. | Description | Qty. | Stocking Level |
|---|---|---|---|---|
1 | See Filter Pump and Motor Assembly |
| ||
2 | Hose clamp | 2 |
| |
3 | Hose | 1 | B | |
4 | Service Pack - Single high limit control, 120 VAC, 575°F - Gen 1, Silver Sticker (Before 12/2020) | A/R | A | |
4 | Service Pack - Single high limit control, 230 VAC, 575°F - Gen 1, Yellow Sticker (Before 12/2020) | A/R | A | |
| 4 | 175915-006 | Service Pack – Dual high limit control, 100-240 VAC, 575°F - Gen 1, Green Sticker (After 12/2020) - Gen 2, Black Circle (After 08/2022) Note: Dates are production implementation dates. Gen 2 is newest design. - Gen 2 can replace a Gen 1 - Gen 1 cannot replace a Gen 2 | A/R | A |
5 | FP05-016 | Quick disconnect, ½ in | 1 | B |
6 | JIB pump retrofit service pack, 120 VAC (Before 5/2015) for 208v fryers | 1 | ||
6 | 153417-001 | - JIB pump, 120 VAC (After 5/2015) for 208v fryers | 1 |
A |
6 | JIB pump retrofit service pack, 208-240 VAC (Before 5/2015) for 230v/240v fryers | 1 | ||
6 | - JIB pump, 208-240 VAC (After 5/2015) for 230v/240v fryers | 1 |
A | |
| 7a* | FP01-228 | Barbed fitting, 1/2 in hose, 3/8 NPT, Nylon | 1 | |
| 7b* | FP02-077 | Close nipple, 3/8 NPT, Nylon | 1 | |
8 | Filter inlet tube assembly | 1 |
| |
9 | Tube end connector | 1 |
| |
10 | Elbow connector, ½ in | 1 |
| |
11 | High limit reset switch, N/O (Before 12/2020) | A/R | A | |
| 11 | 157360 | High limit reset switch, N/C (After 12/2020) | A/R | A |
Recommended Parts: A = Truck Stock; B = Dist. Stock A/R = As Required | ||||
